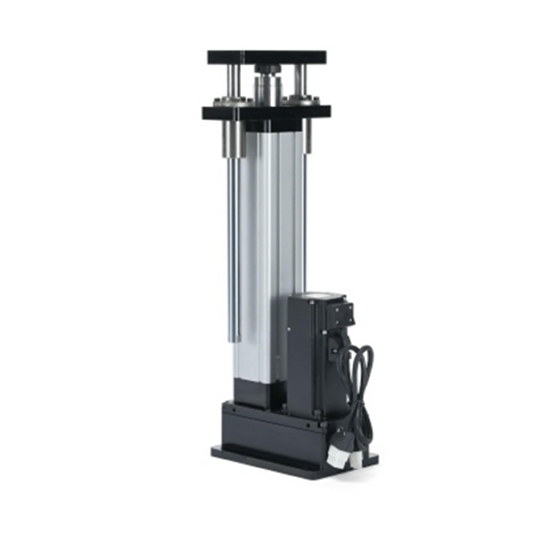

1500W Linear Servo Motor, 7.16Nm, 31.8kN, 1500mm

5 out of 5 based on 1 reviews | Write a review

$3,305.66

1.5kW linear servo actuator with rated voltage 220V, max. stroke 1500mm , rated torque 7.16 Nm, rated thrust 21.2 kN, maximum thrust up to 31.8 kN, two connections for selection. High speed linear servo motor is widely used in the paper industry, chemical industry, automobile industry, electronics industry, mechanical automation industry, welding industry, etc.

Structure Type *
Installation Method *
Rod End Connection *

SKU: ATO-SERVO-L1500w

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

Lower price linear cylinder with reduction ratio 2:1, lead 10mm, rated linear speed 177.67mm/ s, maximum linear speed can up to 288.78mm/ s.

Specification

Model	ATO-EDA080-1500W
Rated power	2hp (1.5KW)
Rated voltage	220V
Structure type	In-line/ Reentrant
Lead	10mm
Reduction ratio	2:1
Rated speed	3000 rpm
Max. speed	5000 rpm
Rated torque	7.16 Nm
Rated thrust	21.2 kN
Rated linear speed	177.67mm/s
Max. thrust	31.8 kN
Max. linear speed	288.78mm/s
Max. stroke	1500mm
Diameter	25mm
Inductive switch	Magnetic induction, PNP, 2NO (Please contact us for other switches)
Motor brand	Japan
Pressure sensor	Not include (50kg/100kg/200kg/300kg/400kg/500kg/600kg/800kg/900kg/1T/2T can be customized, please contact us if necessary)
Weight	96kg
Certificate	CE
Warranty	12 months

Dimension (unit=mm)

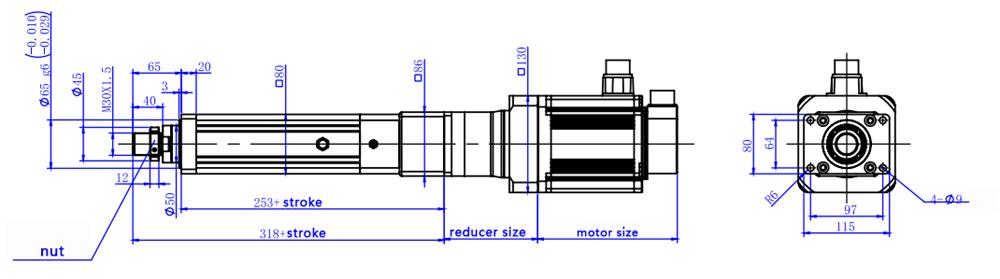

In-line

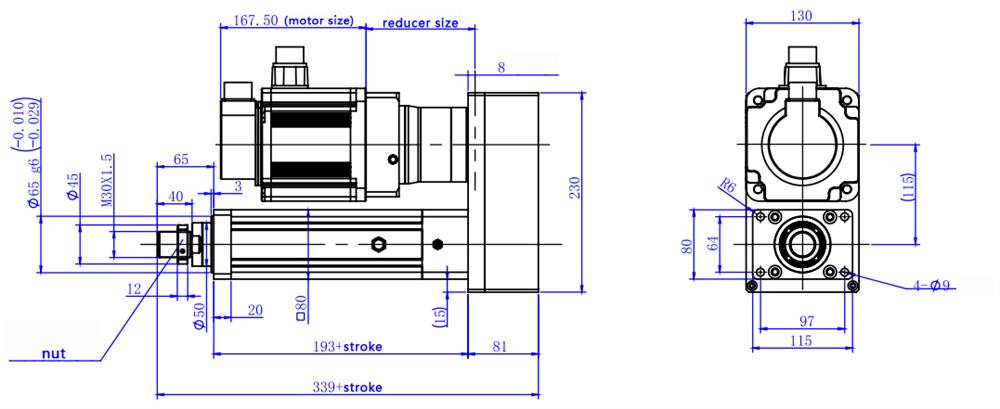

Reentrant

Details

Tips: Features of Linear Servo Motor.

High reliability and safety: the linear servo motor can be equipped with advanced sensor systems and various stroke control devices to detect and feedback the working status of the electric cylinder to prevent accidents.
Stable operation and long service life. When the actuator cylinde adopts a ball screw or planetary roller screw, the friction of the transmission part will be greatly reduced, which is beneficial to reduce material wear, improve operation stability, and extend service life.
Fast response, linear working speed can be adjusted in a wide range of speed, stable operation at low speed. The working speed of hydraulic cylinders can generally only reach 35mm/s, but the working speed of ordinary electric cylinders can generally reach 55mm/s. The speed of the electric cylinder using the planetary roller screw can even reach 2000 mm/s, and the speed advantage is very obvious. In addition, hydraulic cylinders are prone to crawling at low speeds and heavy loads, while electric cylinders do not have this disadvantage.

This video briefly shows the application of the ATO servo system in a linear slide.

VFD Two-Wire Control Wiring with Push Button for Forward Motor

In this video we've guided you through how to do VFD control wiring with a self-lock push button switch to run the motor in forward direction. We've covered everything from wiring to programming and even a test run. So just watch it through and hope you'll find it informative and helpful.
