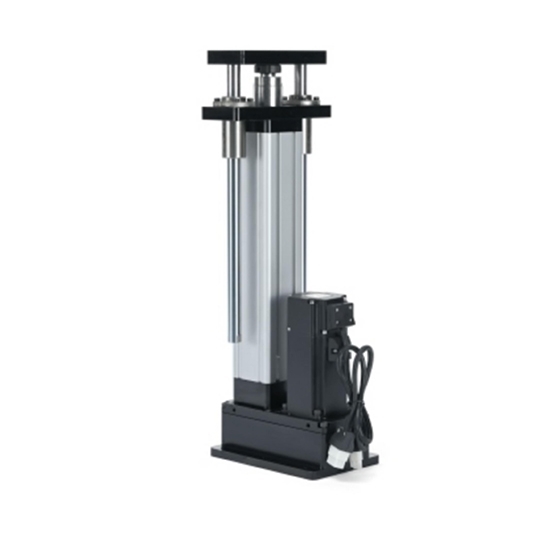

1kW Linear Servo Motor, 3.18Nm, 34.8 kN, 1500mm

5 out of 5 based on 2 reviews | Write a review

$3,197.46

Good price linear servo motor with rated voltage 220V, 1000W rated power, reduction ratio 4, rated torque 3.18 Nm, rated thrust 23.2 kN, max. thrust 34.8 kN, max. stroke 1500mm, diameter 25mm. Linear servo actuator is widely used in the paper industry, chemical industry, automobile industry, electronics industry, mechanical automation industry, welding industry, etc.

Structure Type *
Installation Method *
Rod End Connection *

SKU: ATO-SERVO-L1000

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

1000 watt linear cylinder with rated voltage 220 volt, in-line/ reentrant two connections can be chosen, which features 3000 rpm rated speed, 179.67mm/ s rated linear speed.

Specification

Model	ATO-LSM-EDA080-1000W
Rated power	1 kW
Rated voltage	220V
Structure type	In-line/ Reentrant
Lead	10mm
Reduction ratio	4:1
Rated speed	3000 rpm
Max. speed	5000 rpm
Rated torque	3.18 Nm
Rated thrust	23.2 kN
Rated linear speed	179.67mm/s
Max. thrust	34.8 kN
Max. linear speed	290.78mm/s
Max. stroke	1500mm
Diameter	25mm
Inductive switch	Magnetic induction, PNP, 2NO (Please contact us for other switches)
Motor brand	Japan
Pressure sensor	Not include (50kg/100kg/200kg/300kg/400kg/500kg/600kg/800kg/900kg/1T/2T can be customized, please contact us if necessary)
Weight	94kg
Certificate	CE
Warranty	12 months

Dimension (unit=mm)

In-line

Dimension of in line type linear servo motor

Reentrant

Dimension of reentrant type linear servo motor

Details

Tips: Features of Linear Servo Motor.

Due to its unique performance characteristics, linear servo motor have been gradually promoted and used in many industrial occasions.
1. Energy saving, clean, long life, simple operatio and strong environmental adaptability. The actuator cylinde is not easily affected by the ambient temperature, and can work normally without failure in harsh environments such as low, high temperature, rain and snow. The protection level can reach IP66. The seal prevents dirt and water pollution outside the cylinder and prevents leakage of internal lubricant. It works for a long time, and achieves high strength, high speed, high precision positioning, smooth movement and low noise.
2. High transmission efficiency: the linear servo actuator with precision transmission components such as precision ball screw or planetary roller screw saves a lot of complicated mechanical structures, and its transmission efficiency is greatly improved. The transmission efficiency of these types of electric cylinders can reach more than 90%.

Existing reviews of 1kW Linear Servo Motor, 3.18Nm, 34.8 kN, 1500mm

Can it communicate with your servo motor with CAN 2.0B?

Is it possible to communicate with your controllers with regular CAN protocol CAN 2.0B? Thank you for your quick response. We only have CAN I/O’s suitable for CAN 2.0B, for CAN open protocol other I/O’s are needed which we don’t have.
I don’t need to customize the CAN communication but as I cannot work with CAN open. Is it possible to communicate with your controllers with regular CAN protocol CAN 2.0B?

From: carver | Date: 05/04/2023

Was this review helpful? Yes No (0/0)

ATO Responded

Unfortunately, our brushless motor controllers do not provide regular CAN protocol CAN 2.0B communication. (also ATO-GEAR-P200)

High performance 1kw linear servo motor!

The linear sevo motor I bought last time in other website is so noisy that I had to change it. After finding 30 mins, I finally choose ATO. The 1kw electric linear servo motor of high speed and high torque. Works as advertised!!! It’s fast enough for my application.

From: zyc | Date: 17/05/2022

Was this review helpful? Yes No (0/0)
