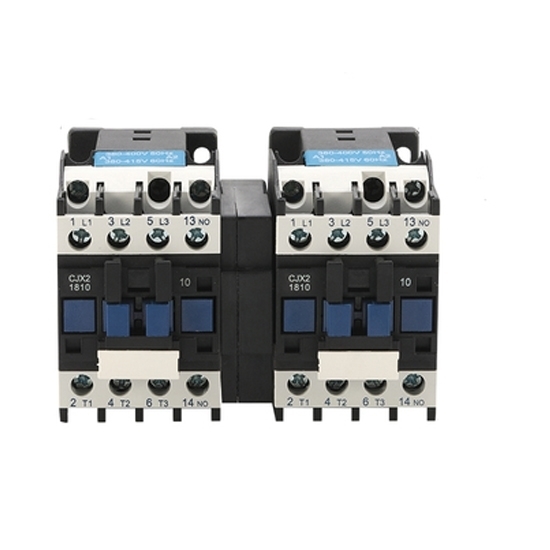

    18 amp Mechanical Interlock AC Contactor

    5 out of 5 based on 1 reviews | Write a review
    $71.99
    Low price 18 amp 3 pole/ 4 pole mechanical interlocking AC contactor with coil rated voltage from 24V AC to 380V AC is an electrically controlled switch constructed with a mechanical interlock and two revering contactor, which is used for controlling AC electric motors.
    *
    *
    SKU: ATO-ACCON-18N
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    4 pole mechanical interlocking AC contactor can save electric energy and eliminate power frequency noise at 24V AC to 380V AC coil rated voltage. It is a mechanical system that has simple structure and easy mounting to control circuit.

    Specification

    Model ATO-CJX2-18N
    Rated Operational Current 380V AC-3 18A
    AC-4 7.7A
    660V AC-3 12A
    AC-4 3.8A
    Conventional Heating Current 32A
    Rated Insulation Voltage 690V
    Power of Controllable 3-phase Squirrel-cage Motor (AC-3) 220V 4kW
    380V 7.5kW
    660V 10kW
    Operational Frequency Electric Life AC-3 1200 times/h
    AC-4 300 times/h
    Mechanical Life 3600 times/h
    Service Life Electric Life (104 Operations) AC-3 100
    AC-4 20
    Mechanical Life (104 Operations) 1000
    Matching Fusing Model RT16-25
    Average Power Consumption (20℃) @ 50Hz Pick-up 76VA
    Holding 9.4VA
    Contact Form (Optional) 3P (Additional 1NO Auxiliary Contact) or 4P
    Rail Size 35mm
    Ambient Temperature -5℃~+40℃
    Altittude ≤2000m
    Class of Pollution Class 3
    Installation Category
    Dimensions 138 x 76 x 87mm
    Weight 1kg

    Tips: What is a mechanical interlock?

    Mechanical interlock is when one AC contactor is opened and the coil power supply of the other contactor is disconnected to achieve the purpose of interlock. Generally, mechanical interlocking uses the auxiliary contacts of the contactor to achieve the purpose of interlocking. When one contactor is connected, the coil power supply circuit of the other contactor is cut off. Mechanical interlocking is to achieve interlocking through mechanical components. For example, two contactors cannot be closed at the same time. A mechanical lever can be used to make one contactor close when the other contactor is mechanically stuck and cannot be closed. Electrical interlocking is relatively easy to implement, flexible and simple, and the two interlocking devices can be installed in different positions. Mechanical interlock is more reliable, and there is no need to worry about misoperation, but it is more complicated and sometimes impossible to achieve. The two interlocking devices are usually installed in close proximity.
