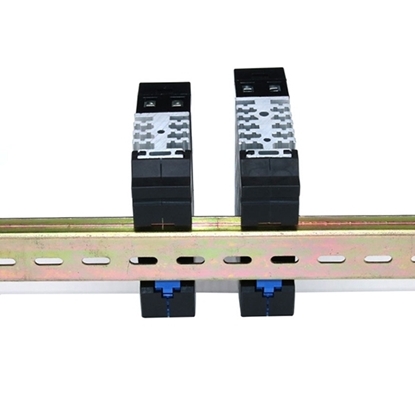

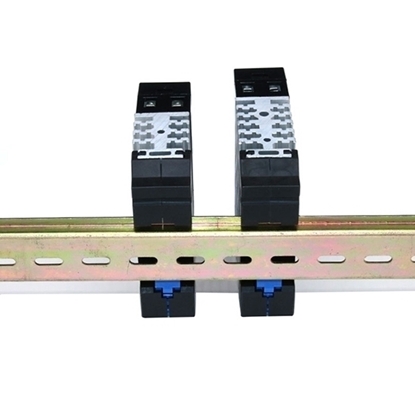

    60A SSR Solid State Relay, 3-32V DC to DC, Din Rail Mount

    $77.53
    SSR-60A with din rail mount, 3-32V DC to DC, Single phase solid state relay products, with fast switching speed, no spark, no noise, no electromagnetic interference, long service life, no electric shock, strong anti-interference, strong compatibility.
    SKU: ATO-SSR-DS60DD
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Features

    60Amps single phase solid state relay is specially designed for harsh environments with corrosion, humidity or light-proof/explosion-proof requirements and frequent turn-on/off requirements. It is ideal for automatic process control application and other machinery control system. It is usually used in situations where precise control of current and voltage is required, but high current is not required like industrial large-scale applications, such as some specific industrial equipment and household appliances.

    • Exquisite workmanship
    • Photoelectric isolation
    • SSR output
    • LED indicator for operation status
    • Removable protective cover for safety
    • Panel mount
    • Zero-crossing switch type

    Specification

    Model ATO-SSR-DS60DD
    Voltage Type DC-DC
    Load Current 60A
    Load Voltage 3-75V DC
    Control Voltage 3-32V DC
    Max Input Current 12mA
    Must Operation Voltage 2.8V DC
    Must Release Voltage 1.5V DC
    Max On-stage Voltage Drop ≤0.2V
    Peak Voltage 75V DC
    Operation Temperature -20℃ to 80℃
    Max Off-state Leakage Current 12mA
    Dielectric Strength 2500V
    Weight 245g
    Certificates CE, ROHS


    Dimension

    50A 60A 80A demension

    Wiring Diagram

    An example wiring diagram

    Tips: Locations where solid state relays can be applied

    Specialized solid state relays can have short circuit protection, overload protection and overheat protection, and can be packaged with a combination of logic curing to implement the user's desired intelligent module for direct use in control systems.

    Solid state relays have been widely used in computer peripheral interface devices, electric furnace heating thermostat system, CNC machinery, remote control systems, industrial automation devices; signal lights, blinkers, lighting stage lighting control systems; instruments, medical equipment, copiers, automatic washing machines; automatic fire fighting, security systems, and as power factor compensation of the grid power capacitor switching switch, etc., in addition in the chemical industry, coal mines, etc. In addition, in the chemical industry, coal mines and other need explosion-proof, moisture-proof, anti-corrosion occasions are used in large quantities.
