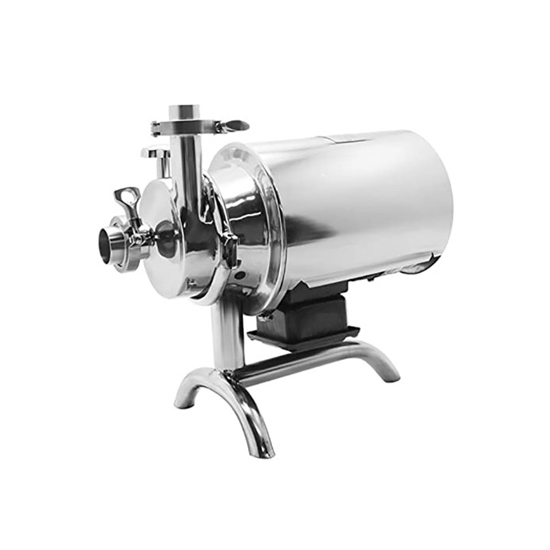

    4hp (3kW) Stainless Steel Centrifugal Pump

    5 out of 5 based on 1 reviews | Write a review
    $1,124.76
    Cost-effective stainless steel centrifugal pump with rated power 4hp (3kW), rated voltage 3-phase 380V, three kinds of accessories for selection. It has the advantages of wide range of performance, small size, simple structure, easy operation, low operating cost, etc.
    *
    SKU: ATO-BAW-165
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Stainless steel sanitary pump with 15t/ h flow rate, 24m lift (water column), 51mm inlet/ outlet size. It is widely used in food, beverage, pharmaceutical, biological engineering, water treatment, daily chemical, petroleum and chemical industries.

    Specification

    Model BAW-165
    Rated power 4hp (3kW)
    Rated voltage 380V
    Phase 3 phase
    Accessories Clamp + gasket + quick connector/ Clamp + gasket + sanitary hose joint/ Union
    Flow rate 15t/ h
    Lift (water column) 24m
    Inlet/ outlet size 51mm
    Outer size L580mm*W270*H400m
    Weight 45kg
    Warranty 12 months

    Dimension

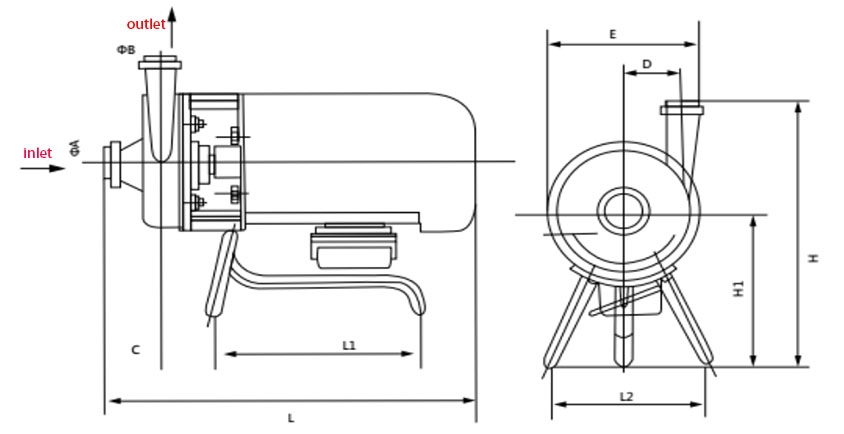

    Dimension of stainless steel centrifugal pump

    Model Mounting dimensions (mm)
    A B C D E L L1 L2 H H1
    BAW-165 51 51 95 75 250 600 400 220 450 255

    Product information

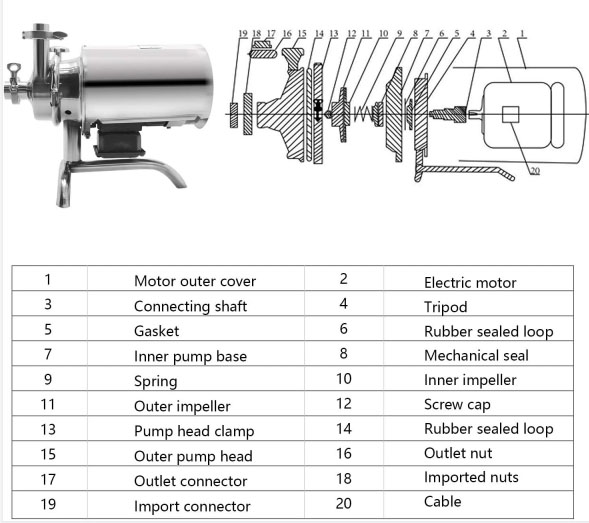

    Product information of centrifugal pump



    Tips: Differences of Stainless Steel Centrifugal Pump and Self-priming Pump.
    1. Different composition: the former is composed of 6 parts, and the latter is composed of 5 parts.
    2. The starting method is different: the former fills the water inlet pipe and the pump body with water or draws out the air from the water inlet pipe, and the latter adds start-up circulating water to the pump body.
    3. The device is different: the former needs a bottom valve and a suction device at the outlet of the water inlet pipe, while the latter needs a filter.
    4. Different using: the former is liquid conveying, with a large flow rate and field control range, while the latter can change water into spray, with stable operation and convenient maintenance.

    Different types of centrifugal pumps

    This video explains different types of centrifugal pumps that can be selected according to one's own needs.

    Principles and functionality explained

    This video tells us what a centrifugal pump is and its working principle, and you will have a general understanding of it.

    Components of centrifugal pumps

    This video is an explanation of the components of a centrifugal pump, and we can learn the basic knowledge of the eight components of a centrifugal pump from it.
