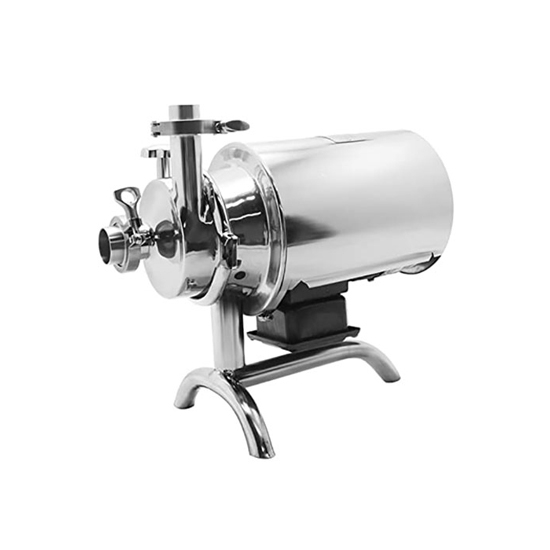

    2hp (1.5kW) Stainless Steel Centrifugal Pump

    5 out of 5 based on 1 reviews | Write a review
    $746.98
    2hp ss centrifugal pump with rated voltage 1-phase 220V/ 3-phase 380V, 5t/ h flow rate. The stainless steel centrifugal pump is widely used in food, beverage, pharmaceutical, biological engineering, water treatment, daily chemical, petroleum and chemical industries.
    *
    *
    SKU: ATO-BAW-150
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Stainless steel sanitary pump with 1.5kW, which features 18m lift (water column), clamp + gasket + quick connector/ clamp + gasket + sanitary hose joint/ union three kinds of accessories for selection.

    Specification

    Model BAW-150
    Rated power 2hp (1.5kW)
    Rated voltage 220V/ 380V
    Phase 1 phase/ 3 phase
    Accessories Clamp + gasket + quick connector/ clamp + gasket + sanitary hose joint/ Union
    Flow rate 5t/ h
    Lift (water column) 24m
    Inlet/ outlet size 38mm
    Outer size L500mm*W260*H370m
    Weight 35kg
    Warranty 12 months

    Dimension

    Dimension of stainless steel centrifugal pump

    Model Mounting dimensions (mm)
    A B C D E L L1 L2 H H1
    BAW-150 38 38 85 50 200 510 350 180 355 200

    Product information

    Product information of centrifugal pump



    Tips: How to Install Stainless Steel Centrifugal Pump?
    1. The surface of the installed base must be flat, clean and find a place which can able to bear the corresponding load.
    2. Use anchor bolts where it needs to be fixed.
    3. For pumps installed vertically, the anchor bolts must have sufficient strength.
    4. If installed vertically, the motor must be located above the pump.
    5. When fixing on the wall, pay attention to aligning and centering.

    Different types of centrifugal pumps

    This video explains different types of centrifugal pumps that can be selected according to one's own needs.

    Principles and functionality explained

    This video tells us what a centrifugal pump is and its working principle, and you will have a general understanding of it.

    Components of centrifugal pumps

    This video is an explanation of the components of a centrifugal pump, and we can learn the basic knowledge of the eight components of a centrifugal pump from it.

    Existing reviews of 2hp (1.5kW) Stainless Steel Centrifugal Pump
    2 hp stainless steel centrifugal pump runs quietly
    Compared with other centrifugal pumps, this 2 hp stainless steel centrifugal pump runs quietly and protects our ears when in use. It is recommended to buy.
    From: Sheriwyn | Date: 26/10/2021
    Was this review helpful? Yes No (0/0)
    Load more reviews...
