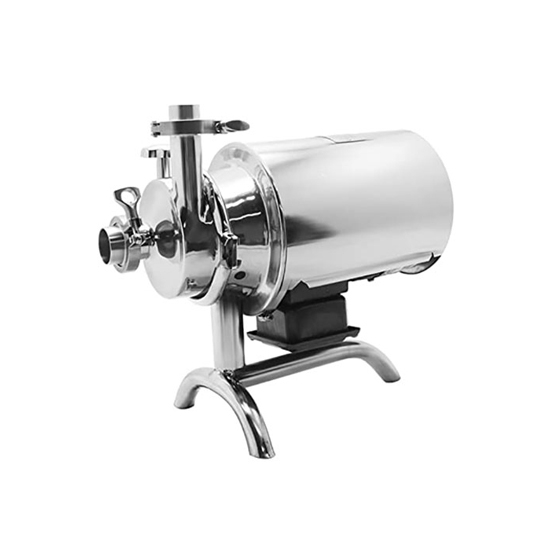

1hp (0.75kW) Stainless Steel Centrifugal Pump

5 out of 5 based on 2 reviews | Write a review

$489.84

Lower cost stainless steel sanitary pump with rated power 750W, rated voltage 1-phase 220V/ 3-phase 380V, clamp + gasket + quick connector/ clamp + gasket + sanitary hose joint/ union three kinds of accessories for selection. The centrifugal pump has the advantages of wide range of performance, small size, simple structure, easy operation, low operating cost, etc.

Voltage *
Product Accessories *

SKU: ATO-BAW-120

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

1hp stainless steel centrifugal pump for sales, which with 3t/ h flow rate, 18m lift (water column). The ss centrifugal pump is widely used in food, beverage, pharmaceutical, biological engineering, water treatment, daily chemical, petroleum and chemical industries.

Specification

Model	ATO-BAW-120
Rated power	1hp (0.75kW)
Rated voltage	220V/ 380V
Phase	1 phase/ 3 phase
Accessories	Clamp + gasket + quick connector/ clamp + gasket + sanitary hose joint/ Union
Flow rate	3t/ h
Lift (water column)	18m
Inlet/ outlet size	38/ 32mm
Outer size	L420mmW220H320m
Weight	22kg
Warranty	12 months

Dimension

Model	Mounting dimensions (mm)
Model	A	B	C	D	E	L	L1	L2	H	H1
BAW-120	38	32	55	42	190	450	300	170	310	190

Product information

Tips: Working Conditions of Stainless Steel Centrifugal Pump.

Thin, clean, non-condensing, non-explosive, liquid without solid particles or fibers.
Liquid temperature: Normal temperature type -15°C to +70°C, hot water type +70°C to +110°C.
Maximum ambient temperature: +40℃.
Maximum operating pressure: 10 bar, the maximum inlet pressure is limited by the maximum operating pressure.
Medium acidity and alkalinity: PH4~9.

Different types of centrifugal pumps

This video explains different types of centrifugal pumps that can be selected according to one's own needs.

Principles and functionality explained

This video tells us what a centrifugal pump is and its working principle, and you will have a general understanding of it.

Components of centrifugal pumps

This video is an explanation of the components of a centrifugal pump, and we can learn the basic knowledge of the eight components of a centrifugal pump from it.
