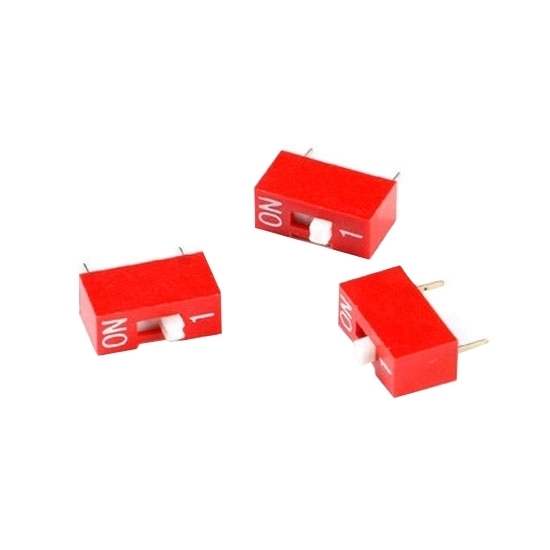

    1 Position DIP Switch, 2 Pin, SPST

    5 out of 5 based on 2 reviews | Write a review
    $9.09
    Low price 1 position 1 way DIP switch with 2 pins is an electromechanical device to make manual changes to an electronic circuit. This micro SPST DIP switch is commonly mounted on a PCB, breadboard or motherboard.
    *
    SKU: ATO-DIP-1P
    This product has a minimum quantity of 10
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Single position 2 bit electronic DIP switch is a simple and small component which can be mounted directly on a circuit board. You can use the tip of a pencil to open or close the circuit.

    Specification

    Model ATO-DIP-1P
    Number of Switch 1
    Number of Pin 2
    Maximum Operating Force 8N
    Push Button Stroke 2mm
    Operating Temperature -20℃~+70℃
    Storage Temperature -40℃~+85℃
    Contact Resistance Initial Value: 50MΩ, After Test: 100MΩ
    Insulation Resistance 100MΩ, 500VDC
    Compressive Strength 500VAC/1min
    Interpolar Capacitance 5pF
    Loop SPST (Single Pole Single Throw)
    Electrical Life Tested under voltage 24V DC and current 25mA, it can be dialed back and forth about 2000 times
    Rated Current Does not Switch Frequently 10mA, Withstand Voltage 50V DC
    Switch Frequently 25mA, Withstand Voltage 24V DC
    Weight 0.1kg

    Dimensions (Unit: mm)

    Dimensions of 1 Position 2 Pin SPST DIP Switch

    Tips: What is a DIP switch?

    As a kind of micro switch that needs to be operated manually, the DIP switch is widely used in communication, security and other equipment products. Most of the DIP switches adopt direct plug-in (DIP), which can switch between two states, and then form different states of 2 to the Nth power according to different bits to realize different functions.

    Miniature DIP switches are available with 1 to 12 positions plus corresponding numbers of pins for selection. They are equipped with SPST loop and allow users to control the flow of electricity around a PCB. Red and blue types are available.
