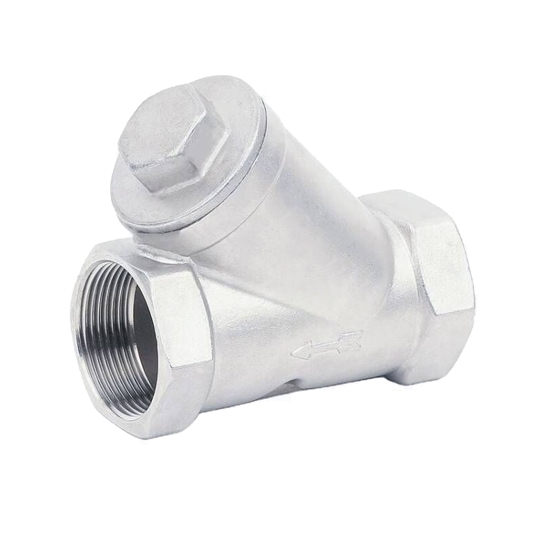

The provided 3/4" (DN20) Y-type strainer is made of high quality 304/316 stainless steel, which can withstand high temperatures and pressure. 800PSI working pressure and BSP, BSPT, NPT thread standard, good price, low maintenance.
Specifications
- Model: ATO-T11F-800WOG (P/R)
- Type: Y Type Strainer
- Nominal Diameter: 3/4 inch (DN20)
- Working Pressure: 800PSI
- Product Material: 304/316 Stainless Steel
- Connection Form: Thread
- Thread Standard: BSP, BSPT, NPT
- Temperature Range: -20°C~180°C
- Weight: 0.26kg
Dimensions (Unit: mm)
Main Part Materials |
NO. |
Part Name |
Materials |
QTY |
1 |
BODY |
CF8/CF8M |
1 |
2 |
FILTER |
S304/S316 |
1 |
3 |
JOINT GASKET |
PTRE/RPTFE |
1 |
4 |
CAP |
CF8/CF8M |
1 |
Dimension (Unit: mm) |
DN |
D |
L±1.5 |
H |
20 |
20 |
73 |
50 |
Applications
Y-type strainers can remove impurities, debris, and solid particles from fluid or gas pipelines in industrial and commercial applications. They are typically used in applications where a high flow rate is required, and where there is a risk of damage to equipment or processes from the presence of solid particles.
Tips: Materials of Y-type Strainer
Y-type strainers can be made from a variety of materials, including cast iron, carbon steel, stainless steel, brass, and plastic. The choice of material depends on the application and the properties of the fluid being filtered. For example, a stainless steel Y-type strainer may be used for filtering corrosive or high-temperature fluids, while a plastic Y-type strainer may be used for filtering low-pressure or non-corrosive fluids.
