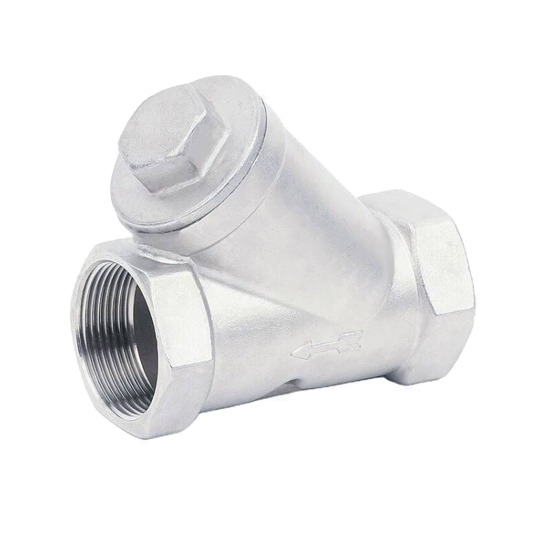

The 1-1/2 inch (DN40) stainless steel Y strainer is used in piping systems to remove unwanted particles, debris, and other impurities from fluid flowing through the system. 800PSI working pressure, BSP, BSPT and NPT thread for selection, stainless steel materials can withstand high temperature and pressure.
Specifications
- Model: ATO-T11F-800WOG (P/R)
- Type: Y Type Strainer
- Nominal Diameter: 1-1/2 inch (DN40)
- Working Pressure: 800PSI
- Product Material: 304/316 Stainless Steel
- Connection Form: Thread
- Thread Standard: BSP, BSPT, NPT
- Temperature Range: -20°C~180°C
- Weight: 0.76kg
Dimensions (Unit: mm)
Main Part Materials |
NO. |
Part Name |
Materials |
QTY |
1 |
BODY |
CF8/CF8M |
1 |
2 |
FILTER |
S304/S316 |
1 |
3 |
JOINT GASKET |
PTRE/RPTFE |
1 |
4 |
CAP |
CF8/CF8M |
1 |
Dimension (Unit: mm) |
DN |
D |
L±1.5 |
H |
40 |
38 |
107 |
73 |
Applications
Y-type strainers can remove impurities, debris, and solid particles from fluid or gas pipelines in industrial and commercial applications. They are typically used in applications where a high flow rate is required, and where there is a risk of damage to equipment or processes from the presence of solid particles.
Tips: Functions of Y-Type Strainer
The primary purpose of a Y-type strainer is to protect downstream equipment and systems from damage caused by debris or particles that may be present in the fluid. By capturing and removing these contaminants, Y-type strainers help to maintain the efficiency and longevity of equipment, reduce maintenance costs, and prevent downtime.
