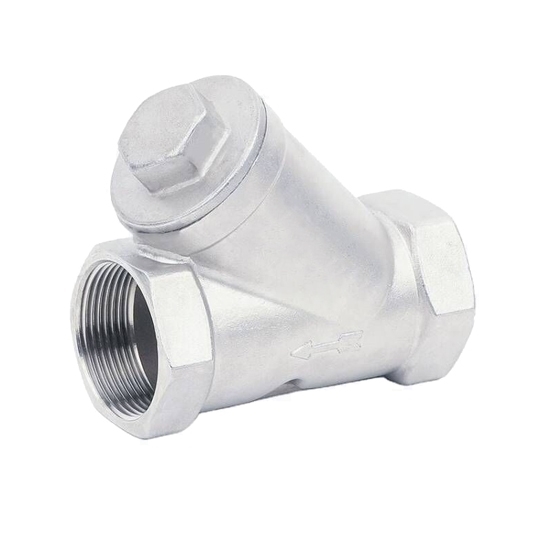

Get a 1-1/4 inch (DN32) stainless steel Y strainer for a low price. With 800PSI working pressure, SS 304/316 material, optional BSP, BSPT, and NPT thread, the Y-type filter is widely used in the chemical industry, heating, refrigeration, petroleum, construction, wind power, etc.
Specifications
- Model: ATO-T11F-800WOG (P/R)
- Type: Y Type Strainer
- Nominal Diameter: 1-1/4 inch (DN32)
- Working Pressure: 800PSI
- Product Material: 304/316 Stainless Steel
- Connection Form: Thread
- Thread Standard: BSP, BSPT, NPT
- Temperature Range: -20°C~180°C
- Weight: 0.53kg
Dimensions (Unit: mm)
Main Part Materials |
NO. |
Part Name |
Materials |
QTY |
1 |
BODY |
CF8/CF8M |
1 |
2 |
FILTER |
S304/S316 |
1 |
3 |
JOINT GASKET |
PTRE/RPTFE |
1 |
4 |
CAP |
CF8/CF8M |
1 |
Dimension (Unit: mm) |
DN |
D |
L±1.5 |
H |
32 |
30 |
97 |
67 |
Applications
Y-type strainers can remove impurities, debris, and solid particles from fluid or gas pipelines in industrial and commercial applications. They are typically used in applications where a high flow rate is required, and where there is a risk of damage to equipment or processes from the presence of solid particles.
Tips: Y-Type Strainer vs. Basket Strainer
A Y-type strainer and a basket strainer are both used for filtering unwanted debris and particles from fluid pipelines. The main difference between the two is the shape of the filter element. A Y-type strainer has a Y-shaped filter element, whereas a basket strainer has a cylindrical filter element.
