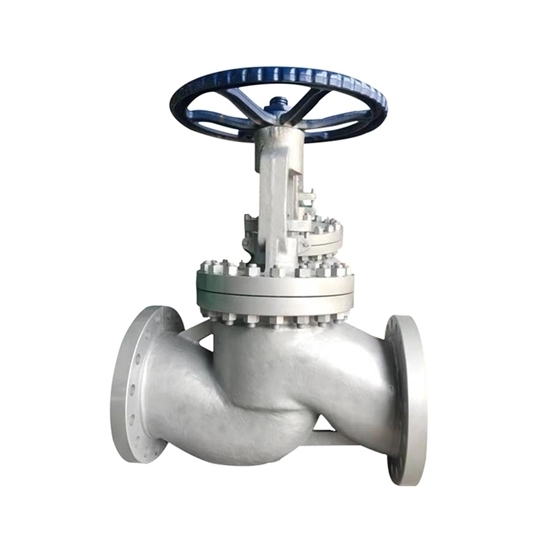

3/4" Flanged Globe Valve

Flange globe valve with carbon steel material. Thickened body makes the globe check valve stable. It is suitable for water and steam medium.

Features:

• Streanline, outside screw and yoke.
• Loose disc, rising stem and handwheel.
• Yoke integral with bonnet, available with gear operator.

Specification:

• Model: ATO-J41H-16/25C-DN20
• Port Size: 3/4 inch (DN20)
• Material: carbon steel
• Structural Style: straight through form
• Connection Type: flange connection
• Medium: water, oil, steam
• Pressure: 1.6Mpa/2.5Mpa
• Direction of Flow: one way flow
• Drive Mode: manual
• Working Temperature: -29 ℃ ~ 425 ℃

Dimension (Unit: mm)

Tips: Advantages of Globe Valve

• Compared with gate valve, the globe valve is simple in structure, convenient in manufacture and maintenance.
• Sealing surface is not easy to wear, abrasion, good sealing and long life.
• When opening and closing, the disc stroke is smaller, the opening and closing time is shorter, and the valve height is smaller.
