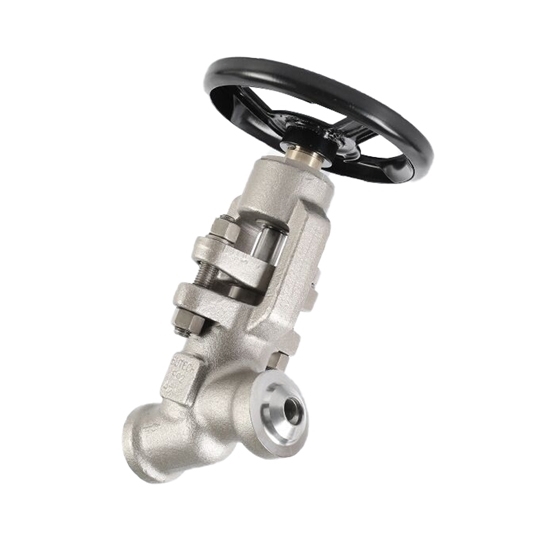

3/8" Y Pattern Globe Valve

Y pattern globe valve with high temperature vacuum welding stellite seat ring, for thermal distortion, it has good resistance. Working temperature of Y type globe valve between 54 ℃ and 648 ℃.

Features:

• With thrust bearing and low torque.
• Non-rotating stem with hardened and polished to reduce operating torque.
• High temperature vacuum welding stellite seat ring.

Specification:

• Model: YGV-8
• Port Size: 3/8 inch
• Valve Body: 304 stainless steel
• Working Pressure: 1500 LB
• Working Temperature: 54 ℃ ~ 648 ℃
• Connection Form: weld
• SW Connection: ASME B16.11
• Thread Connection: ASME 1.20.1
• Medium: steam
• Flow Direction: bidirectional flow

Structure:

Tips: Globe Valve Working Principle

The globe valve plays an important role in cutting off and throttling the medium in the pipeline where it is located. As a very important truncated valve, the globe valve is sealed by applying torque to the valve stem, and the valve stem exerts pressure on the valve disc in the axial direction, so that the sealing surface of the valve disc and the sealing surface of the seat are closely fitted to prevent the leakage of the medium along the gap between the sealing surface.
