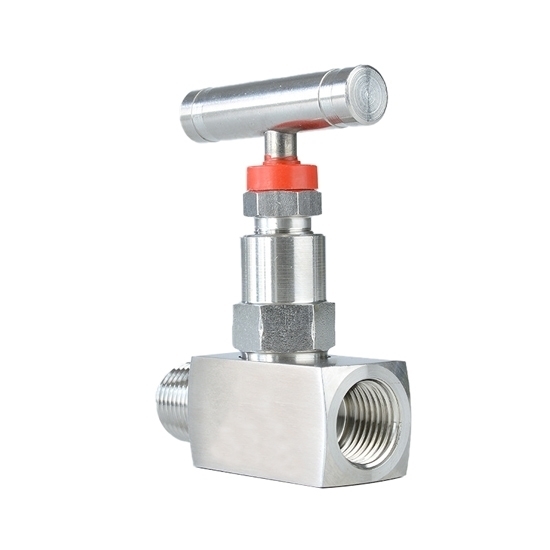

3/8" Stainless Steel Globe Valve

Simple and compact appearance of stainless valve. 304 stainless steel has the characteristics of corrosion resistance. Globe control valve can be used in machinery and petrochemical industry.

Features:

• Simple and compact appearance.
• NPT threaded connection for easy installation of pressure gauge and pipe.
• 304 stainless steel has the characteristics of corrosion resistance and high temperature resistance.

Specification:

• Model: ATO-HNV-N06MF
• Port Size: 3/8 inch
• Structure: inner and outer thread
• Pressure: 0-6000 psi
• Temperature: -20 ℃ ~ + 260 ℃
• Medium: oil, water, steam

Dimension (Unit: mm)

Tips: How to Maintain Stainless Steel Globe Valve?

• The stainless steel globe valve operated by hand wheel and handle can be installed in any position of the pipeline.
• Handwheel, handle and rotary mechanism are not allowed to be used for lifting.
• The flow of the medium should be consistent with the direction of the arrow shown in the valve body.
• Check the seal regularly.
