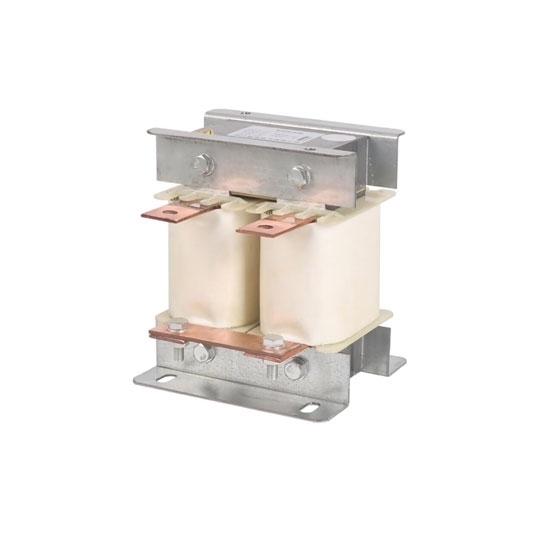

    200 hp (160kW) DC Reactor, Single Phase

    5 out of 5 based on 1 reviews | Write a review
    $692.39
    DC line reactor single phase, power 200 hp, rated current 400 amp, output dc voltage 200V, 380V, 400V, 440V to 1200V is optional, the DC line reactor can improve the power factor and reduce the AC pulse of the DC bus.
    *
    *
    SKU: ATO-DCR-200
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    DC line reactor for vfd, single phase, power 160kW, cheap price, high quality, it has the advantages of high quality and strong corrosion resistance.

    Specification:

    Model ATO-DCL-400
    Phase 1 Phase
    Power Adapter 160kW (200 hp)
    VFD Voltage Adapter 220V-1200V (Contact us for other voltages)
    Rated Current 400A
    Inductance 0.08mH
    Insulation Grade F.H
    Dimension 165*200*185mm
    Mounting Dimension 120*120mm
    Electric Strength Iron core-winding 3000VAC/50Hz/10mA/60s no arcing no breakdown
    Insulation Resistance iron core-winding 1000VDC, Insulation resistance
    ≥100MV
    Noise of Reactor Less than 35dB (measured from 1 meter away in horizon from reactor)
    Degree of Protection IP00
    Degree of Insulation > Class F
    Weight 22kg

    Features
    1. Improve the input current wave caused by capacitor harmonics.
    2. Reduce and prevent rectifier bridge damage and capacitors.
    3. Overheating due to a surge in current.
    4. Improve the power factor and reduce the AC pulse of the DC bus.
    5. Limit transient changes in system voltage.

    Dimension (unit: mm)
    DC reactor dimensionDetails

    Single Phase DC Reactor Details
    Tips: Difference between reactor and transformer

    The transformer plays the role of voltage conversion. The reactor plays the role of limiting or generating inductive current in the loop. The transformer has at least two windings in the same magnetic circuit, and the reactor generally only needs one winding. In order to improve the linearity of the inductance, the iron core generally has an air gap.

    Existing reviews of 200 hp (160kW) DC Reactor, Single Phase
    Find some DC reactors with the following specs
    We are looking to source some DC reactors with the following specs. forgot to include the voltage in my first request sent a few minutes ago.
    > 450A
    > 2.88mH
    > 600VDC
    From: glora | Date: 09/05/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Before quote, we also want to confirm the following points:
    Do you require copper for the material of the reactor? Need single phase or three phase?
    Is your reactor used in VFD or other equipment?
