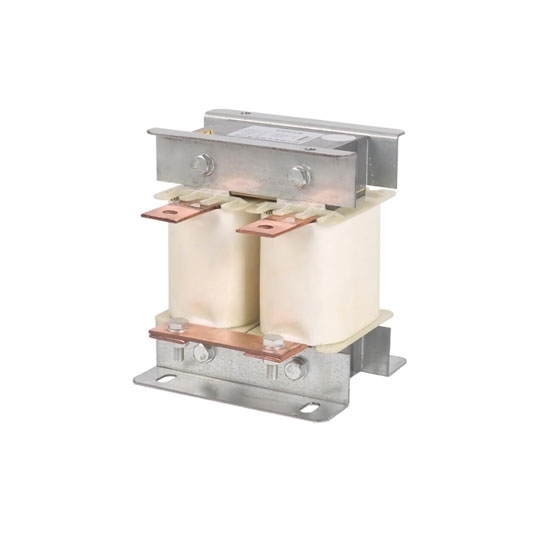

    100 hp (75 kW) DC Reactor, Single Phase

    $526.17
    DC line reactor power 75 kW (100hp), rated current 200A, single phase, effectively improve the power factor and reduce the AC pulse of the DC bus, widely used for the DC side of the converter.
    *
    *
    SKU: ATO-DCR-100
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Single phase DC line reactor can be used for high voltage direct current, power 100 hp (75 kW), voltage from 220V to 1200V is optional, material copper or aluminum.

    Specification:

    Model ATO-DCL-200
    Phase 1 Phase
    Power Adapter 75 kW (100 hp)
    Recommended VFD Model
    SKU: GK3000-4T0750G (2 hp three phase VFD)
    VFD Voltage Adapter 200V-1200V (Contact us for other voltages)
    Rated Current 200A
    Inductance 0.16mH
    Insulation Grade F.H
    Dimension 165*170*185mm (L*W*H)
    Mounting Dimension 120*95mm
    Electric Strength Iron core-winding 3000VAC/50Hz/10mA/60s no arcing no breakdown
    Insulation Resistance iron core-winding 1000VDC, Insulation resistance
    ≥100MV
    Noise of Reactor Less than 35dB (measured from 1 meter away in horizon from reactor)
    Degree of Protection IP00
    Degree of Insulation > Class F
    Weight 17kg

    Features
    1. Improve the input current wave caused by capacitor harmonics.
    2. Reduce and prevent rectifier bridge damage and capacitors.
    3. Overheating due to a surge in current.
    4. Improve the power factor and reduce the AC pulse of the DC bus.
    5. Limit transient changes in system voltage.

    75 kW  DC Reactor Dimension (unit: mm)
    DC reactor dimension

    Details

    Single Phase DC Reactor Details

    Tips: When does the inverter need to add a special input reactor for the inverter?

    1. There is a power factor correction (compensation) device on the power supply.

    2. There is a risk of lightning strikes for the power supply, or the inverter often reports faults such as operating overvoltages.

    3.The ratio of the capacity of the inverter to the capacity of the transformer is greater than or equal to 1:10.

    4. The power factor of the frequency conversion system is too low, and the power factor of the frequency conversion system needs to be improved.

    5. When the inverter pollutes the power supply, causing other electrical equipment to fail to work normally.

    6. When the frequency conversion system is undergoing EMC test and fails to pass normally.
