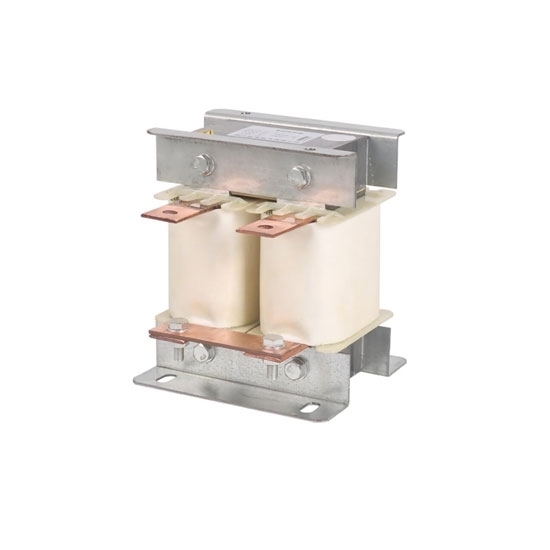

    150 hp (110kW) DC Reactor, Single Phase

    $625.46
    Smoothing DC line reactor rated current 280A, single phase, able to reduce harmonic interference, used in in high voltage direct current, insulation class F, brand new, sold directly by the manufacturer.
    *
    *
    SKU: ATO-DCR-150
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Cheap price dc line reactor for sale,110kW, dc output voltage can choose 220V, 380V, 400V, other voltage can be customized, material copper or aluminum, fast delivery.

    Specification:

    Model ATO-DCL-280
    Phase 1 Phase
    Power Adapter 110kW (150 hp)
    VFD Voltage Adapter 220V-1200V (Contact us for other voltages)
    Rated Current 280A
    Inductance 0.11mH
    Insulation Grade F.H
    Dimension 165*185*185mm
    Mounting Dimension 120*110mm
    Electric Strength Iron core-winding 3000VAC/50Hz/10mA/60s no arcing no breakdown
    Insulation Resistance iron core-winding 1000VDC, Insulation resistance
    ≥100MV
    Noise of Reactor Less than 35dB (measured from 1 meter away in horizon from reactor)
    Degree of Protection IP00
    Degree of Insulation > Class F
    Weight 20kg

    Features
    1. Improve the input current wave caused by capacitor harmonics.
    2. Reduce and prevent rectifier bridge damage and capacitors.
    3. Overheating due to a surge in current.
    4. Improve the power factor and reduce the AC pulse of the DC bus.
    5. Limit transient changes in system voltage.

    Dimension (unit: mm)
    DC reactor dimension

    Details

    Single Phase DC Reactor Details

    Tips: ATO DC Line Reactor performance description

    1. ATO DC reactor is a single-phase iron core dry structure.
    2. The iron core of the DC reactor is made of high-quality low-loss cold-rolled silicon steel sheet. The core column is divided into even small sections by multiple air gaps. The air gaps are separated by epoxy laminated glass cloth plates and coated with special adhesives to ensure The reactance air gap does not change during operation and there is no noise.
    3. The reactor coil is wound with F-class or H-class enameled copper flat wire, arranged tightly and evenly, without insulating layer on the outside, the small-capacity coil adopts the layered structure, and the large-capacity coil adopts the pie structure, which has better Ventilation and heat dissipation effect.
    4. The coil and iron core of the DC reactor are assembled into one body and go through the process of pre-baking-vacuum dipping-thermal curing. The H-level dipping varnish is used to firmly combine the coil and iron core of the Satons reactor Together, it not only greatly reduces the noise during operation, but also has a very high heat resistance level, which can ensure that the reactor can operate safely without noise at high temperatures.
    5. Part of the fasteners of the core column of the DC reactor are made of non-magnetic materials to ensure that the reactor has a low temperature rise.
    6. The exposed parts of the reactor are all treated with anti-corrosion treatment, and the lead terminals are tinned copper tube terminals or copper bars.
