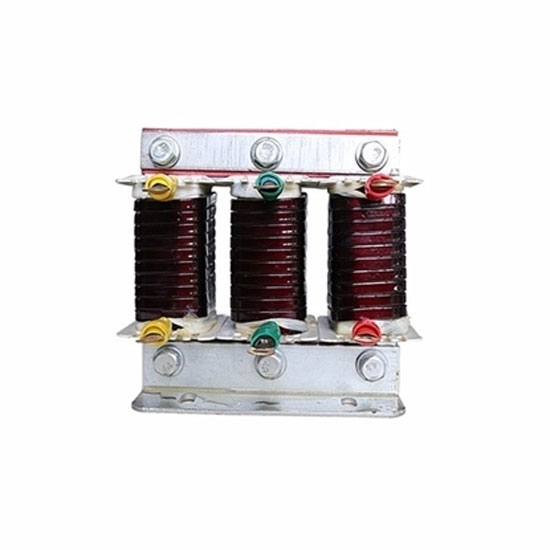

    3 hp (2.2 kW) AC Line Reactor, 3 Phase Output

    5 out of 5 based on 1 reviews | Write a review
    $244.54
    The 3-phase AC output line reactor material has copper and aluminum for choice, line reactor for vfd. The insulation rank is class F,H, voltage choose from 220V, 380V, 400V, 410V, 440V, 460V or 480V. Low cost, well-made and widely used.
    SKU: ATO-OLR-2d2
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    3 hp 3-phase line reactor are available for 220V, 380V, 400V, 410V,440V, 460V or 480V, with rate current 7A. The working frequency is 50/60Hz, reasonable price, long service life and high reliablity.

    3-Phase Line Output Reactor Specifications

    Basic Model ATO-OCR-0007-1M00-0.4SC
    Recommended VFD Model GK3000-4T0022G (3 hp three phase VFD)
    Phase 3 Phase
    Power 3 hp (2.2 kW)
    Weight 2.6 kg
    Technical Parameters Work Valtage 380V (optional: 220V/ 240V/ 400V/ 415V/ 440V/ 460V/ 480V)
    Work Frequency 50Hz/60 Hz
    Rated Current 7 A
    Max Current 1.5 Times the Rated Current, Continued 60s
    Inductance Value 1 mH
    Material Aluminium/Copper (Optional)
    Voltage Drop 2%
    Noise ≤65dB
    Insulation Class Class F, H
    Protection Class IP00-IP22
    Insulation Resistor ≥100MΩ
    Working Environment Operation Environment -10℃~+45℃
    Temperature Rise ≤85K
    Humidity ≤90%RH, without condensation
    Running Ambient Temperature -25℃~+45℃
    Altittude ≤2000m

    3 hp 3-Phase Output Line Reactor Mounting Dimension

    2hp 3 phase output reactor

    Dimension(±5mm)
    L D W W1 H A×B
    110 90 95 70 130 6×11

    3-Phase Output Line Reactor Circuit Diagram

    3 phase output line reactor circuit diagram

    Tips: How to select a line reactor?

    The line reactor is the general name of the inductor and the reactance device. As inductor appeared earlier on the history of electrical equipment and was called line reactor, capacitor is also called reactance device. Common line reactors include the incoming line reactor, which is used to restrict the sudden voltage change and current impact caused by overvoltage. It can also smooth the spike pulse contained in the power supply voltage, thus improving power quality. Single phase DC line reactor is mainly used between the DC link and contravariant link in the inverter system, its main function is to limit the AC component superimposed on the DC current to a specified value. Main function of three-phase output line reactor is to compensate the influence of long line distributed capacitance, restrict the output of harmonic current and improve output high frequency impedance, thus protecting the inverter.

    Common line reactors include the core-type line reactor. Such a line reactor has small size and low magnetic flux leakage, loss. It can be used in the high-voltage board. However, it also has many disadvantages, such as large noise, easy magnetic saturation (which may lead to burn out of coil), poor harmonic suppression and poor short circuit current resistant. Dry-type air core reactor has strong flow capacity, simple but tough mechanical structure, it can be used outside. However, it has disadvantages of high active power loss and large electromagnetic interference to surrounding electrical equipment . Moreover, half core-type reactor and magnetic shielding reactor are also common. Therefore, the converter has many types and functions, proper line reactors shall be selected by demands in actual power systems.
