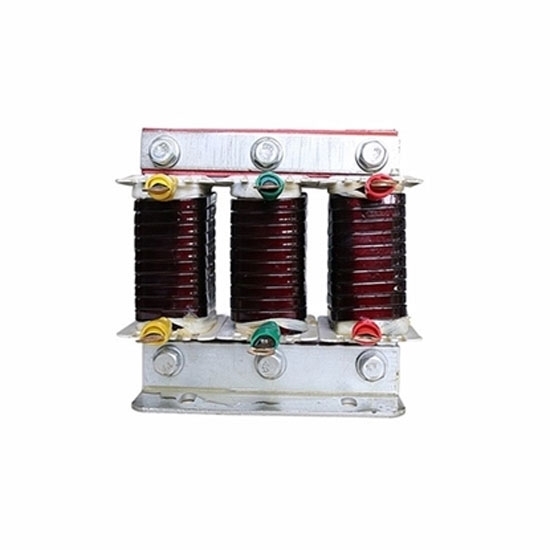

    5 hp (3.7 kW) AC Line Reactor, 3 Phase Output

    5 out of 5 based on 3 reviews | Write a review
    $272.89
    5 hp 3 phase output line reactor available for 50Hz/60Hz, rated load 10A, work voltage 380V, other voltages can be customized. Compact size, aluminum and copper are available for your choice, best price and high quality.
    SKU: ATO-OLR-3d7
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    5 hp AC output line load reactor work freqency 50Hz/ 60Hz, rated current 10Amps, with reliability and higher efficiency, mainly used in industrial automation system engineering, especially in the use of frequency converter occasions.

    3-Phase Line Output Reactor Specifications

    Basic Model ATO-OCR-0010-1M70-0.4SC
    Recommended VFD Model GK3000-4T0037G (5 hp three phase VFD)
    Phase 3 Phase
    Power 5 hp (3.7 kW)
    Weight 2.8 kg
    Technical Parameters Work Valtage 380V (optional: 220V/ 240V/ 400V/ 415V/ 440V/ 460V/ 480V)
    Work Frequency 50Hz/60 Hz
    Rated Current 10 A
    Max Current 1.5 Times the Rated Current, Continued 60s
    Inductance Value 10.7 mH
    Material Aluminium/Copper (Optional)
    Voltage Drop 2%
    Noise ≤65dB
    Insulation Class Class F, H
    Protection Class IP00-IP22
    Insulation Resistor ≥100MΩ
    Working Environment Operation Environment -10℃~+45℃
    Temperature Rise ≤85K
    Humidity ≤90%RH, without condensation
    Running Ambient Temperature -25℃~+45℃
    Altittude ≤2000m

    3-Phase Output Line Reactor Circuit Diagram

    3 phase output line reactor circuit diagram
    Tips: Why do you need an ATO input reactor?

    Inverter in use process, often from the impact of the surge current and surge voltage, will seriously damage the transducer and speed performance and service life, so want to in front of the reactor with input, to restrain the surge voltage and surge current, the protection of inverter and speed governor, prolong its service life and prevent the harmonic interference, At the same time because of the frequency converter and governor is with the method of variable frequency speed regulation, so the speed will often produce a higher harmonic and produce waveform distortion, will influence the equipment normal use, therefore, must be in the reactor with a into the line input end, converter can improve the power factor and harmonic current, filter out harmonic voltage and harmonic current, improve the quality of power grid.

    Existing reviews of 5 hp (3.7 kW) AC Line Reactor, 3 Phase Output
    I am very satisfied with the performance and quality of the AC Line Reactor!
    In my recent work on a central air conditioning system, I needed circuit resistors to regulate the speed of fans and pumps. Serendipitously, I stumbled upon the 5 hp AC Line Reactor product, which has proven to be an ideal fit for my requirements. It offers a range of operating frequencies to choose from, allowing for precise control.I'm currently enjoying its effectiveness and reliability and hope that it continues to perform well in the future. This discovery has significantly improved the functionality of my system, and I'm looking forward to its continued success.
    From: aly | Date: 23/04/2024
    Was this review helpful? Yes No (0/0)
    Question about the reactor
    [ #1 ]  What are DIMENSIONS of VFD Output Line Reactor for 5HP / 3.7 kW / 3PH ?

    [ #2 ]  Would the subject Output Line Reactor produce any significant HEAT ?
    I'm hoping answer is ""no"".
    If we install Reactor... we would plan leave space inside same NEMA-4 Box for installation.
    [ #3 ]  If we purchase and install Reactor... can ATO please also send Qty 6 Connectors for the six Reactor connection posts?  VFD --> Reactor  -and-  Reactor --> Pump/Motor [ see below ]
    We would be using...
    < >  10 AWG insulated solid wire from VFD --> Reactor.
    < >   6 AWG insulated solid wire from your (Output) Reactor --> Pump/Motor.

    TO BE CLEAR, NEED THE REACTOR-COMPATIBLE CONNECTORS... AND NOT THE WIRE.
    From: Ethan | Date: 23/10/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    1.Here is our 5 hp output AC Line Reactor's dimensions: 130*100*160mm, mounting holes: 85*60mm;
    2.If there is Not frequent start and stop, the reactor will Not produce too much heat;
    3.Sorry, we do Not provide such connectors, you need to prepare them by yourself.
