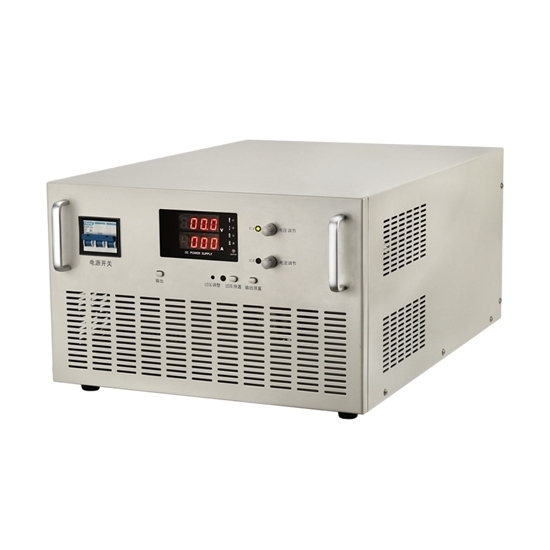

150A 120V variable DC power supply provides a reliable and adjustable power source for various applications. This variable DC power supply with adjustable voltage and current capabilities, coupled with digital control features, serves as a reliable and efficient power source for electronics experimentation and development.
Specification
Model |
ATO-JK120150K |
Input Voltage |
Single Phase 110V AC, Three Phase 220V or 380V AC (+/- 10%) (240V, 400V, 415V, 440V, 460V 480V can be customized) |
Output Voltage Range |
0-120V |
Output Current Range |
0-150A |
Output Power |
18000W |
Frequency |
50Hz/60Hz |
Adjustable Mode |
Pulse Width Modulation (PWM) Type |
Transistor Connection Method |
Full Bridge |
Output Type |
Dual |
Display |
3 digit |
Display Accuracy |
Output Voltage ±0.5%, Output Current ±0.5% |
Efficiency |
>86% |
Load Regulation (CV) |
Stable Voltage ≤0.5%, Constant Current ≤0.5% |
Line Regulation (CV) |
Stable Voltage ≤0.5% |
Ripple Voltage |
≤1% |
Insulation Resistance |
Input-Output: ≥20MΩ |
Input-Chassis: ≥20MΩ |
Output-Chassis:≥80MΩ |
Dielectric Strength |
Input-Output: AC1500V, 10mA, 1 minute |
Input-Chassis: AC1500V, 10mA, 1 minute |
Output-Chassis: AC1500V, 10mA, 1 minute |
Protection |
Over Load and Voltage Protection |
Current Imbalance |
≤5% + 0.5A |
Operating Ambient |
-10℃ to + 45℃/ 85%RH |
Storage Ambient |
-10℃ to + 80℃/ 80%RH |
Overheat Protection Ambient Threshold |
70℃ to 80℃ |
Mean Time Between Failures |
≥50000h |
Cooling Duct |
Internal Cooling Air Duct Forward and Exit |
Certification |
CE, RoSH |
Warranty |
12 Months |
Size |
700 (L) x 480 (W) x 295 (H) mm |
Weight |
45kg |
Detail
Tips: What is the typical lifespan of a variable DC power supply?
The lifespan of a variable DC power supply depends on various factors, including its quality, usage patterns, and maintenance. Higher quality power supplies designed with durable components and robust construction can last for several decades with proper care. In contrast, lower-quality units may have shorter lifespans, potentially ranging from a few years to a decade. Regular maintenance, such as cleaning, ensuring proper ventilation, and monitoring for voltage irregularities, can extend the lifespan. Intermittent or heavy usage, especially near the power supply's maximum capacity, may accelerate wear and reduce its lifespan. Ultimately, a well-maintained, high-quality variable DC power supply can provide reliable service for 15-30 years, while lower-quality units may need replacement sooner. Regular assessments and adherence to manufacturer guidelines contribute to optimizing the lifespan of a variable DC power supply.
