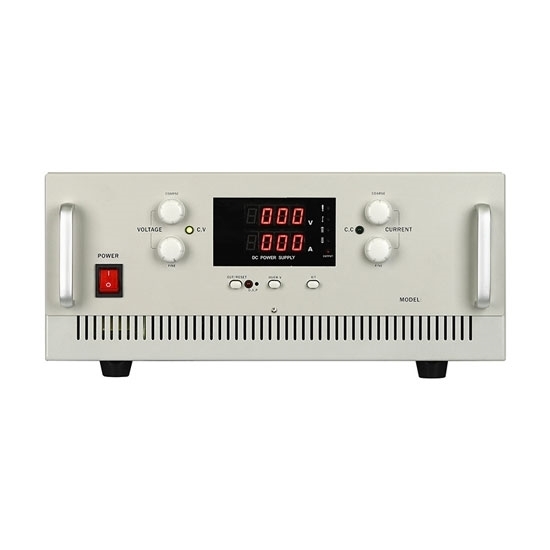

200A 30V 6000W Variable DC Power Supply

5 out of 5 based on 1 reviews | Write a review

$2,317.19

6000W variable DC power supply is designed with adjustable 0-30V output voltage and 0-200A output current, offering flexibility for diverse electronic components and projects. It is switching mode with 3 digit LED display, selectable single phase 110V or 220V±10% AC input. Equipped with digital control features, this DC power supply allows users to set desired voltage and amperage levels with accuracy.

Input Voltage *

SKU: ATO-VDCPS30200K

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
PDF Download

200 amp 30 volt variable DC power supply features adjustable voltage and current outputs, allowing users to fine-tune settings based on specific requirements. The versatility and precision of this adjustable DC power supply make it an essential device for electronics labs, testing environments, and various technical applications, offering reliability and adaptability in powering electronic components and systems.

Specification

Model	ATO-JK30200K
Input Voltage	Single Phase 110V or 220V AC (+/- 10%)
Output Voltage Range	0-30V
Output Current Range	0-200A
Output Power	6000W
Frequency	50Hz/60Hz
Adjustable Mode	Pulse Width Modulation (PWM) Type
Transistor Connection Method	Full Bridge
Output Type	Dual
Display	3 digit
Display Accuracy	Output Voltage ±0.5%, Output Current ±0.5%
Efficiency	>86%
Load Regulation (CV)	Stable Voltage ≤0.5%, Constant Current ≤0.5%
Line Regulation (CV)	Stable Voltage ≤0.5%
Ripple Voltage	≤1%
Insulation Resistance	Input-Output: ≥20MΩ
	Input-Chassis: ≥20MΩ
	Output-Chassis:≥80MΩ
Dielectric Strength	Input-Output: AC1500V, 10mA, 1 minute
	Input-Chassis: AC1500V, 10mA, 1 minute
	Output-Chassis: AC1500V, 10mA, 1 minute
Protection	Over Load and Over Voltage Protection
Current Imbalance	≤5% + 0.5A
Operating Ambient	-10℃ to + 45℃/ 85%RH
Storage Ambient	-20℃ to + 70℃/ 80%RH
Overheat Protection Ambient Threshold	70℃ to 80℃
Mean Time Between Failures	≥50000h
Cooling Duct	Internal Cooling Air Duct Forward and Exit
Certification	CE
Warranty	12 Months
Size	430 (L) x 450 (W) x 180 (H) mm
Weight	26kg

Detail

Details of 200A 30V Adjustable DC Power Supply

Details of 200A 30V Variable DC Power Supply

Tips: Can a variable DC power supply deliver both positive and negative voltages?

Yes, a variable DC power supply can deliver both positive and negative voltages. It achieves this by having two output terminals, typically labeled as positive (+) and negative (-). By adjusting the voltage control knob, you can vary the output voltage within a specified range, including both positive and negative values. The ability to provide negative voltage is crucial for certain electronic components and circuits that require both polarities. This feature enables the power supply to accommodate a wide range of applications, from powering basic electronic devices to more complex circuits where the direction of voltage is essential for proper functioning. The flexibility of a variable DC power supply makes it a versatile tool in electronics laboratories and testing environments.

Download ATO 200A 30V Variable DC Power Supply Specs (pdf)

Existing reviews of 200A 30V 6000W Variable DC Power Supply

The rectifier information

I want the rectifier ATO-VDCPS30200K for phosphoric acid anodizing process. Can its voltage be switched? Can the current be introduced gradually?

From: Vered | Date: 17/03/2025

Was this review helpful? Yes No (0/0)

ATO Responded

This model only supports a single fixed voltage. The required voltage value must be selected when placing an order, and it cannot be switched later. It supports gradual increase of current through manual adjustment function.
