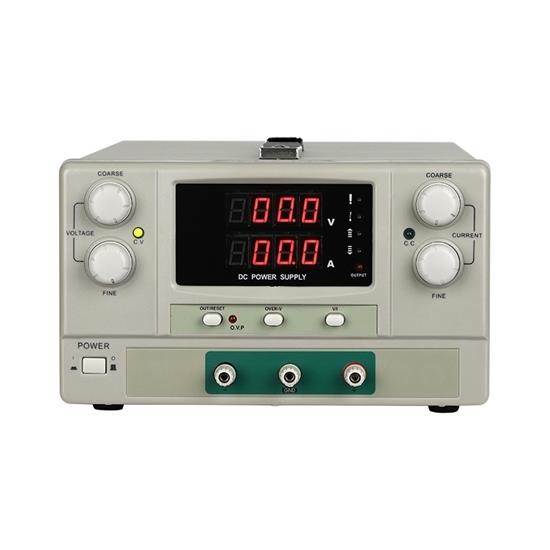

20A 100V 2000W Variable DC Power Supply

Write a review

$905.59

Affordable price variable DC power supply utilizes digital control mechanisms, facilitating straightforward and precise adjustment of desired voltage and amperage levels. This adjustable DC power supply operates in switching mode, boasting 2000W DC output power, an output current range of 0 to 20A, and an output voltage range of 0 to 100V, single phase 110V or 220V±10% AC input available, 3-digit LED display for easy monitoring.

Input Voltage *

SKU: ATO-VDCPS10020K

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

20 amp 100 volt variable DC power supply offers reliability and adaptability, the dependable and adjustable power source for diverse applications. With its adjustable voltage and current capacities, complemented by advanced digital control features, this power supply proves itself as an efficient and dependable source for experimenting and advancing in electronic projects.

Specification

Model	ATO-JK10020K
Input Voltage	Single Phase 110V or 220V AC (+/- 10%)
Output Voltage Range	0-100V
Output Current Range	0-20A
Output Power	2000W
Frequency	50Hz/60Hz
Adjustable Mode	Pulse Width Modulation (PWM) Type
Transistor Connection Method	Full Bridge
Output Type	Dual
Display	3 digit
Display Accuracy	Output Voltage ±0.5%, Output Current ±0.5%
Efficiency	>86%
Load Regulation (CV)	Stable Voltage ≤0.5%, Constant Current ≤0.5%
Line Regulation (CV)	Stable Voltage ≤0.5%
Ripple Voltage	≤1%
Insulation Resistance	Input-Output: ≥20MΩ
	Input-Chassis: ≥20MΩ
	Output-Chassis:≥80MΩ
Dielectric Strength	Input-Output: AC1500V, 10mA, 1 minute
	Input-Chassis: AC1500V, 10mA, 1 minute
	Output-Chassis: AC1500V, 10mA, 1 minute
Protection	Over Load and Over Voltage Protection
Current Imbalance	≤5% + 0.5A
Operating Ambient	-10℃ to + 45℃/ 85%RH
Storage Ambient	-20℃ to + 70℃/ 80%RH
Overheat Protection Ambient Threshold	70℃ to 80℃
Mean Time Between Failures	≥50000h
Cooling Duct	Internal Cooling Air Duct Forward and Exit
Certification	CE, RoSH
Warranty	12 Months
Size	303 (L) x 255 (W) x 155 (H) mm
Weight	15kg

Detail

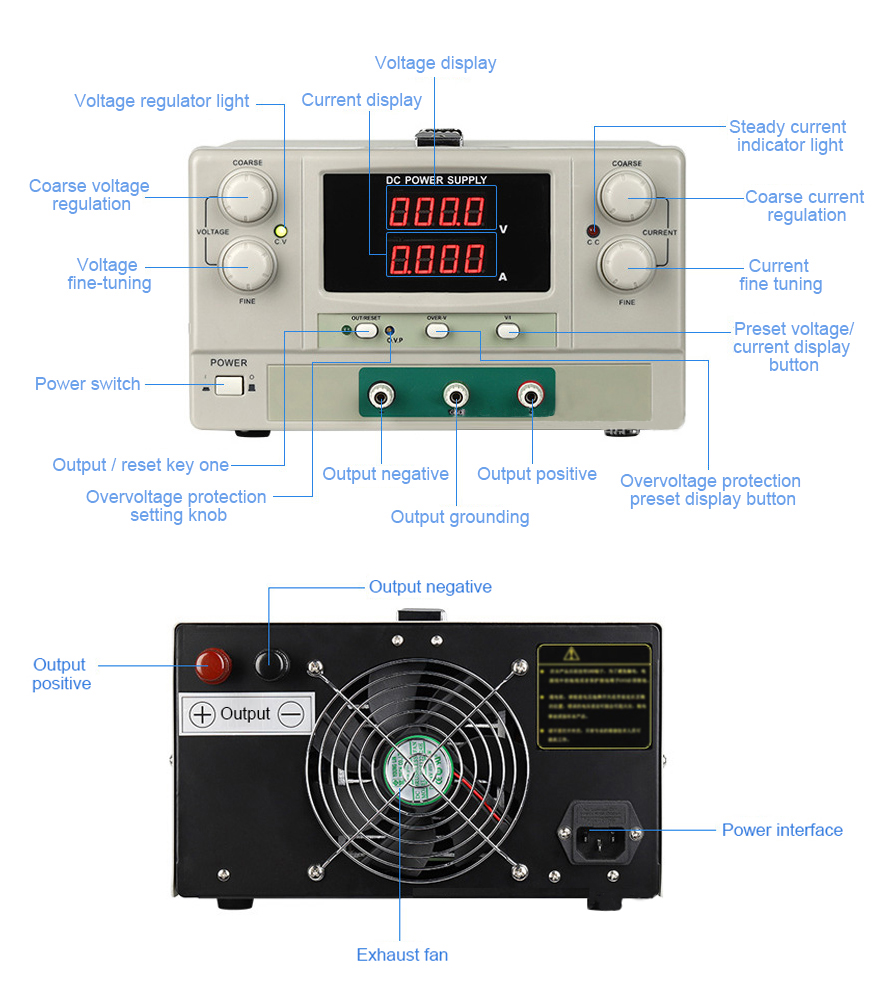

Details of 20A 100V Adjustable DC Power Supply

Tips: Can a variable DC power supply power multiple devices simultaneously?

Yes, a variable DC power supply can power multiple devices simultaneously, provided its output capacity is sufficient to meet the combined power requirements of all connected devices. Ensure that the total current draw of the devices does not exceed the maximum current output of the power supply. Additionally, the voltage supplied must match the requirements of each device. If the power supply has multiple output channels, each with adjustable voltage and current settings, individual devices can be connected to different channels for precise control. However, it's crucial to be mindful of the total power (wattage) and not exceed the power supply's overall capacity to prevent overloading and potential damage to both the power supply and connected devices.
