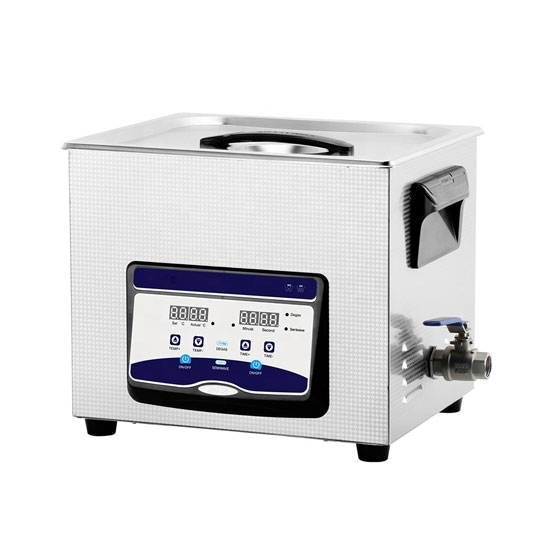

Benchtop ultrasonic cleaning machine with 10L large tank volume and 40kHz ultrasonic frequency is professional for safe and effective cleaning jewelry, eyeglasses, watches, dentures, coin, hardware, metal parts, carburetor, auto parts, circuit board, engine parts, glasses, lab equipment, surgical instrument, etc.
Features
- Stainless steel tank, high durability and long service life.
- 10 Litre/ 2.5 Gallon large capacity tank, capable of cleaning many items at one time.
- Digital ultrasonic cleaner has timer control, 0-30min adjustable.
- With digital heating function range of 20°C ~ 80°C, helpful to remove the oil and wax.
- Degas function to prevent the items from oxidation.
- Dual ultrasonic power 120W/240W to meet different cleaning requirements.
- Ultrasonic cleaning machine comes with stainless steel basket to keep the items secure.
- Using only tap water, or industrial alcohol and solvent cleaner for higher cleaning requirement.
- Adopting industrial control chip microcontroller, flexible circuit board control, safer and more stable.
Specification
Model |
ATO-JP-040S |
Tank Capacity |
10L |
Transducer Quantity |
4 |
Ultrasonic Power |
120/240W |
Heating Power |
200W |
Timer |
1~30 min adjustable |
Heating Temperature |
20℃~80℃ adjustable |
Ultrasonic Frequency |
40kHz |
Power Supply |
AC 110V 60Hz or AC 220V 50Hz |
Material |
Stainless Steel SUS304 |
Tank Size |
300*240*150mm (L*W*H) |
Product Size |
380*290*280mm (L*W*H) |
Net Weight |
7.3kg |
Gross Weight |
8.4kg |
Certification |
CE, RoHS |
Warranty |
1 Year |
Document |
Download Ultrasonic Cleaner User Manual |
Applications
The large ultrasonic cleaner with 10 liter tank capacity is widely used in the jewelry industry, medical industry, electronic factory, molding factory, car workshop, diesel workshop, automobile industry, scientific laboratory, university, dental clinics, eyeglass shop, hardware tools shop, barbershop, printing industry and so on.
Tips: Where Can Ultrasonic Cleaning Machines be Used?
Ultrasonic cleaner is widely used in surface spraying treatment industry, machinery industry, electronics industry, medical industry, semiconductor industry, watch and jewelry industry, optical industry, textile printing and dyeing industry and other industries, as follows:
- Surface spraying treatment industry
Cleaning attachments: oil, mechanical chips, abrasive, dust, polishing wax.
- Mechanical industry
Clean attachments: cutting oil, abrasive particles, iron filings, dust, fingerprints; rust-proof grease.
- Pharmaceutical industry
Clean attachments: blood, gelatin, dust, fingerprint, blood stain and protein; chemical synthesis vibrational dissolution in pharmaceutical research and development.
- Watch & jewelry industry
The ultrasonic cleaner can be used to remove dust, oxide layer, polishing paste of precious metals, ornaments, meter, watchband, watchcase, needle, digital dial, etc.
- Textile printing and dyeing industry
Clean the spinneret, drawing board, textile spindle, fiber wire (stainless steel wire, nickel wire, copper wire, etc.) to remove oil and dirt.
- Other industries
The ultrasonic cleaning machine is also be used for cleaning the seals, plates, coins, high-grade pottery, silver products, gold products, magnetic bank cards, etc.
