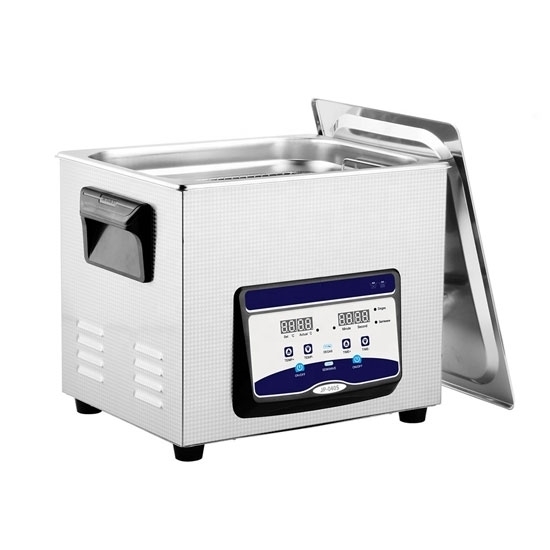

Stainless steel ultrasonice cleaning machine is designed with 14.5 liter tank capacity, 150/300W ultrasonic power, and 40kHz ultrasonic frequency, providing powerful yet gentle clean for jewelry, rings, eyeglasses, watches, dentures, coin, hardware, metal parts, carburetor, fuel injector, car parts, circuit board, engine parts, glasses, lab equipment, surgical instrument, tattoo equipment, etc.
Features
- Stainless steel tank, high durability and long service life.
- Large capacity tank holds 14.5 litre volume, capable of cleaning many items at one time.
- Digital ultrasonic cleaner has timer control, 0-30min adjustable.
- With digital heating function range of 20°C ~ 80°C, helpful to remove the oil and wax.
- Degas function to prevent the items from oxidation.
- Dual ultrasonic power 150W/300W to meet different cleaning requirements.
- Ultrasonic cleaner comes with stainless steel basket to keep the items secure.
- Using only tap water, or industrial alcohol and solvent cleaner for higher cleaning requirement.
- Adopting industrial control chip microcontroller, flexible circuit board control, safer and more stable.
Specification
Model |
ATO-JP-050S |
Tank Capacity |
14.5L |
Transducer Quantity |
5 |
Ultrasonic Power |
150/300W |
Heating Power |
200W |
Timer |
1~30 min adjustable |
Heating Temperature |
20℃~80℃ adjustable |
Ultrasonic Frequency |
40kHz |
Power Supply |
AC 110V 60Hz or AC 220V 50Hz |
Material |
Stainless Steel SUS304 |
Tank Size |
300*240*200mm (L*W*H) |
Product Size |
380*290*280mm (L*W*H) |
Net Weight |
8.9kg |
Gross Weight |
9.7kg |
Certification |
CE, RoHS |
Warranty |
1 Year |
Document |
Download Ultrasonic Cleaner User Manual |
Applications
The 14.5L 300W benchtop ultrasonic cleaner is widely applied in the jewelry industry, medical industry, electronic factory, molding factory, car workshop, diesel workshop, automobile industry, scientific laboratory, university, dental clinics, eyeglass shop, hardware tools shop, barbershop, printing industry and so on.
Tips: Advantages of Ultrasonic Cleaners
1. A thorough cleaning of workpiece corner
Ultrasonic cleaning machine has a significant cleaning effecton workpiece that cannot be completely and effectively cleaned by manual and other cleaning methods. The ultrasonic cleaner can thoroughly reach the cleaning requirements, removing the stains at the hidden corner or dead corner of complex workpiece
2. A variety of workpiece batch cleaning
No matter how complex the pipe shape, put it into the cleaning fluid. As long as it is able to contact the liquid, the role of ultrasonic cleaning can be achieved. Ultrasonic cleaner is especially suitable for the workpiece with complex shape and structure.
3. Multi-function cleaning
Ultrasonic cleaning machine can be combined with different solvents to achieve different results and meet different supporting production process, such as: oil removal, rust removal, dust removal, wax removal, chip removal, or removing phosphating, passivation, ceramicization, electroplating, etc.
4. Reduce pollution
Ultrasonic cleaning can effectively reduce pollution, reduce the damage of toxic solvents to human beings, and protect the environment.
5. Reduce labor
The use of ultrasonic cleaner can realize the workpiece automatic cleaning, drying, greatly reducing the number of manual cleaning required personnel and cleaning time.
6. Shorten the operation time
Compared with manual cleaning, the cleaning time of ultrasonic cleaning machine is shortened to one fourth of manual cleaning.
