10A 30V 300W Variable DC Power Supply

4.6 out of 5 based on 3 reviews | Write a review
$412.39
Variable 0-10A, 0-30V output DC regulated power supply is single output, high precision and high reliability, 110 or 220V±10% AC input, 4 LED digital display with accuracy of +/-0.5%. This portable and adjustable power supply designed with grounding port for prevent the tester repairing your electronic workshops from current leakage.
*
SKU: ATO-DCPS-10
30-day Returns
Free Shipping
Delivery date: 6-12 days

Single channel DC power supply has 0-10 amps continuous adjustable output current, 0-30 volt continuous adjustable output voltage, 4 digit LED display, multiple functions such as over voltage, over load, over temperature etc. Compact and light weight design, easy to move and operation, great choice for using in home, labs, and schools, repairing workshops etc.

Specifications

Model ATO-K3010D
Input Voltage 110V or 220V AC (+/- 10%)
Output Voltage Range 0-30V
Output Current Range 0-10A
Output Power 300W
Frequency 50Hz/60Hz
Output Type Single
Display 4 digit
Voltage Display Accuracy ±0.5%
Current Display Accuracy ±0.5%
Efficiency >85%
Voltage Regulation
Load Regulation (10-100%) 50mV
Line Regulation (200-240VAC) 20mV
Ripple & Noise (P-P) 30mV
Current Regulation
Load Regulation (10-100%) 20mA
Line Regulation (200-240VAC) 20mA
Ripple & Noise (P-P) 20mA
Others
Protection Over load and over valtage protecion
Operating Ambient -10℃ to + 60℃/ 30%RH to 90% RH
Certification CE, RoHS
Warranty 12 Months
Size 70 (W) x 160 (H) x 220 (D) mm
Weight 2kg
Package List 1 x DC Power Supply Host, 1 x Output Power Cord, 1 x User Manual


Details

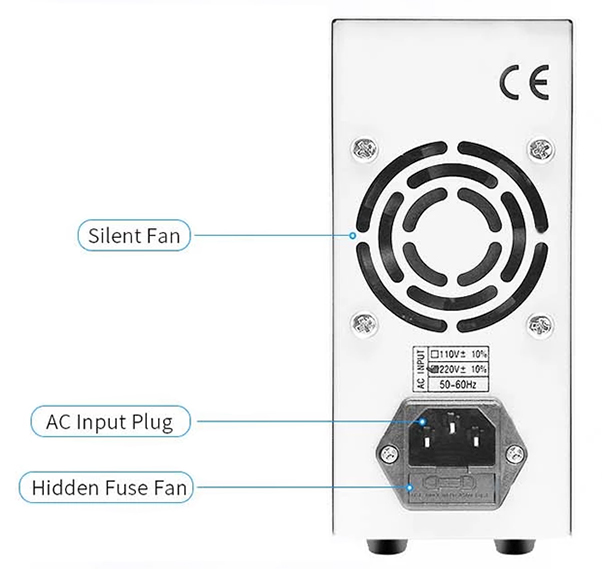

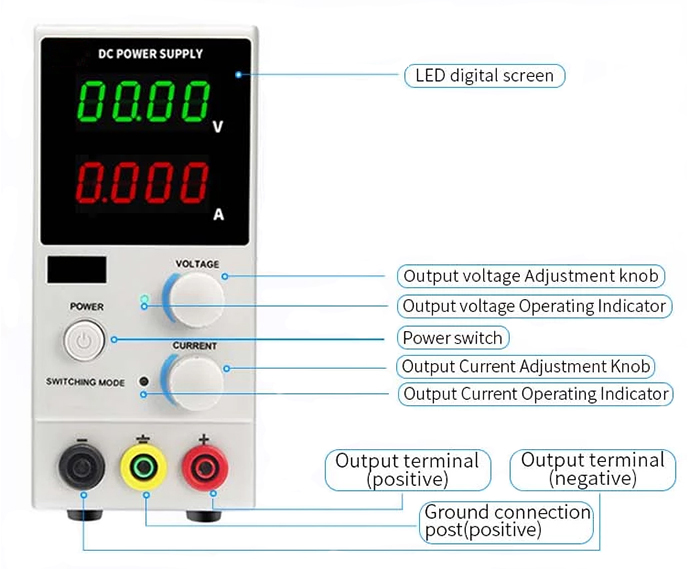

DC power supply detail features

DC power supply detail features<



Tips

The difference between AC regulated power supply and DC regulated power supply is that DC power will not change, while AC power supply has a change cycle, AC voltage E = EMSinωT, EM is the peak value of AC voltage, i.e. the maximum value, while DC voltage is constant, AC power supply also has an effective value. According to the calculation of current thermal effect, the effective value is indicated or measured on the general nameplate or voltmeter, just because Alternating current is a periodic change, which can make the capacitor charge and discharge for a short time, so alternating current can pass through the capacitor and direct current cannot pass through the current.

DC regulated power supply: Electronic device that can provide stable DC power for load. When the voltage or load resistance of the AC power supply changes, the DC output voltage of the regulator will remain stable. With the development of electronic equipment to high precision, high stability and high reliability, DC stabilized power supply puts forward high requirements for the power supply of electronic equipment.

AC regulated power supply: Electronic device that can provide stable AC power for load. Also known as AC voltage regulator. The output is alternating current. All kinds of electronic equipment require a relatively stable alternating current power supply. Especially when computer technology is applied to various fields, the use of direct power supply from the alternating current grid without any measures can not meet the needs.

Existing reviews of 10A 30V 300W Variable DC Power Supply
Stable output voltage and current
In my experiment, this adjustable DC power supply provided very stable output voltage and current, and the adjustment knob of the power supply is very sensitive, which can quickly and accurately adjust the output voltage and current. The values on the display screen are clear and easy to read, allowing me to monitor the output status at any time. I used it for some electronic component testing and battery charging, and it performed very well.
From: Izefia | Date: 10/10/2024
Was this review helpful? Yes No (0/0)
Good power supply, easy to adjust voltage and current
This is a very good DC power supply, it is very accurate and has a little button that looks like an LED indicator. I thought I had a problem with the unit until I realized that it was actually a button to turn on the output. When the output is turned on, the unit displays the voltage and current of the output.
From: Joshua | Date: 02/06/2022
Was this review helpful? Yes No (0/0)
10A 30V DC power supply perfect for student
I am a college student majoring in Electrical Engineering of Technology. This DC power supply is perfect for working at home on your circuits. Whether you didn't finish a lab, or just want the extra practice this device works brilliantly. It is adjustable from 0V-30V which is perfect for beginner/intermediate circuitry.
From: Alex Jacobs | Date: 16/03/2020
Was this review helpful? Yes No (0/0)
