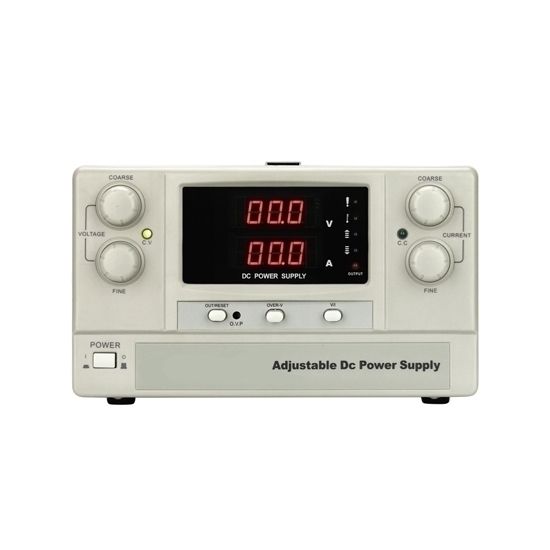

50A 60V 3000W Variable DC Power Supply

Write a review

$1,150.39

Shop 0 to 50A, 0 to 60V variable DC power supply at economical price. It is switching mode with 3000W DC output, selectable single phase 110V or 220V±10% AC input, 3 digit LED display. Output voltage and current are continuously adjustable at nominal value, with constant voltage (CV) / constant current (CC) output precision.

Input Voltage *

SKU: ATO-VDCPS6050K

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

50 amp 60 volt variable DC power supply features adjustable voltage and current outputs, allowing users to fine-tune settings based on specific requirements. The versatility and precision of this adjustable DC power supply make it an essential tool for electronics labs, testing environments, and various technical applications, offering reliability and adaptability in powering electronic components and systems.

Specification

Model	ATO-JK6050K
Input Voltage	Single Phase 110V or 220V AC (+/- 10%)
Output Voltage Range	0-60V
Output Current Range	0-50A
Output Power	3000W
Frequency	50Hz/60Hz
Adjustable Mode	Pulse Width Modulation (PWM) Type
Transistor Connection Method	Full Bridge
Output Type	Dual
Display	3 digit
Display Accuracy	Output Voltage ±0.5%, Output Current ±0.5%
Efficiency	>86%
Load Regulation (CV)	Stable Voltage ≤0.5%, Constant Current ≤0.5%
Line Regulation (CV)	Stable Voltage ≤0.5%
Ripple Voltage	≤1%
Insulation Resistance	Input-Output: ≥20MΩ
	Input-Chassis: ≥20MΩ
	Output-Chassis:≥80MΩ
Dielectric Strength	Input-Output: AC1500V, 10mA, 1 minute
	Input-Chassis: AC1500V, 10mA, 1 minute
	Output-Chassis: AC1500V, 10mA, 1 minute
Protection	Over Load and Over Voltage Protection
Current Imbalance	≤5% + 0.5A
Operating Ambient	-10℃ to + 45℃/ 85%RH
Storage Ambient	-20℃ to + 70℃/ 80%RH
Overheat Protection Ambient Threshold	70℃ to 80℃
Mean Time Between Failures	≥50000h
Cooling Duct	Internal Cooling Air Duct Forward and Exit
Certification	CE, RoSH
Warranty	12 Months
Size	303 (L) x 255 (W) x 155 (H) mm
Weight	13kg

Detail

Details of 50A 60V Adjustable DC Power Supply

Tips: What is the difference between linear and switching variable DC power supplies?

Linear and switching variable DC power supplies differ in their voltage regulation methods and efficiency. In a linear power supply, voltage regulation is achieved through a variable resistor, dissipating excess energy as heat. This method results in a simpler design but lower efficiency, especially when the voltage drop is significant. On the other hand, switching variable DC power supplies use a more complex circuitry involving high-frequency switching transistors and an energy storage component like an inductor or capacitor. This enables them to regulate voltage more efficiently by rapidly switching the input voltage on and off. Switching supplies are generally more energy-efficient than linear ones, producing less heat and providing a compact design. However, they may introduce more electrical noise and complexity to the system.
