    100A 4-20S Electronic Speed Controller (ESC) for Single BLDC Motor

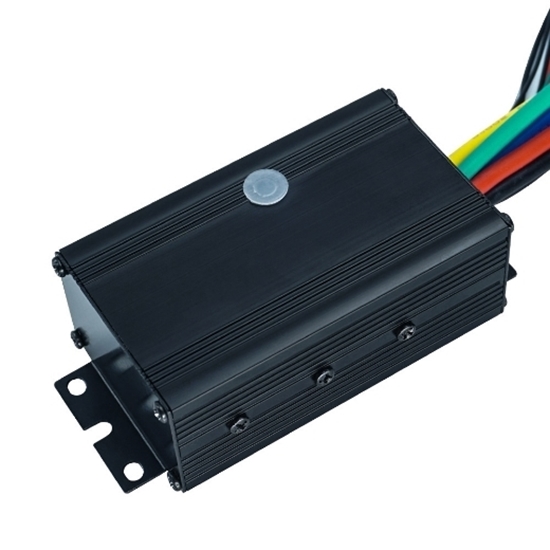

    Picture of 100A 4-20S Electronic Speed Controller (ESC) for Single BLDC Motor
    Picture of 100A 4-20S Electronic Speed Controller (ESC) for Single BLDC Motor
    Picture of 100A 4-20S Electronic Speed Controller (ESC) for Single BLDC Motor
    Picture of 100A 4-20S Electronic Speed Controller (ESC) for Single BLDC Motor

    100A 4-20S Electronic Speed Controller (ESC) for Single BLDC Motor

    5 out of 5 based on 1 reviews | Write a review
    $279.42
    100 amp ESC controller is available with safe voltage 14-84V (4 -20S), designed for brushless dc motor. The electronic speed controller can turn on when you turn your car on and activates when it detects that you may lose control, mainly used for the robot, RC cars, DUY off-road vehicles, electric cars and bicycles.
    SKU: ATO-ESC-100-420S
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Factory price 100A ESC controller for sale online. BLDC electronic speed controller features 14-84V (4-20S) safe voltage, used in remote control and vehicle applications. The ESC controller can automatically help stabilize your car when it detects a momentary loss of control.

    Specifications

    • Model: ATO-VC-75S-N-100
    • Voltage: 14V-84V (4-20S)
    • BEC: 5V@1A
    • Continuous Current: 100A
    • Instantaneous Current: 120A
    • Size: 85mmx50.7mmx33.8mm
    • EPRM: 150000
    • Weight: 0.5kg
    • Wire Size: 12 AWG
    • Regenerative capacity: Yes
    • Programmable: Yes
    • Communication Method: PPM, ADC, NRF, UART
    • Communication Ports: USB, CAN, UART
    • Supported Sensors: ABI, HALL, AS5047, AS5048A

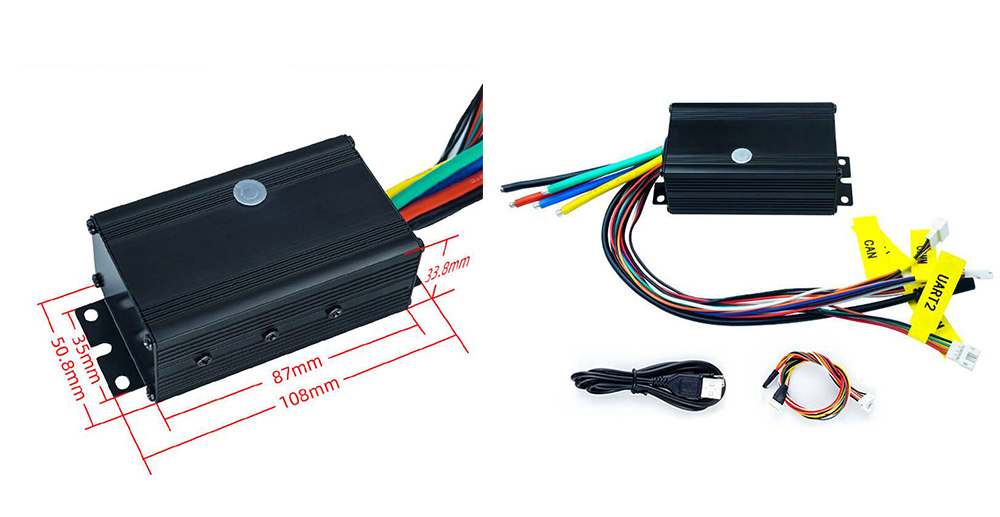

    Dimension (Unit: mm)

    100A 4-20S Electronic Speed Controller Dimension

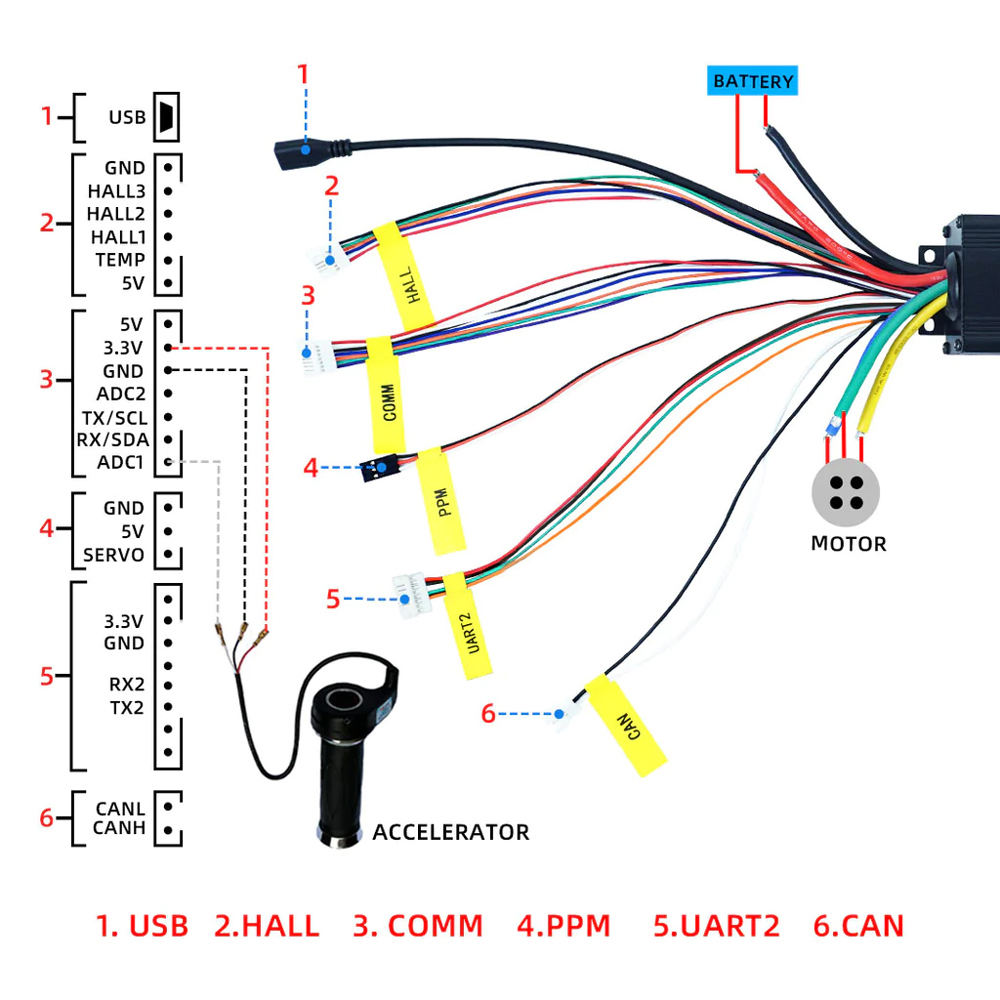

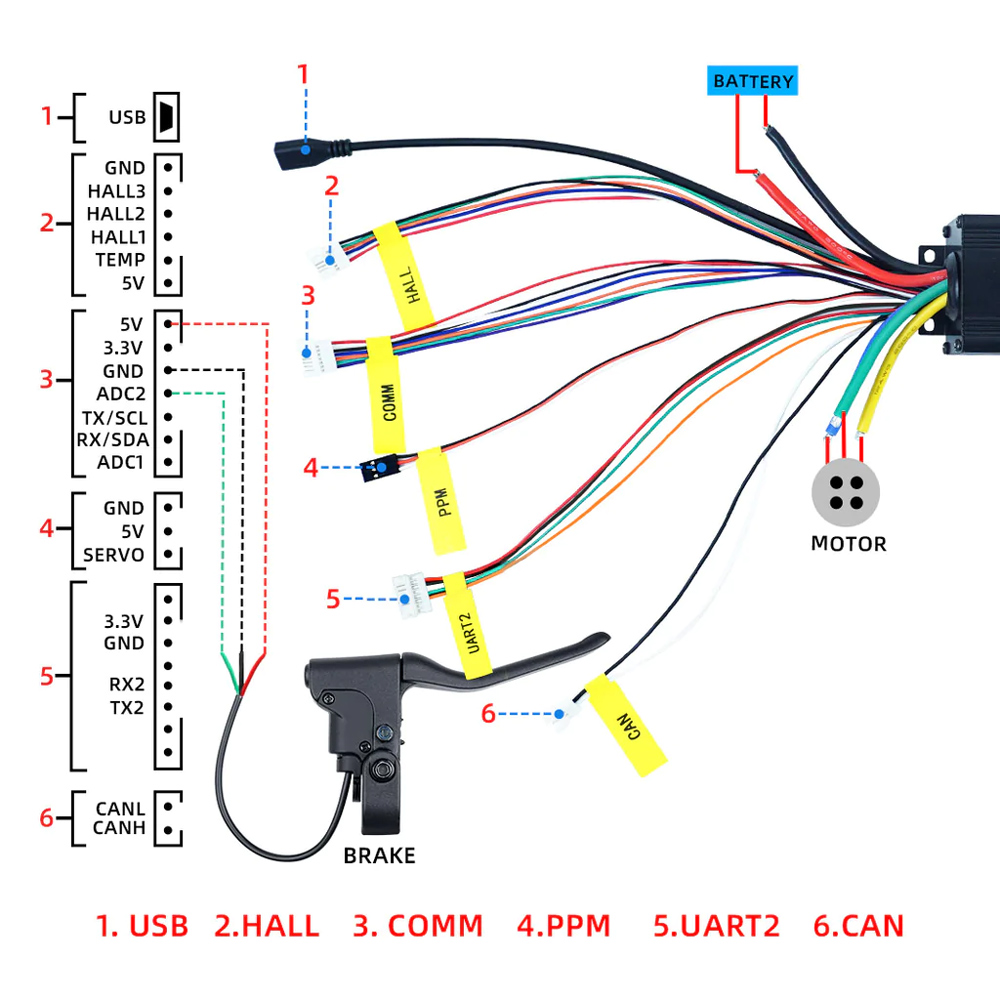

    Wiring diagram

    100A 4-20S Electronic Speed Controller Wiring Diagram

    100A 4-20S Electronic Speed Controller Wiring Diagram

    Tips: What is an electronic speed controller?

    The electronic Speed Controller (ESC) is an important part of the electric propulsion system hardware. It acts like the brain of the system, telling the motor how fast to run based on data signals it receives from the throttle controller.

    For smaller applications such as drones and RC vehicles, the controller is named "ESC," while for larger manufacturing applications it might be called an electronic control unit, inverter, or motor controller.

    Existing reviews of 100A 4-20S Electronic Speed Controller (ESC) for Single BLDC Motor
    Useful electronic speed controller
    Arrived quickly. It took me a while to figure out how to use it. I wanna say this 100A ESC controller is amazing. It works great on my e-bike now.
    From: James | Date: 11/10/2022
    Was this review helpful? Yes No (0/0)
    Load more reviews...
    Write your review for 100A 4-20S Electronic Speed Controller (ESC) for Single BLDC Motor
    • Only registered users can write reviews
    • Bad
    • Excellent
