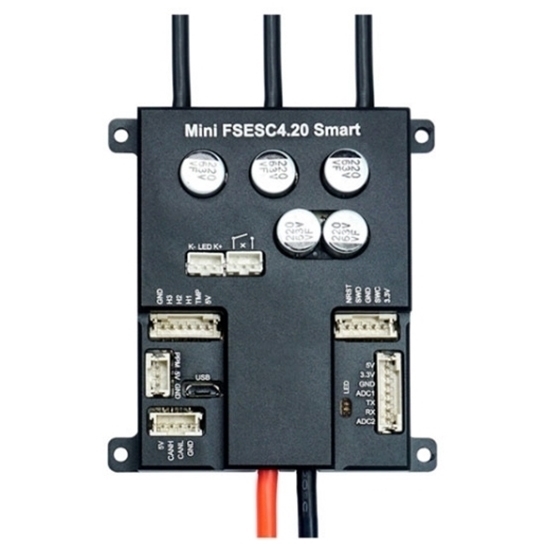

50A 3-12S Electronic Speed Controller (ESC) for Single BLDC Motor

4.7 out of 5 based on 4 reviews | Write a review

$455.86

Cheap 50 amp electronic speed controller is designed for a brushless dc motor. The ESC controller with safe voltage 8V-60V (3-12S), is mainly used for the robot, RC cars, robot arms, DUY off-road vehicles and bicycles. Brushless ESC controller can turn on when you turn your car on and activates when it detects that you may lose control.

SKU: ATO-ESC-50-312S

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Document

50A electronic speed controller is used for a brushless motor. Low price brushless ESC controller has a safe voltage of 8V-60V (4-12S) and is designed to automatically help stabilize your car when it detects a momentary loss of control, widely used in remote control and vehicle applications.

Specifications

Model: ATO-ESC-S50A
Voltage: 8V-60V (3-12S)
Firmware: Latest firmware version
Power Current: 50A continuous/200A peak
Signal: PWM input
Communication Port: USB, CAN, UART
Control Modes: BLDC, FOC
Size: 83mmx62mmx22.5mm
Switch Off: Fireproof flower/intelligent version of fireproof flower switch
Input Source: PPM, analog, NRF, NYKO, KAMA, NUNCHUCK
Support Sensor: ABI, HALL, AS 5047, AS5048A

Dimension (Unit: mm)

50A 3-12S Electronic Speed Controller for Single BLDC Motor Dimension

Wiring diagram

50A 3-12S Electronic Speed Controller for Single BLDC Motor Wiring Diagram

Tips: How does an electronic speed controller control speed?

An ESC or an Electronic Speed Controller controls the brushless motor movement or speed by activating the appropriate MOSFETs to create the rotating magnetic field so that the motor rotates. The higher the frequency or the quicker the ESC goes through the 6 intervals, the higher the speed of the motor will be.

Electronic Speed Controller Catalog
