50A/100A 3-12S Electronic Speed Controller (ESC) for Dual BLDC Motor

High quailty electronic speed controller is used for dual BLDC motor, current continuous unilateral 50A, peak bilateral 400A, voltage 8V-60V (3-12S). Cheap ESC controller can automatically help stabilize your car when it detects a momentary loss of control, widely used in remote control and vehicle applications.

Specifications

• Model: ATO-ESC-D50A
• Voltage: 8V-60V (3-12S)
• Firmware: Latest firmware version
• Power Current: 50A continuous/200A peak
• Signal: PWM input
• Communication Port: USB, CAN, UART
• Control Modes: BLDC, FOC
• Size: 84.1mmx121mmx22.6mm
• Switch Off: Fireproof flower/intelligent version of fireproof flower switch
• Input Source: PPM, analog, NRF, NYKO, KAMA, NUNCHUCK
• Support Sensor: ABI, HALL, AS 5047, AS5048A

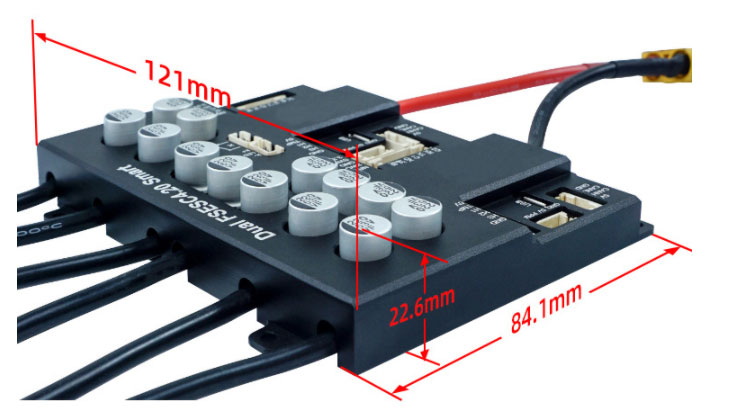

Dimension (Unit: mm)

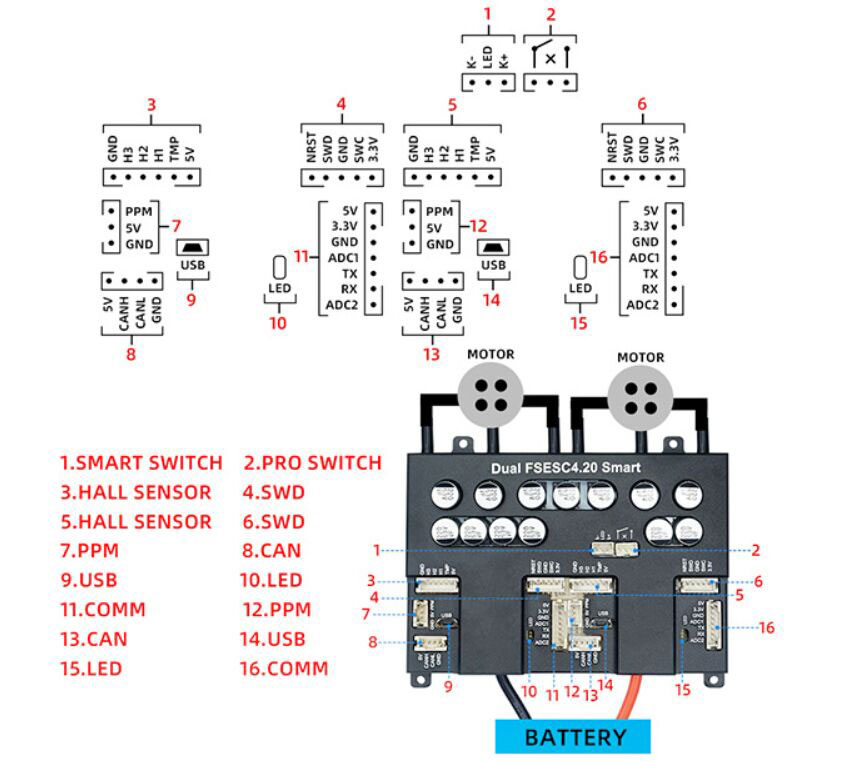

Wiring diagram

Tips: How to choose the parameters of the 3-12S ESC controller?

The latest version simplifies many steps, you only need to fill in some parameters corresponding to the type of battery, the number of battery sections, whether the motor is inner rotor or outer rotor, whether it is a contour motor or belt motor, and the gear ratio of the belt motor; after the first selection is completed, the system will automatically match the corresponding parameters, you only need to adjust according to your personal preference. You only need to adjust the starting force according to your personal preference to complete the tuning.
