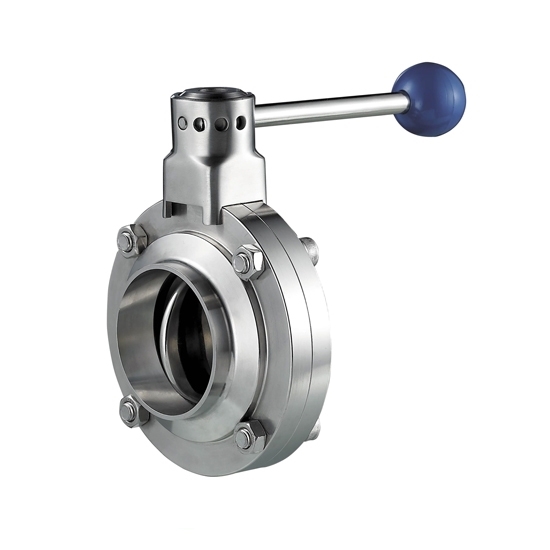

    1.5 inch Stainless Steel Sanitary Butterfly Valve

    5 out of 5 based on 1 reviews | Write a review
    $96.39
    Welded and quick connect sanitary butterfly valve at factory price, with EPDM or PTFE seat, can be controlled by an actuator or manually operated with a handle, 1.5 inch size, 304 stainless steel body material, which is used in food-processing, pharmacy and chemical industries for flow control.
    *
    SKU: ATO-BV-15I
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    1.5 inch manual operated sanitary butterfly valve also can be controlled by an electric actuator or pneumatic actuator. It is a stainless steel hygienic valve with simple structure and purity requirements for food-processing and chemical industries.

    Specification

    Model ATO-BV-15I
    Type SS Sanitary Butterfly Valve
    Size 1.5 inch
    Connection Method (Optional) Welded End/ Quick Connect End
    Drive Method Manual
    Body Material 304 Stainless Steel (Default) / 316 Stainless Steel
    Washer and Gasket EPDM Comforms to PFA 177.2600
    Handle AISI 304/ PP
    Surface Finishing Ra≤0.8
    Operating Torque 3Nm
    Operating Temperature -10℃~+120℃
    Max. Pressure 1MPa
    Min. Pressure 0.02MPa p.abs
    Weight 1.8 kg
    Certificate PED97-23EC, FDA.177.2600

    Dimensions (Unit: mm)

    Dimensions of Welded End and Quick Connect End Stainless Steel Sanitary Butterfly Valve

    Size Dn D D1 J H H1 A1 A2
    1.5 inch 35.1 38.1 50.5 126 44.5 43.5 50 70

    Tips: What is tri clamp sanitary butterfly valve?

    A sanitary butterfly valve is a stainless steel BF valve that uses a circular butterfly plate as an opening and closing part and rotates with the valve stem to open, close and adjust the fluid passage. The butterfly plate of the butterfly valve is installed in the diameter direction of the pipeline. In the cylindrical passage of the butterfly valve body, the disc-shaped butterfly plate rotates around the axis, and the rotation angle is between 0° and 90°. When the rotation reaches 90°, the valve is fully open.

    Existing reviews of 1.5 inch Stainless Steel Sanitary Butterfly Valve
    Nice sanitary butterfly valve.
    This 1.5 inch sanitary butterfly valve is well done, the fit and finish is uniform. And the valve operation is smooth. Fast service and as describe, it works with value for the buck. I would definitely look to this supplier in the future.
    From: Craig | Date: 15/03/2022
    Was this review helpful? Yes No (0/0)
