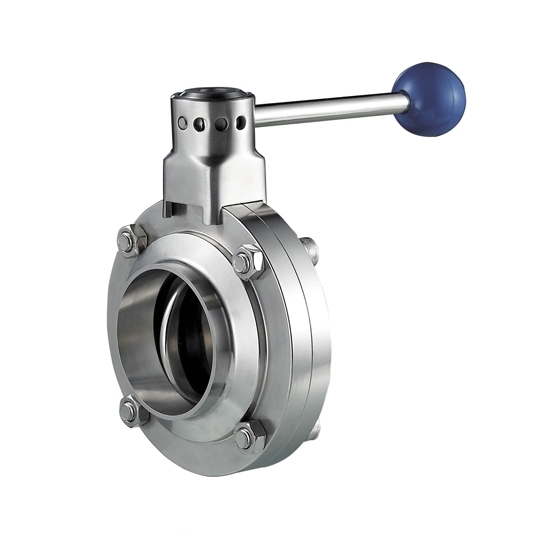

    4 inch Stainless Steel Sanitary Butterfly Valve

    5 out of 5 based on 1 reviews | Write a review
    $169.99
    Welded and quick connect hand operated SS sanitary butterfly valve is a hygienic valve with purity requirements for food and chemical industries. This 4 inch manual BF valve is made from 304 stainless steel, which is simple structure and high performance for flow control, throttling and steam service.
    *
    SKU: ATO-BV-4I
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Manual operated sanitary butterfly valve also can be controlled by an electric actuator or pneumatic actuator. It is a stainless steel hygienic BF valve with simple structure and purity requirements for food-processing and chemical industries.

    Specification

    Model ATO-BV-4I
    Type SS Sanitary Butterfly Valve
    Size 4 inch
    Connection Method (Optional) Welded End/ Quick Connect End
    Drive Method Manual
    Body Material 304 Stainless Steel (Default) / 316 Stainless Steel
    Washer and Gasket EPDM Comforms to PFA 177.2600
    Handle AISI 304/ PP
    Surface Finishing Ra≤0.8
    Operating Torque 3Nm
    Operating Temperature -10℃~+120℃
    Max. Pressure 1MPa
    Min. Pressure 0.02MPa p.abs
    Weight 3.5 kg
    Certificate PED97-23EC, FDA.177.2600

    Dimensions (Unit: mm)

    Dimensions of Welded End and Quick Connect End Stainless Steel Sanitary Butterfly Valve

    Size Dn D D1 J H H1 A1 A2
    4 inch 97.6 101.6 119 144 79 50 64 86.5

    Tips: Why does the sanitary butterfly valve leak?

    Sanitary butterfly valves often leak air and cannot close. This problem is most likely due to the large pressure difference between the two sides of the pipeline controlled by the butterfly valve. Therefore, when the butterfly valve is opened, the internal disc is constantly impacted and damaged. The same is true when closing, due to the large pressure on the side to be closed, an error occurs during closing, which causes this undesirable phenomenon. Of course, the sanitary butterfly valve itself may also reduce the air tightness due to internal wear. Certain pressure regulating measures can be set downstream of the butterfly valve control pipeline to avoid such undesirable phenomena that often occur in butterfly valves.

    Existing reviews of 4 inch Stainless Steel Sanitary Butterfly Valve
    Solid Construction
    This 4 inch sanitary butterfly valve looks great. The machining is well done, the fit and finish is uniform and well done. The valve operation is smooth!
    From: Yeager | Date: 26/05/2022
    Was this review helpful? Yes No (0/0)
