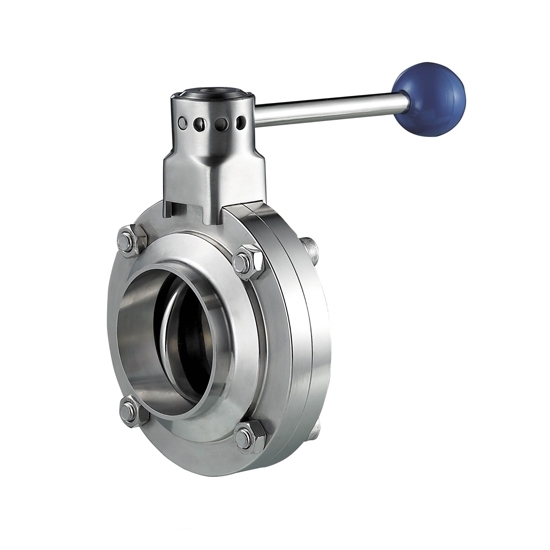

    3/4 inch Stainless Steel Sanitary Butterfly Valve

    5 out of 5 based on 2 reviews | Write a review
    $89.99
    Cost-effective SS sanitary butterfly valve for sale, 304 stainless steel body material, EPDM seat, is used in food-processing, pharmacy and chemical industries for flow control. This 3/4 inch BF valve can be operated through an actuator or with the handle, and it comes with welded end or quick connect end.
    *
    SKU: ATO-BV-34I
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Manual operated sanitary butterfly valve also can be controlled by an electric actuator or pneumatic actuator. It is a stainless steel hygienic valve with simple structure and purity requirements for food-processing and chemical industries.

    Specification

    Model ATO-BV-34I
    Type SS Sanitary Butterfly Valve
    Size 3/4 inch
    Connection Method (Optional) Welded End/ Quick Connect End
    Drive Method Manual
    Body Material 304 Stainless Steel (Default) / 316 Stainless Steel
    Washer and Gasket EPDM Comforms to PFA 177.2600
    Handle AISI 304/ PP
    Surface Finishing Ra≤0.8
    Operating Torque 3Nm
    Operating Temperature -10℃~+120℃
    Max. Pressure 1MPa
    Min. Pressure 0.02MPa p.abs
    Weight 1.5 kg
    Certificate PED97-23EC, FDA.177.2600

    Dimensions (Unit: mm)

    Dimensions of Welded End and Quick Connect End Stainless Steel Sanitary Butterfly Valve

    Size Dn D D1 J H H1 A1 A2
    3/4 inch 16.1 19.1 25.4 126 40 43.5 50 66

    Tips: Functions of sanitary butterfly valves

    The opening and closing part of the sanitary butterfly valve is a disc-mounted valve plate, which rotates around its own axis in the valve body during operation, so as to achieve the purpose of opening and adjustment. The working angle of sanitary butterfly valve from fully open to fully closed is usually less than 90°. Usually, the butterfly valve and the disc rod itself have no self-locking ability. For the positioning of the disc, a turbo reducer must be installed on the valve rod. If a turbo reducer is used, not only can the disc have the self-locking ability, but also the operation of the butterfly valve can be more convenient.

    Existing reviews of 3/4 inch Stainless Steel Sanitary Butterfly Valve
    Very pleased with these valves
    Have purchased several of these and will continue to purchase more butterfly valves as needed. The pin locking mechanism is nice and easy to use, I have been using them for 2 weeks now and they work well.
    From: Thorsten | Date: 29/06/2022
    Was this review helpful? Yes No (0/0)
    Good quality.
    These sanitary butterfly valves work as expected and very sturdy construction. Easy to disassemble to clean and sanitize. Happy with these BF valves.
    From: Aaron | Date: 15/03/2022
    Was this review helpful? Yes No (0/0)
