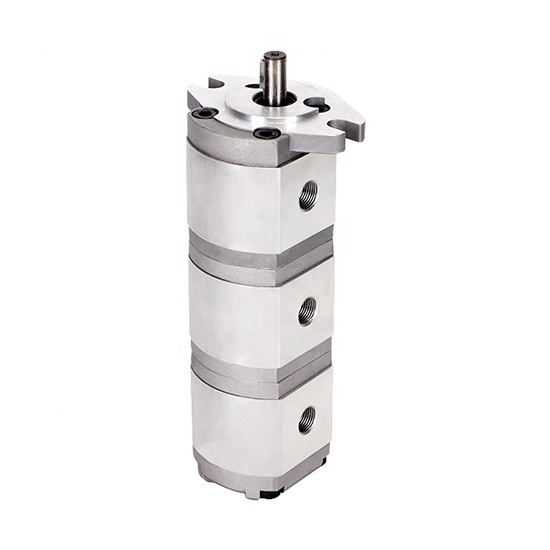

    1/2/3 GPM Hydraulic Triple Gear Pump, 3600 psi

    5 out of 5 based on 2 reviews | Write a review
    $479.69
    Hydraulic triple gear pump with 3 working pumps. Displacement 1/2/3 Max. GPM for selection, operating pressure 3000~3600 psi, rated speed 1800 rpm, maximum 4300 rpm, volumetric efficiency 88~91%, mechanical efficiency 85~88%, oil inlet/outlet thread 3/8 inch, clockwise/counterclockwise rotary. Professional manufacturer, competitive price.
    *
    *
    *
    *
    SKU: ATO-HTGP-124536
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Factory price hydraulic triple gear pump for sale. Displacement 1/2/3 Max. GPM, working pressure 3000~3600 psi, speed 1800~4300 rpm, clockwise or counterclockwise rotary is available, SAE 2-bolt flange mounted. Hydraulic triple gear pump has 3 working pumps. Wide applications: industrial/agricultural/commercial machinery, construction, environmental protection, chemical equipment and so on.

    Specification

    Model ATO-HGP-111A
    Displacement mL/ rev
    0.8 1 2 3 4 5 6 7.8
    Max. GPM (Gallon/min)
    0.4 0.5 1 1.4 1.9 2.4 2.8 3.7
    Rated Speed 1800 rpm 1800 rpm 1800 rpm 1800 rpm 1800 rpm 1800 rpm 1800 rpm 1800 rpm
    Max. Speed 4300 rpm 4300 rpm 4300 rpm 4300 rpm 3200 rpm 3200 rpm 3200 rpm 3200 rpm
    Min. Speed 1000 rpm 1000 rpm 1000 rpm 600 rpm 600 rpm 600 rpm 600 rpm 600 rpm
    Rated Pressure 3000 psi (21 MPa)
    Max. Pressure 3600 psi (25 MPa)
    Volumetric Efficiency 88% 88% 88% 91% 91% 91% 91% 91%
    Mechanical Efficiency 85% 85% 85% 88% 88% 88% 88% 88%
    Inlet Thread PT 3/8" PT 1/2"
    Outlet Thread PT 3/8"
    Rotary Direction clockwise, counterclockwise
    Working Temperature -20℃~70℃
    Mounting Flange SAE 2-bolt

    Note:

    1. Please use ATO gear pump with sufficient oil, otherwise there is a risk of burnout!
    2. Calculate the actual displacement value according to the formula: Gallon/min=displacement (ml/rev)*rated speed 1800rpm/3785.41L (speed variation range 500rpm-3000rpm).

    Features

    • Hydraulic triple gear pump uses high-strength aluminum alloy shell and alloy steel hard gear transmission, which is light in weight and stable in transmission.
    • Installation of the hydraulic triple gear pump is SAE 2-bolt standard flange. Input shaft connection is woodruff key. Connection type of the oil inlet and outlet ports is thread.
    • Hydraulic triple gear pump has an automatic compensation mechanism for axial and radial clearances, which enables the oil pump to maintain high volumetric efficiency and high mechanical efficiency for a long time.
    • Hydraulic triple gear pump uses SP gears, with small fluctuation, high pressure, low noise and stable performance.
    • Hydraulic triple gear pump uses composite material bearings and high-performance sealing elements, has a small starting torque and good tightness, and can work efficiently under harsh working conditions.
    • The front and rear gear pumps work independently of each other, and any combination of displacements can be customized according to requirements.

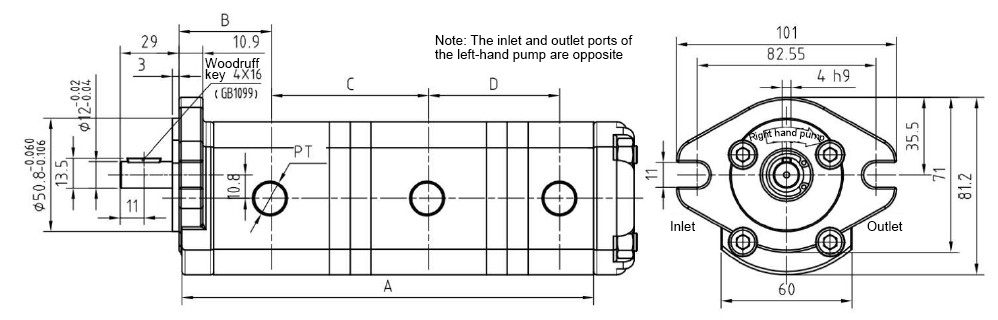

    1/2/3 GPM Hydraulic Triple Gear Pump Dimensions Diagram (Unit: mm)

    Dimensions of 1/2/4/5 GPM Hydraulic Triple Gear Pump, 3600 psi

    Pump 1 Displacement
    (Max. GPM)
    Pump 2 Displacement (Max. GPM) Pump 3 Displacement (Max. GPM) A (mm) B (mm) C (mm) D (mm) Weight (kg)
    3.7 0.4 0.4 201.5 45.5 67 54 3.0
    2.8 0.4 0.4 195.5 42.5 64 54 2. 9
    2.4 0.4 0.4 191.5 40.5 62 54 2.8
    3.7 0.5 0.5 205.5 45.5 68 56 3.1
    2.8 0.5 0.5 199.5 42.5 65 56 3.0
    2.4 0.5 0.5 195.5 40.5 63 56 2.9
    3.7 1 1 210.5 45.5 69.5 58.5 3.3
    2.8 1 1 204.5 42.5 66.5 58.5 3.2
    2.4 1 1 200.5 40.5 64.5 58.5 3.1
    3.7 1.4 1.4 221.5 45.5 72 64 3.4
    2.8 1.4 1.4 215.5 42.5 69 64 3.4
    2.4 1.4 1.4 211.5 40.5 67 64 3.3
    0.4 0.4 0.4 175.5 32.5 54 54 2.5
    0.5 0.5 0.5 181.5 33.5 56 56 2.7
    1 1 1 189 34.8 58.5 58.5 2.9
    1.4 1.4 1.4 205.5 37.5 64 64 3.2
    1.9 1.9 1.9 212.5 38.5 66 66 3.2
    2.4 2.4 2.4 207.5 40.5 70 61 3.0
    2.8 2.8 2.8 215 42.5 74 63 3.2
    3.7 3.7 3.7 227.5 45.5 80 65 3.4

    *Note: the dimensions of other displacement combinations will not be listed one by one. Please contact us for more information.

    Details

    1/2/3 GPM Hydraulic Triple Gear Pump Details

    Tips: Hydraulic triple gear pump maintenance.

    1. According to the season, add or replace the hydraulic oil that meets the requirements to the specified oil level for the hydraulic triple gear pump. Take out the foreign matter in the oil pipe and tighten the bolt or nut of joint.
    2. Replace the aging or damaged skeleton oil seal or O-shaped sealing rubber ring.
    3. Replace worn gears or sleeves. If the wear degree slight, grind the end face smooth on flat plate. The allowable error of unevenness is 0.03mm, and the end face of the upper shaft sleeve is lower than the upper plane of the pump body (the normal value is lower than 0.10~0.15mm).
    4. The unloading groove on shaft sleeve must be installed on the side of the low pressure chamber to eliminate the harmful dead volume generated when the gear meshes.
    5. Before pressing in the self-tightening oil seal, a layer of lubricating oil should be applied to its surface. Note that the oil blocking edge faces the front cover and cannot be installed backwards.
    6. After disassembling the hydraulic triple gear pump, thoroughly clean the pump body and internal parts before replacing the seals. Dip kerosene with fine sandpaper and gently push it flat, and then install a new seal.

    Existing reviews of 1/2/3 GPM Hydraulic Triple Gear Pump, 3600 psi
    Do you have a larger version pump?
    So then 50 gpm at max speed. Do you have a larger version pump? GPM of 60 or higher?
    From: Benjamin | Date: 26/11/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Yes, our gear pump is 50 gpm at max speed. If it is required to do 60GPM, it needs to be customized, but the MOQ requirement is 100PCS.
    Excellent product
    I've bought other brands before. The noise is very loud. I can hear it every 50 meters. Now I've replaced the ATO pump. The noise is much less. The power of the three working gears is very strong. I highly recommend it.
    From: Nina | Date: 22/07/2021
    Was this review helpful? Yes No (0/0)
