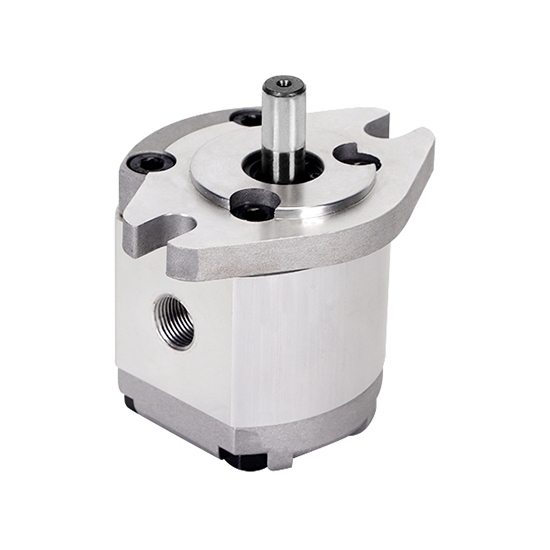

1/2/2.5/3 GPM Hydraulic Single Gear Pump, 3600 psi

5 out of 5 based on 6 reviews | Write a review
$149.69
Cheap hydraulic single gear pump for sale. Displacement 1/2/2.5/3 Max. GPM for selection, rated pressure 3000 psi, maximum pressure 3600 psi, rated speed 1800 rpm, max speed 4300 rpm, volumetric efficiency 88%, mechanical efficiency 85%, oil inlet/outlet port PT 3/8" thread, optional clockwise or counterclockwise rotary, SAE 2-bolt mounted.
*
*
SKU: ATO-HGPP-1245
30-day Returns
Free Shipping
Delivery date: 6-12 days

Buy hydraulic single gear pump at low price. Optional displacement 1/2/2.5/3 Max. GPM, other values are available, maximum pressure 3600 psi, maximum speed 4300 rpm, oil inlet and outlet connection 3/8 inch thread, clockwise or counterclockwise rotary. Small Hydraulic gear pump for industrial/commercial uses.

Specification

Model ATO-HGP-1A
Displacement mL/ rev
0.8 1 2 3 4 5 6 7.8
Max. GPM (Gallon/min)
0.4 0.5 1 1.4 1.9 2.4 2.8 3.7
Rated Speed 1800 rpm 1800 rpm 1800 rpm 1800 rpm 1800 rpm 1800 rpm 1800 rpm 1800 rpm
Max. Speed 4300 rpm 4300 rpm 4300 rpm 4300 rpm 3200 rpm 3200 rpm 3200 rpm 3200 rpm
Min. Speed 1000 rpm 1000 rpm 1000 rpm 600 rpm 600 rpm 600 rpm 600 rpm 600 rpm
Rated Pressure 3000 psi (21 MPa)
Max. Pressure 3600 psi (25 MPa)
Volumetric Efficiency 88% 88% 88% 91% 91% 91% 91% 91%
Mechanical Efficiency 85% 85% 85% 88% 88% 88% 88% 88%
Weight 0.95 kg 1 kg 1.05 kg 1.15 kg 1.18 kg 1.2 kg 1.3 kg 1.4 kg
Rotary Direction clockwise, counterclockwise
Working Temperature -20℃~70℃
Mounting Flange SAE 2-bolt

Note:

  1. Please use ATO gear pump with sufficient oil, otherwise there is a risk of burnout!
  2. Calculate the actual displacement value according to the formula: Gallon/min=displacement (ml/rev)*rated speed 1800rpm/3785.41L (speed variation range 500rpm-3000rpm).

Features

  • Hydraulic single gear pump uses high-strength aluminum alloy shell and alloy steel hard gear transmission, which is light in weight and stable in transmission.
  • Hydraulic single gear pump is suitable for SAE standard flange installation. The input shaft connection form is flat key shaft. Connection type of the oil inlet and outlet ports is threaded.
  • Hydraulic single gear pump has an automatic compensation mechanism for axial and radial clearances, which enables the oil pump to maintain high volumetric efficiency and high mechanical efficiency for a long time.
  • Hydraulic single gear pump uses SP gears, with small fluctuation, high pressure, low noise and stable performance.
  • DU composite material bearings and high-performance sealing elements, small starting torque, good sealing performance, and strong anti-fouling ability, so that hydraulic single gear pump can work efficiently under harsh working conditions.

Details

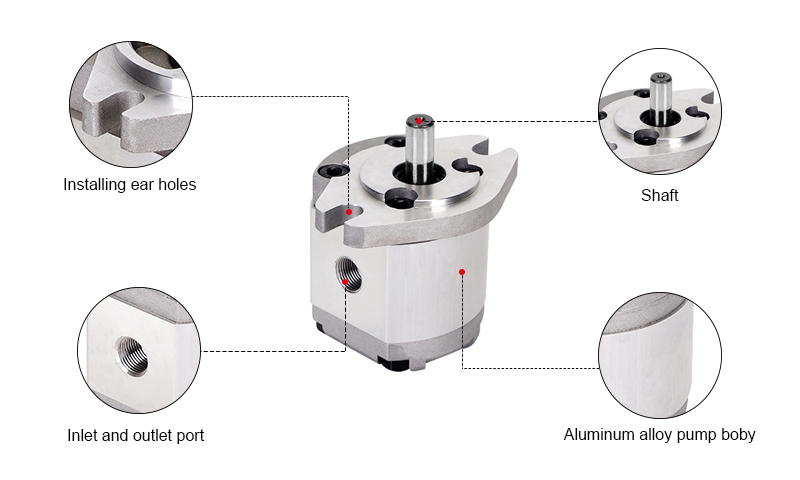

Hydraulic Single Gear Pump Details

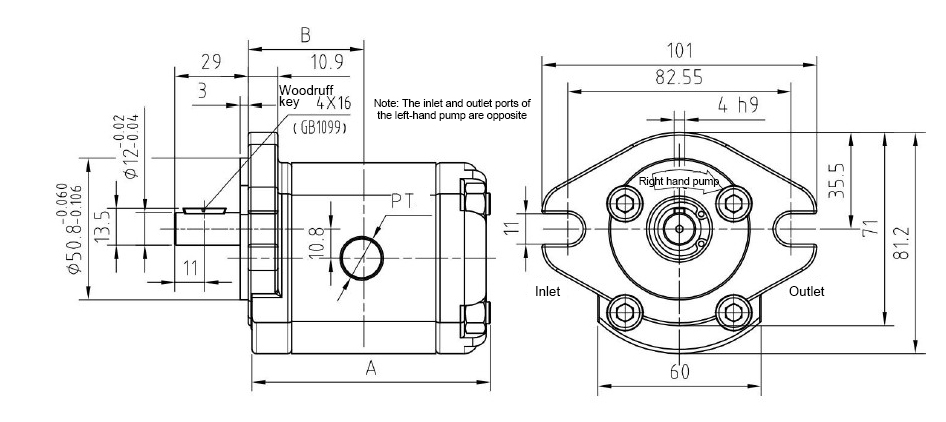

1/2/2.5/3 GPM Hydraulic Single Gear Pump Dimensions Diagram (Unit: mm)

Dimensions of Hydraulic Single Gear Pump, 3600 psi

Displacement A B Oil Outlet Oil Inlet
0.8 mL/ rev 67.5 32.5 PT 3/8 inch PT 3/8 inch
1 mL/ rev 69.5 33.5
2 mL/ rev 72 34.8
3 mL/ rev 77.5 37.5
4 mL/ rev 79.5 38.5
5 mL/ rev 83.5 40.5
6 mL/ rev 87.5 42.5
7.8 mL/ rev 93.5 45.5 PT 1/2 inch

Tips: Commonly used calculation formula of hydraulic single gear pump.

Motor power:W = P × q × n/54000 (kW)
P = gear pump working pressure (MPa)
Q = gear pump displacement (GPM)
n = motor speed (rpm)

Gear pump torque: T = P × q/1.7π(N.m)

Motor torque: T = 9550 × W/n.

Oil hose inner diameter matching: oil suction pipe inner diameter d = (0.12~0.18) × q × n
q = gear pump displacement (GPM)
n = motor speed (rpm)

Note: tubing inner diameter d = (0.06~0.09) × q × n

Oil return pipe inner diameter d = (0.09~0.12) × q × n

Flow calculation: flow L = π × d2h/4000t (GPM)

Piston rod diameter d (mm), piston rod stroke h (mm), working time t (s), displacement: q = 60 × L/n (ml/r)

Existing reviews of 1/2/2.5/3 GPM Hydraulic Single Gear Pump, 3600 psi
Looking for a replacement gear pump
I am looking for a replacement Rotary Gear Pump to replace a PFG-05-10A3 made under Brown
From: anja | Date: 28/08/2023
Was this review helpful? Yes No (0/0)
ATO Responded
Based on the parameters of your Brown & Sharpe Rotary Gear Pump, we recommend this product.
This pump can meet your needs. Please select "the "0.5 GPM" variant in the page drop-down menu, and check out the Dimensions Diagram down the page. Please note that our pump is 1mL/cycle, and your pump is 0.0003 gal/cycle. (~1.136mL/cycle)
High efficiency hydraulic gear pump
I purchased this hydraulic single gear pump for my fuel tank. Seems like it's very capable of doing job with high efficiency. Performed well, easy to use and compact structure. Highly recommend this gear pump.
From: zoey | Date: 29/12/2022
Was this review helpful? Yes No (0/0)
Gear Pump great work and cheap price
Delivery product in time, immediately used this gear pump as soon as I got it.
Amazing, it is comfortable to use as seller says. It I like this gear pump with good function and it works great. Adjustable operation makes pumping oil easily. Enough working efficiency and low price met me requirement.
From: charles | Date: 25/10/2022
Was this review helpful? Yes No (0/0)
Load more reviews...
