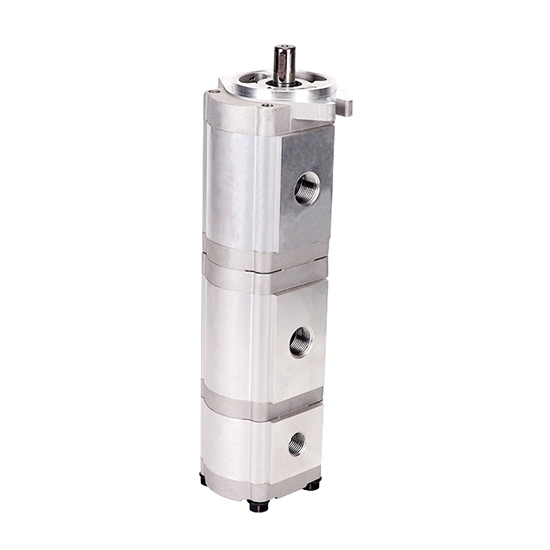

8/9/11/13/14 GPM Hydraulic Triple Gear Pump, 3600 psi

4.7 out of 5 based on 4 reviews | Write a review

$709.69

Reliable manufacturer hydraulic triple gear pump for sale. Optional displacement 8/9/11/13/14 Max. GPM, rated pressure 3000 psi, max 3600 psi, speed 1800~3500 rpm, high volumetric efficiency 90~93%, mechanical efficiency 88~90%, oil inlet thread 3/4 inch, outlet 1/2 inch, clockwise/counterclockwise rotary. Hydraulic triple gear pump has three working pumps, displacement combinations can be customized.

Pump 1 Displacement (Max. GPM) *
Pump 2 Displacement (Max. GPM) *
Pump 3 Displacement (Max. GPM) *
Rotary Direction *

SKU: ATO-HTGP-13580

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Hydraulic triple gear pump with affordable price sales online. Displacement 8/9/11/13/14 Max. GPM, working pressure 3000~3600 psi, rated speed 1800 rpm, max 3500 rpm, clockwise or counterclockwise rotary. Hydraulic triple gear pump uses 3 working pumps, widely used in industrial/agricultural/commercial machinery, construction, environmental protection, chemical equipment and other applications.

Specification

Model	ATO-HGP-333A
Displacement	mL/ rev
	6	8.4	11	14.3	16.5	19.2	23	25	28	30
	Max. GPM (Gallon/min)
	3	4	5	7	8	9	11	12	13	14
Rated Speed	1800 rpm	1800 rpm	1800 rpm	1800 rpm	1800 rpm	1800 rpm	1800 rpm	1800 rpm	1800 rpm	1800 rpm
Max. Speed	3500 rpm	3500 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm	3000 rpm
Min. Speed	700 rpm	700 rpm	600 rpm	600 rpm	500 rpm	500 rpm	500 rpm	500 rpm	500 rpm	500 rpm
Rated Pressure	3000 psi (21 MPa)
Max. Pressure	3600 psi (25 MPa)
Volumetric Efficiency	90%	90%	93%	93%	93%	93%	93%	93%	93%	93%
Mechanical Efficiency	88%	88%	88%	88%	88%	88%	88%	90%	90%	90%
Inlet Thread	3/4 inch								1 inch
Outlet Thread	1/2 inch								3/4 inch
Rotary Direction	clockwise, counterclockwise
Working Temperature	-20℃~70℃
Shaft Extension	φ 17.48mm flat key
Mounting Flange	SAE 2-bolt

Note:

Please use ATO gear pump with sufficient oil, otherwise there is a risk of burnout!
Calculate the actual displacement value according to the formula: Gallon/min=displacement (ml/rev)*rated speed 1800rpm/3785.41L (speed variation range 500rpm-3000rpm).

Features

Hydraulic triple gear pump uses high-strength aluminum alloy shell and alloy steel hard gear transmission, which is light in weight and stable in transmission.
Installation of the hydraulic triple gear pump is SAE 2-bolt standard flange. Input shaft connection is woodruff key. Connection type of the oil inlet and outlet ports is thread.
Hydraulic triple gear pump has an automatic compensation mechanism for axial and radial clearances, which enables the oil pump to maintain high volumetric efficiency and high mechanical efficiency for a long time.
Hydraulic triple gear pump uses SP gears, with small fluctuation, high pressure, low noise and stable performance.
Hydraulic triple gear pump uses composite material bearings and high-performance sealing elements, has a small starting torque and good tightness, and can work efficiently under harsh working conditions.
The front and rear gear pumps work independently of each other, and any combination of displacements can be customized according to requirements.

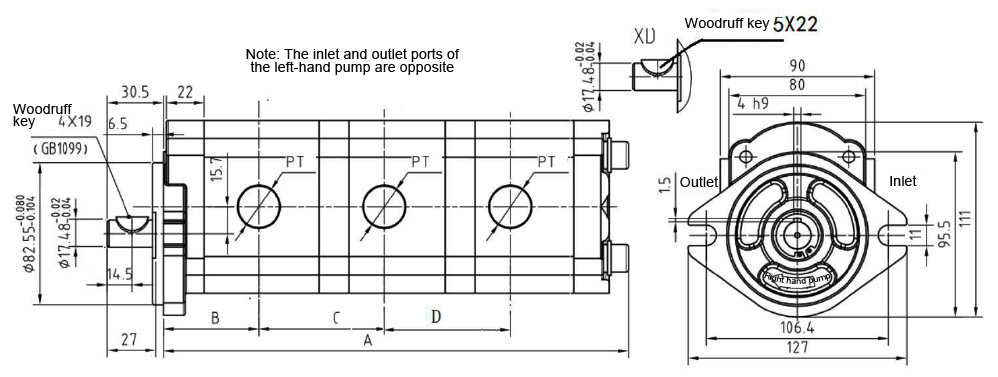

8/9/11/13/14 GPM Hydraulic Triple Gear Pump Dimensions Diagram (Unit: mm)

Pump 1 Displacement (Max. GPM)	Pump 2 Displacement (Max. GPM)	Pump 3 Displacement (Max. GPM)	A (mm)	B (mm)	C (mm)	D (mm)	Weight (kg)
14	3	3	284	70	89.5	69.5	7.5
13	3	3	280	68	87.5	69.5	7.4
12	3	3	276	66	85.5	69.5	7.3
14	4	4	290	70	91	72.5	7.7
13	4	4	286	68	89	72.5	7.6
12	4	4	282	66	87	72.5	7.5
14	5	5	302	70	93	78.5	7.9
13	5	5	298	68	91	78.5	7.8
12	5	5	294	66	89	78.5	7.7
3	3	3	244	50	69.5	69.5	6.4
4	4	4	253	51.5	72.5	72.5	6.7
5	5	5	270	54	78.5	78.5	7.0
7	7	7	286	57	83.5	83.5	7.3
8	8	8	283	59	87.5	80	7.4
9	9	9	291	61	91.5	82	7.6
11	11	11	305	65	98.5	85.5	7.9
12	12	12	311	66	101.5	87	8.2
13	13	13	319	68	105.5	89	8.5
14	14	14	327	70	109.5	91	8.8

*Note: the dimensions of other displacement combinations will not be listed one by one. Please contact us for more information.

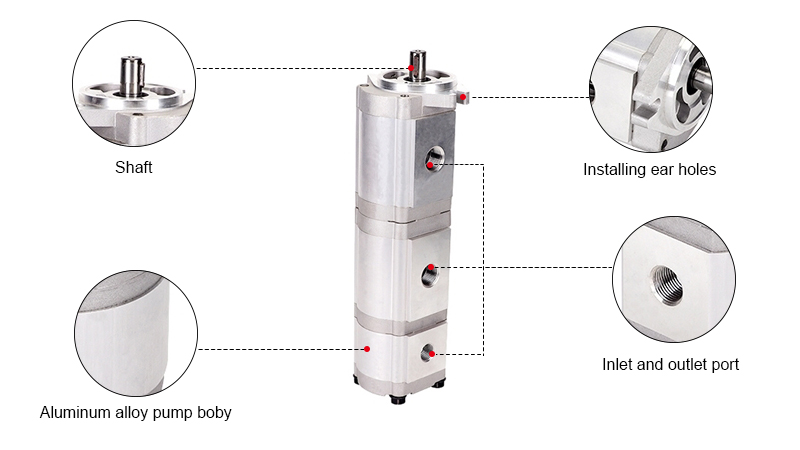

Details

Tips: How to extend service life of the hydraulic triple gear pump?

Use a kerosene brush to clean the gear surface of hydraulic triple gear pump, and then use a whetstone to clean up the debris left during boring.
Be careful not to install the right-handed pump on the left-handed pump, otherwise the skeleton oil seal of hydraulic triple gear pump will be damaged.
Before installing the pump cover, pour a small amount of hydraulic oil into the housing of the hydraulic triple gear pump, and turn the meshing gear by hand.
After installing the hydraulic triple gear pump, before tightening bolts, check whether the gap between the pump cover and pump body is between 0.3~0.6mm. If the gap is too small, replace the large sealing ring. After all installations are completed, check to make sure that the rotation is flexible and no jamming.
When oil leaks from the inlet and outlet ports of hydraulic triple gear pump, use sandpaper to flatten the joint surface of the two, and replace the appropriate sealing rings. Polish the chamfered burr of the threaded connection port with a whetstone, and replace the intact sealing ring (pad). It is strictly forbidden to wind it with various types of sealant and raw material tape.

Existing reviews of 8/9/11/13/14 GPM Hydraulic Triple Gear Pump, 3600 psi

About triple gear pump

We have an ATO-HTGP-13580 triple gear pump in an experimental application. To get better filtration on the pump inlet, we’re considering a change to the hydraulic circuit so that the triple gear pump inlet oil comes from the filtered outlet of a variable displacement charge pump. The charge pump outlet pressure is 4 bar. Are the seals, etc. of this triple gear pump able to handle inlet oil at a 4 bar charge pressure?

From: Xzavier | Date: 16/07/2024

Was this review helpful? Yes No (0/0)

ATO Responded

The oil inlet of our ATO-HTGP-13580 three-gear pump cannot have pressure, and the oil outlet pressure can be 21MPa.

customer feedback

I have an ATO-HTGP-13580 triple gear pump. The pump was ordered as CCW rotation. Is that CCW as viewed from the input shaft end or CCW as viewed from the pump back cover?
The pump is working, but not putting out much flow or pressure. Is that what happens if it’s running backwards? Any other ideas what could be wrong?

From: Adam | Date: 13/06/2024

Was this review helpful? Yes No (0/0)

ATO Responded

1. The pump rotates CW clockwise when viewed from the shaft end of the pump, and CCW rotates counterclockwise when viewed from the back cover of the pump.
2. You can check whether there is a problem with the pressure regulating valve in the system. If there is a problem with the pressure regulating valve, there will also be insufficient pressure and flow.

Question about hydraulic triple gear pump

Good afternoon, there is no problem with the pump we are using for our industrial snowblower program, we just want to reverse the rotation from clockwise to counterclockwise. Are there specific instructions available for the three section pumps we are using? Thanks very much for getting back to us.

From: Kylan | Date: 04/04/2023

Was this review helpful? Yes No (0/0)

ATO Responded

Unfortunately, the direction of rotation of the pump cannot be changed. If you need to change the direction of rotation, you can buy a new one.

3600psi hydraulic triple gear pump with good sealing performance

I bought this 3600psi hydraulic triple gear pump to transport chemical products. Its sealing performance is very good, so there is no need to worry about leakage. I like to use it at work very much. It is of great help to my work.

From: Bianca | Date: 29/07/2021

Was this review helpful? Yes No (0/0)
