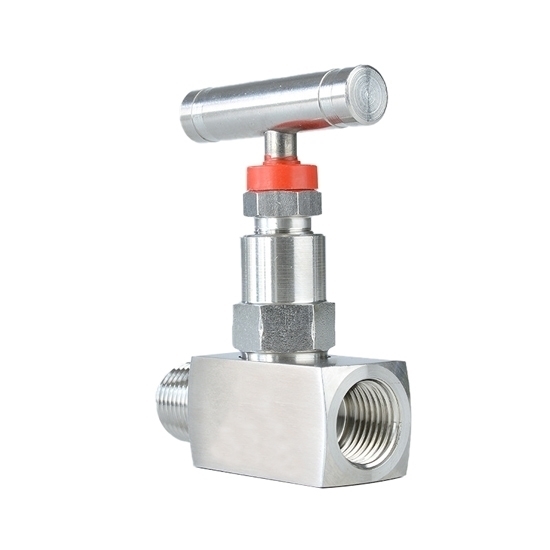

1/2" Stainless Steel Globe Valve

Simple and compact appearance of stainless valve. Globe control valve can be used in machinery and petrochemical industry. Working temperature of this type globe valve between -20 ℃ and 260 ℃.

Features:

• Simple and compact appearance.
• NPT threaded connection for easy installation of pressure gauge and pipe.
• 304 stainless steel has the characteristics of corrosion resistance and high temperature resistance.

Specification:

• Model: ATO-HNV-N08MF
• Port Size: 1/2 inch
• Structure: inner and outer thread
• Pressure: 0-6000 psi
• Temperature: -20 ℃ ~ + 260 ℃
• Medium: oil, water, steam

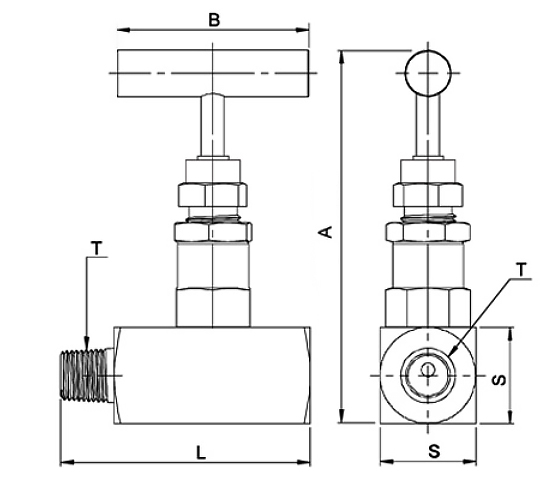

Dimension (Unit: mm)

Tips: How to Choose Globe Valve?

• Pneumatic high pressure globe valves should be selected for pipelines or devices with high temperature and high pressure media.
• The direct flow globe valve should be selected on the pipeline where the convection resistance is not strict.
• Small pneumatic globe valve can choose needle valve, instrument valve, sampling valve, pressure gauge valve, etc.
• There is flow regulation or pressure regulation, but the adjustment accuracy is not high, and the pipe diameter is relatively small, such as nominal passage ≤50 mm pipeline, the best choice of pneumatic globe valve, electric globe valve.
