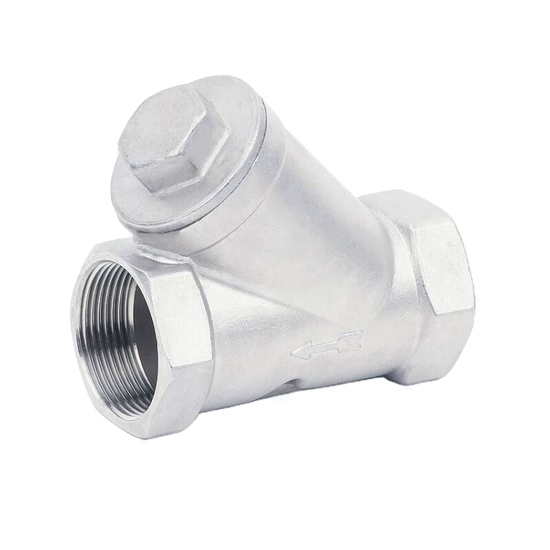

1/2 inch Stainless Steel Y Strainer

Low price 1/2 inch (DN15) stainless steel Y strainer comes with 800PSI working pressure, SS 304/316 material, and BSP, BSPT, NPT for selection. Y type strainer is widely used in water plants, papermaking, metallurgy, chemical, petroleum, construction, wind power, construction and other pipeline projects.

Specifications

• Model: ATO-T11F-800WOG (P/R)
• Type: Y Type Strainer
• Nominal Diameter: 1/2 inch (DN15)
• Working Pressure: 800PSI
• Product Material: 304/316 Stainless Steel
• Connection Form: Thread
• Thread Standard: BSP, BSPT, NPT
• Temperature Range: -20°C~180°C
• Weight: 0.15kg

Dimensions (Unit: mm)

Applications

Y-type strainers can remove impurities, debris, and solid particles from fluid or gas pipelines in industrial and commercial applications. They are typically used in applications where a high flow rate is required, and where there is a risk of damage to equipment or processes from the presence of solid particles.

Tips: Types of Strainer

• Y-Type Strainer: As mentioned earlier, a Y-type strainer has a Y-shaped body and is designed to remove solid particles from fluid or gas pipelines.
• Basket Strainer: A basket strainer has a cylindrical body and a removable basket-like strainer element that can be easily cleaned or replaced. It is used in applications where large volumes of fluid need to be filtered.
• Duplex Strainer: A duplex strainer consists of two basket strainers that can be used alternatively to ensure continuous filtration. When one basket is being cleaned or replaced, the other is still in use.
• Tee Strainer: A tee strainer is designed to remove impurities from fluids flowing in pipelines. It has a T-shaped body and a removable strainer element.
• Inline Strainer: An inline strainer is installed directly in the pipeline and filters fluid or gas as it flows through. It is designed for low-volume applications.
• Cone Strainer: A cone strainer has a conical shape and is used in applications where larger particles need to be removed from fluids.
• Magnetic Strainer: A magnetic strainer uses a magnetic field to remove metallic impurities from fluids or gases.
