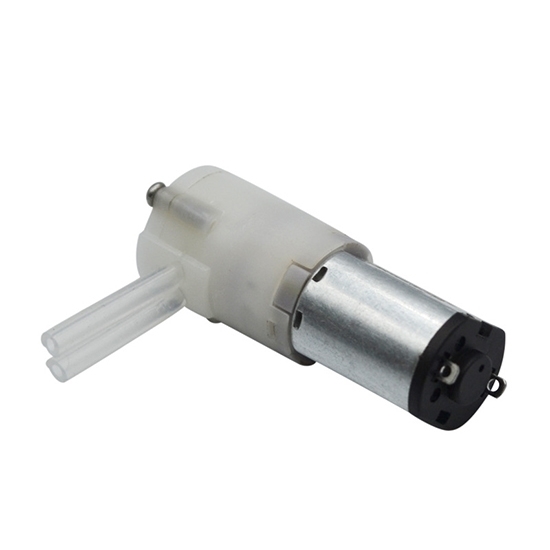

0.5mL/min DC 5V/6V Micro Peristaltic Pump

5 out of 5 based on 2 reviews | Write a review

$43.38

Cheap micro peristaltic pump for sale. Water flow rate 0.3~0.5mL/min (0.19GPD), rated voltage DC 5V/6V for selection, power＜1W, tubing diameter 1mm, miniature size 10.5*10.5*28mm, weight only 4g. Protable peristaltic dosing pump with 2-hose for small volume liquid metering.

Flow Rate (≤ 0.5mL, ± 10%) *
Rated Voltage *

SKU: ATO-PDP-M05

Availability: Out of stock

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

Note: This micro peristaltic pump is currently out of stock, but we have other items with similar specifications. Please go the page https://www.ato.com/6v-low-flow-peristaltic-pump.

Micro peristaltic dosing pump works at DC 5V/6V power supply, flow rate 0.3~0.5mL/min (0.19GPD), 2-tubing with 1mm diameter. Miniature peristaltic metering pump size is only 10.5*10.5*28mm, used for NPWT, sphygmomanometer, medical ventilator, dental flusher, coffee machine, dishwasher, water dispenser, car air purifier, etc.

Specification

Model	ATO-MPP05
Water Flow Rate	mL/min	0.3~0.5
	GPD (gallon/day)	0.11~0.19
Rated Voltage	DC 5V, 6V
Power	＜1W
Tubing Size	Outer Diameter	2mm
	Inner Diameter	1mm
Overall Size	10.510.528mm
Weight	4g
Rated Life	＞100h

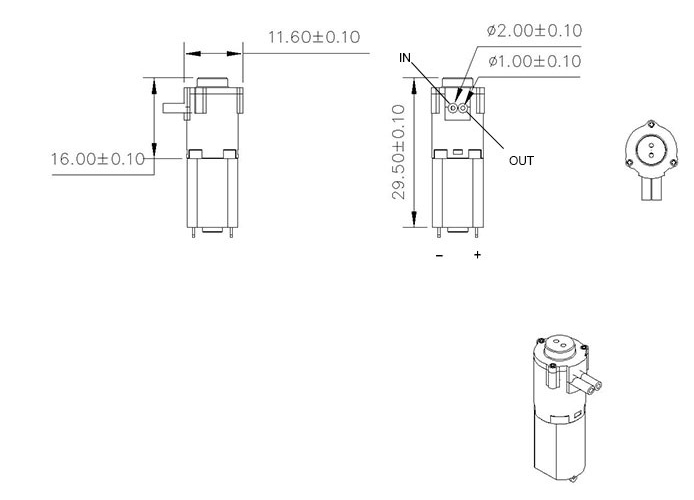

0.5mL/min Micro Peristaltic Pump Dimensions Drawing (Unit: mm)

Dimensions of 0.5mL/min DC 5V/6V Micro Peristaltic Pump

Micro Peristaltic Pump Applications

Micro Peristaltic Pump Applications

Tips: Superiority of micro peristaltic pump.

No pollution. The fluid only touches the pump tubing, not the pump body.
High precision. Repeatability, good stability and high precision.
Low shear force. Micro peristaltic pump is an ideal tool for conveying shear-sensitive and aggressive fluids.
Good airtightness. Micro peristaltic pump has good self-suck ability and can be idling to prevent liquid backflow.
Simple maintenance. Micro peristaltic pump has no valves and seals.
Micro peristaltic pump has the same flow capacity in both directions. In the case of no-liquid load operation, it will not cause damage to any parts of the pump. Micro peristaltic pump can generate up to 98% vacuum. Micro peristaltic pump can easily transport liquid or gas-liquid mixed phase fluids. Only the hose is the component that needs to be replaced, and the replacement operation is extremely simple.

Explained the working principle

This video tells us what a peristaltic pump is and its working principle, and you will have a rough understanding of it.

Enhancing peristaltic pump efficiency

This video is about how to improve the efficiency of peristaltic pumps.

Functions and selection methods

This video introduces the functions and selection methods of peristaltic pumps, allowing you to choose different types of peristaltic pumps according to your own needs.

Existing reviews of 0.5mL/min DC 5V/6V Micro Peristaltic Pump

Need your help

Need your help. I don’t really know exactly what to be looking for to be intrinsically safe. Here’s my customer’s message:

The issue with the Pressure switch is it would be very low pressure that would need to trigger it (Between 1 to 2 kpa). The peristaltic pump is low flow. It would only need between .5 - 1 L/minute. Both have to be intrinsically safe due to them being used in the chemical storage area of the lab.

From: Benjamin | Date: 09/01/2024

Was this review helpful? Yes No (0/0)

ATO Responded

For peristaltic pumps with low flow rates of 0.5 - 1 liter/min and low-pressure operation (Between 1 to 2 kpa), we recommend the MN4 series of micro peristaltic pumps. Motor types include DC motors, stepper motors, asynchronous motors, etc. Please refer to the specifications in the attachment. If the peristaltic pump is used at intervals, you can choose a DC motor; if the peristaltic pump is used continuously for a long time, you can choose a stepper motor. Please confirm whether these models meet your requirements.

Micro peristaltic pump works as intended

I really don't know how to use this micro peristaltic pump but the service is very patient. And the little peristaltic pump worked as intended. It really helps me a lot. Generally, it is a good shoping experience.

From: Ted | Date: 20/03/2022

Was this review helpful? Yes No (0/0)
