    30mL/min DC 3V/6V/12V Micro Peristaltic Pump

    5 out of 5 based on 1 reviews | Write a review
    $55.69
    Affordable price micro peristaltic pump powered by 3V/6V/12V DC motor. Flow rate 15~30mL/min (11.4 gallon per day), maximum power 1W, water pressure 15 psi, tubing diameter 2.4mm, size 57*24.1*22mm, weight 38g. 2-hose peristaltic dosing pump, suitable for various liquids with small volume.
    *
    *
    SKU: ATO-PDP-M30
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Micro peristaltic dosing pump for sale, working voltage DC 3V/6V/12V DC for selection, water flow rate of 11.4GPD (15~30mL/min), hose diameter 2.4mm. Miniature peristaltic pump used in liquid metering and transmission, applications include NPWT, sphygmomanometer, medical ventilator, infusion pump, biology laboratory, water dispenser, car air purifier, etc.

    Specification

    Model ATO-MPP40
    Water Flow Rate mL/min 15~30
    GPD (gallon/day) 5.71~11.41
    Rated Voltage DC 3V, 6V, 12V
    Power <1W
    Tubing Size Outer Diameter 4mm
    Inner Diameter 2.4mm
    Overall Size 57*24.1*22mm
    Weight 38g
    Rated Life >300h

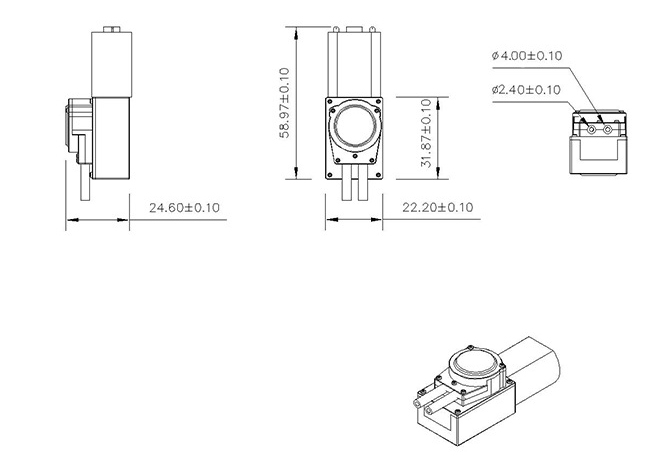

    30mL/min Micro Peristaltic Pump Dimensions Drawing (Unit: mm)

    Dimensions of 30mL/min DC 3V/6V/12V Micro Peristaltic Pump

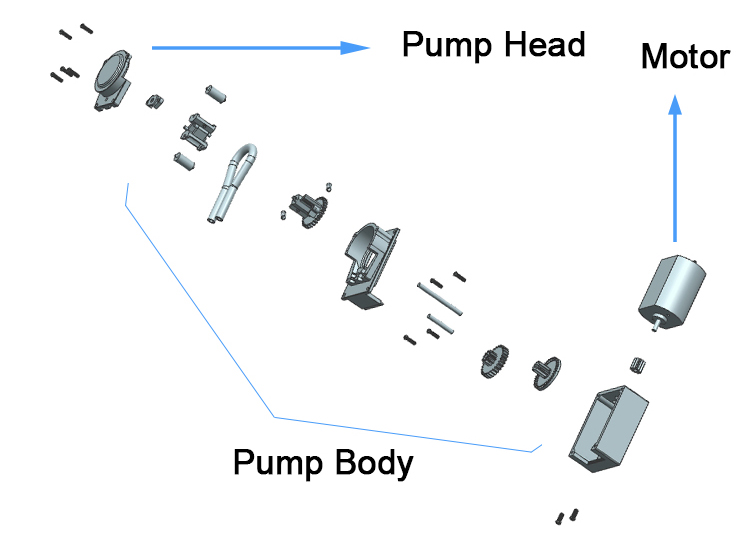

    30mL/min Micro Peristaltic Pump Structure Diagram

    Structure of 30mL/min DC 3V/6V/12V Micro Peristaltic Pump

    Micro Peristaltic Pump Applications

    Micro Peristaltic Pump Applications

    Explained the working principle

    This video tells us what a peristaltic pump is and its working principle, and you will have a rough understanding of it.

    Enhancing peristaltic pump efficiency

    This video is about how to improve the efficiency of peristaltic pumps.

    Functions and selection methods

    This video introduces the functions and selection methods of peristaltic pumps, allowing you to choose different types of peristaltic pumps according to your own needs.

    Existing reviews of 30mL/min DC 3V/6V/12V Micro Peristaltic Pump
    What max voltage is the electrical connector?
    What max voltage is the electrical connectors? One of the pics shows what looks like like a speed control knob attached to pump. Does all this come with this pump?
    From: Mill | Date: 31/03/2022
    Was this review helpful? Yes No (0/0)
    ATO Responded
    12v and there is no speed control on this motor/pump. You provide up to 12 volts DC to it to make it run. You can reduce the speed by reducing the voltage.
