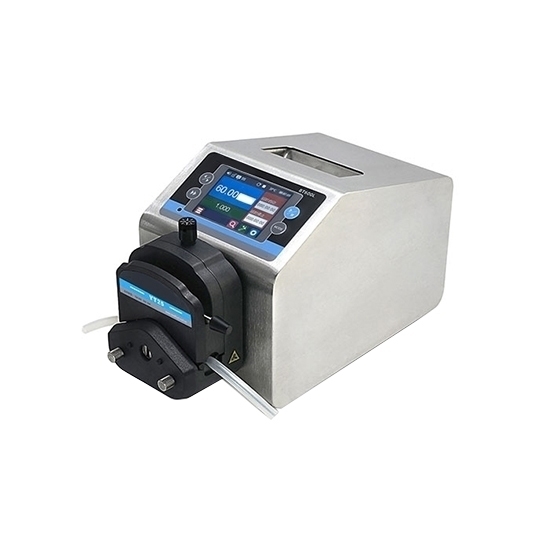

    270 GPD Peristaltic Dosing Pump

    5 out of 5 based on 1 reviews | Write a review
    $1,408.62
    Competitive price peristaltic dosing pump for sale. Flow rate 0.0001~720mL/min (270GPD), speed 0.1~150 rpm, accuracy error <±0.2%, rated voltage 110V/220V, max power 40W, suitable tubing inner diameter 4.8/6.4/7.9/9.6mm, 1 or 2 pump heads for selection. Small peristaltic metering pump can match with different pump heads and hoses for liquid transmission.
    *
    *
    *
    *
    *
    SKU: ATO-PDP-270
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Buy cheap peristaltic dosing pump with flow control function. Flow rate 270 gallon per day (0.0001~720mL/min), applicable hose inner diameter 4.8/6.4/7.9/9.6mm. The peristaltic metering pump can achieve high-precision continuous transmission control and simple dosing transmission for various liquid. Matching other tubing sizes and pumps head for getting higher flow rate is available.

    Specification

    Model ATO-BT100L
    Water Flow Rate mL/min 0.0001~720
    GPD (gallon/day) 0~270
    Speed Range 0.1~150 rpm
    Speed Resolution 0.1 rpm
    Speed Accuracy Error < ±0.2%
    Delay Start Time 1s~999h
    Delay Stop Time 1s~999h
    Distribution Time 0.1-99.9s
    Number of Distribution 1-999 times, 0 is infinite loop
    Distribution Interval 0.1-999 seconds/minute/hour
    Suction Angle 0~720°
    Power Supply AC 220V ± 10%, 50/60Hz
    AC 110V ± 10%, 50/60Hz
    Motor Power <40W
    External Control Interface External control input level 5V/12V/24V
    External control analog quantity 0-5V/0-10V/4-20mA
    External Control Digital Communication Interface RS485 communication, supports MODBUS protocol
    Working Environment Ambient temperature 0~40℃, relative humidity <80%
    Protection Grade IP31
    Overall Size 260*161*186mm
    Weight 4.7kg

    Features

    1. Peristaltic dosing pump has a 4.3-inch color LCD display, the touch screen cooperates with key operations.
    2. Peristaltic dosing pump has LF-Touch-OS software system, which is efficient and stable, and has a good human-computer interaction mode, which is convenient for customization and upgrading.
    3. Peristaltic metering pump has a flow mode and a time mode. Flow and time distribution can be pre-stored 5 groups of distribution parameters. High-precision flow control and display, micro-step algorithm to ensure the accuracy of split charging under different settings.
    4. Peristaltic dosing pump has a guided flow correction function, which is simple and easy to use. The suck back function effectively prevents the liquid from dripping.
    5. Programming mode supports 30 different quantitative parameter settings, which can realize complex control processes.
    6. Peristaltic dosing pump has an intelligent temperature control function, which automatically adjusts heat dissipation according to the environment, so that the peristaltic metering pump is always in the best condition.
    7. Peristaltic dosing pump has infrared remote control function, which is convenient for wireless connection.
    8. Peristaltic metering pump can perform external analog speed regulation. The external control signal controls the start and stop, positive and negative, and split-charging.
    9. RS485 communication, MODBUS protocol, supports up to 80 programming instructions, which is convenient for connecting the peristaltic metering pump with various control equipment.

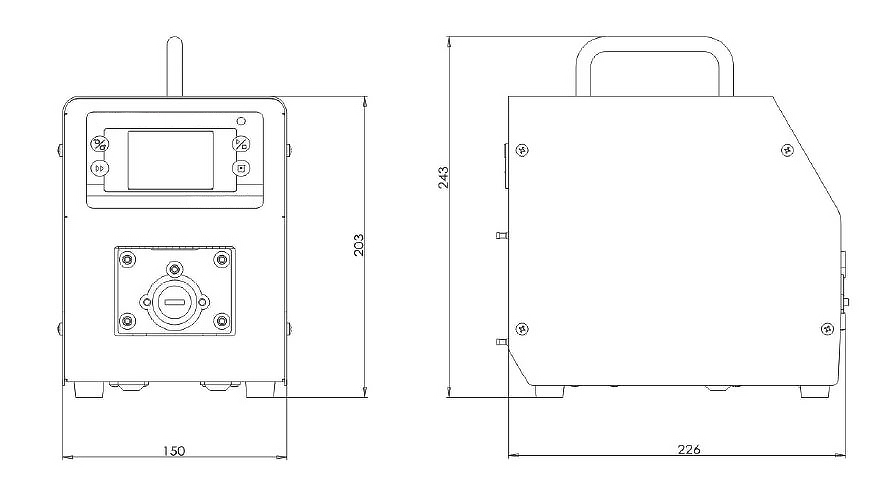

    270 GPD Peristaltic Dosing Pump Dimensions Drawing (Unit: mm)

    Dimensions of 270 GPD Peristaltic Dosing Pump

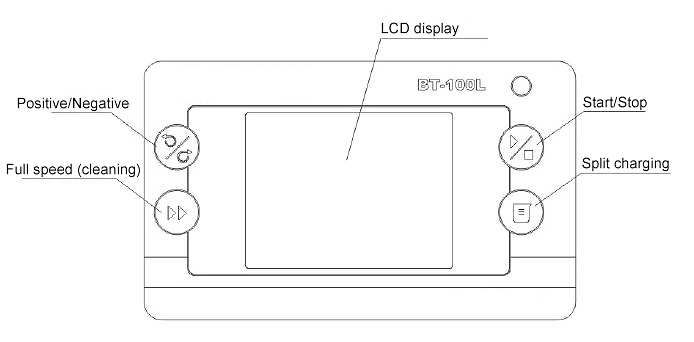

    270 GPD Peristaltic Dosing Pump Panel Details

    Panel of 270 GPD Peristaltic Dosing Pump

    270 GPD Peristaltic Dosing Pump Hose Specification (Unit: mm)

    Model Inner Diameter Outer Diameter Wall Thickness
    15# 4.8 9.8 2.5
    24# 6.4 11.4 2.5
    35# 7.9 12.9 2.5
    36# 9.6 14.6 2.5

    Tips: Peristaltic dosing pump working principle.

    A peristaltic pump is like squeezing a hose full of fluid with your fingers. As the fingers slide forward, negative pressure is formed in the tubing, and the fluid moves forward accordingly. Peristaltic pumps are based on this principle, replacing fingers with rollers. Peristaltic dosing pump transmits fluid by alternately squeezing and releasing the elastic delivery hose.

    The hose is squeezed by roller to form a closed cut-off point. When the roller rotates, the closing point follows the movement of the roller. The elastic hose will return to its natural state after roller leaves, and a vacuum will be formed in hose to suck in fluid and be squeezed out by the next roller. The pump tube is in a peristaltic state during work, so it is called a peristaltic pump. Peristaltic pump hose is squeezed and closed completely by the roller, and the fluid will not flow back. Therefore, the peristaltic dosing pump is a positive displacement pump (the speed is proportional to the flow rate). The fluid in the peristaltic pump only passes through the pump hose, without valves and seals, and will not contact any other parts of the pump. The liquid is extruded peristally in the pump tube, so it will not produce shear to the conveyed liquid, and will not damage the shear-sensitive fluid.

    Explained the working principle

    This video tells us what a peristaltic pump is and its working principle, and you will have a rough understanding of it.

    Enhancing peristaltic pump efficiency

    This video is about how to improve the efficiency of peristaltic pumps.

    Functions and selection methods

    This video introduces the functions and selection methods of peristaltic pumps, allowing you to choose different types of peristaltic pumps according to your own needs.

    Existing reviews of 270 GPD Peristaltic Dosing Pump
    What voltage can I use?
    Well, before I buy this peristaltic dosing pump, I have some questions. I want to know what kind of supply power I can use and is it quiet? Can you give me some ideas about this peristaltic dosing pump?
    From: Martin | Date: 05/04/2022
    Was this review helpful? Yes No (0/0)
    ATO Responded
    It has two types of supply power AC 220V ± 10%, 50/60Hz  or AC 110V ± 10%, 50/60Hz. The external control input level of motor power is  5V/12V/24V.  And its noise is very low.
