What is a Residual Current Circuit Breaker Used For?
Residual current circuit breaker, also known as leakage protector or leakage protection switch, is an important electrical safety equipment. The main function of the residual current circuit breaker is to cut off the power in time when the equipment leakage fault occurs, in order to prevent the occurrence of electric shock accident. The residual current circuit breaker is not only able to detect the leakage current, but also can quickly cut off the power supply when the leakage current exceeds a predetermined value, so as to protect personal safety.

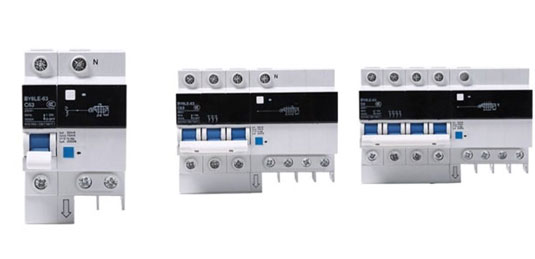

The Main Use of Residual Current Circuit Breaker
Prevent Electrocution: Residual current circuit breaker can quickly cut off the power supply when the electrical equipment leakage fault occurs, to avoid electrocution accidents. Especially in a humid environment or poor human grounding, the residual current circuit breaker can better protect personal safety. When the human body contacts the electrified part, the residual current circuit breaker can cut off the current in a very short time, reducing the risk of electric shock.
Prevent Electrical Fires: Leakage fault refers to electrical equipment contamination, excessive moisture, poor grounding and other causes of excessive leakage current in the circuit, which can easily cause electric shock, fire and other hazards. Residual current circuit breaker can detect and cut off the leakage fault circuit in time, so as to protect personal safety and electrical equipment. By monitoring the abnormal current in the circuit, the residual current circuit breaker can prevent fires caused by leakage.
Protection of Electrical Equipment: Residual current circuit breaker can protect electrical equipment from leakage current and extend the service life of the equipment. As the leakage current will accelerate the aging and damage of the equipment, when the current in the circuit is too large, has exceeded the rated current value of the leakage circuit breaker can withstand, the residual current circuit breaker will automatically fall off, and will automatically cut off the power supply, to ensure the safety of the home's electrical circuit, to avoid electrical appliances are damaged.
Improve the Reliability of the Electrical System: The residual current circuit breaker can monitor the leakage status of the electrical system in real time, timely detection and elimination of potential safety hazards, improve the safety and reliability of the entire electrical system. In wet, electrocution-prone or fire-risky environments, such as bathrooms, swimming pools, hospitals, schools, construction sites, etc., the leakage circuit breaker provides an extra layer of safety.

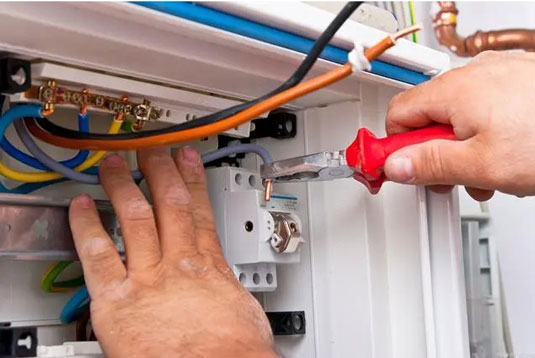

Application of Residual Current Circuit Breaker
Power System Field: As an important protection equipment in power system, residual current circuit breaker is widely used in power transmission, generator, substation and other fields. Circuit breakers in power transmission lines are mainly used for opening and closing operations of medium and high voltage transmission lines to ensure the safe and reliable operation of the lines. The circuit breaker can quickly cut off the fault current and restore normal power supply after the fault is lifted to ensure the stable operation of the power grid. The residual current circuit breaker in the generator is used for the connection between the generator and the power grid, which can isolate the generator from the power grid in time when the generator fails to protect the generator and the safety of the power grid. In addition, as one of the core equipment of substation, residual current circuit breaker is mainly used to isolate and switch the current in the power system to protect the safe operation of transformer and other equipment.
Home Field: Residual current circuit breakers are mainly used in home applications to protect personal safety. In home circuits, residual current circuit breakers are widely used in all aspects of sockets, lighting, kitchen appliances and so on. When leakage occurs in electrical equipment, if there is no power failure protection, it will easily lead to electric shock accidents. Therefore, in home life, it is recommended to install earth leakage circuit breakers to ensure personal safety. For example, sockets around water sources such as bathrooms and kitchens, sockets installed outdoors, and smart home devices should be protected with residual current circuit breakers. It can effectively prevent leakage accidents caused by electrical equipment insulation aging, breakage and other reasons.
Industrial Field: The industrial production process requires the use of a large number of electrical equipment, circuit breakers in the process of iron and steel metallurgy in the high-voltage power supply system to play a key role in ensuring the stability of the power supply to avoid the impact of the production process due to electrical failures. In large-scale machinery and equipment, production lines, power distribution rooms and other places, residual current circuit breakers can monitor the real-time circuit status, to prevent electrical failure caused by fire, electric shock and other serious consequences. In addition, some industrial residual current circuit breakers also have remote control, data analysis and other functions, providing strong support for industrial safety production.
Transportation Field: In the railroad power system leakage circuit breakers are mainly used in the railroad power supply system to ensure the reliability and safety of power transmission, to ensure the normal operation of railroad traffic. And the circuit breaker in the subway and tram system is used in the subway, tram and other urban rail transportation system in the power transmission and protection, can timely cut off the faulty power lines, to protect the safety of passengers and equipment. Meanwhile, residual current circuit breakers are also used in the electrical systems of airplanes and ships to provide power protection and fault isolation to ensure the normal operation of airplanes and ships.
Commercial Field: Shopping malls, hotels, office buildings and other such places have high power consumption and electrical equipment, and once an electrical fault occurs, the consequences are unimaginable. Therefore, the installation of residual current circuit breakers has become one of the important measures for electrical safety management in these places. Residual current circuit breaker in commercial applications are mainly for energy saving and improving the efficiency of electricity consumption. By detecting the leakage of equipment, it helps enterprises to manage and control electricity consumption, so as to achieve the purpose of energy saving and emission reduction.
Through the Analysis of this paper, we can see that the residual current circuit breaker has many advantages such as efficient protection, intelligent detection, easy maintenance, etc., and it is widely used in many fields such as family, industry and commerce. At the same time, with the continuous progress of technology and the continuous development of the market, residual current circuit breakers will continue to develop in the direction of intelligence, networking, green and other directions. When choosing and using residual current circuit breakers, you should follow the relevant safety codes and standards and consult qualified professionals.
