What is a Hipot Tester Used for?

The hipot tester is an important electrical testing equipment and is widely used in electrical safety testing in various fields. Hipot testers play an important role in electrical safety testing in electronic products, power equipment, the automobile industry, the new energy field, rail transportation, and other fields. Using a hipot tester allows potential insulation defects to be effectively discovered, potential electric shock risks can be prevented, and equipment and personal safety can be ensured. The following are specific applications of hipot testers in several major fields.

Application areas

Electronic products: In the production and quality inspection process of electronic products, hipot testers are widely used to test the insulation performance of electronic components, circuit boards, and finished equipment. Through withstand voltage testing of electronic products, the product's safety under normal operating voltage and abnormal overvoltage can be ensured, and potential risks of electric shock can be prevented.
Power equipment: In the power industry, hipot testers are mainly used to test the insulation performance of high-voltage power equipment such as transformers, cables, and switch cabinets. By simulating insulation performance testing under high-voltage conditions, the hipot tester can promptly discover potential insulation defects of equipment and ensure the safe operation of power equipment.
Automobile industry: In the automobile manufacturing process, hipot testers are widely used to test the insulation performance of key components such as automobile wiring harnesses, motor controllers, and battery packs. Withstand voltage testing is one of the important means in the automotive industry to ensure product quality and safety.
New energy field: In the new energy field, hipot testers are mainly used to test the insulation performance of new energy equipment such as solar panels and wind power systems. With the rapid development of the new energy industry, hipot testers play an important role in ensuring the safety and stability of new energy equipment.
Rail transit: In the rail transit industry, hipot testers are mainly used to test the insulation performance of key components such as train electrical systems and track signaling equipment. Hipot testing is one of the important means to ensure the safe and reliable operation of rail transit equipment.

Specific applications in electricity

Electrical equipment testing: The hipot tester can test the insulation performance of electrical equipment under specified voltage to determine whether the equipment can operate safely. This is an important measure to prevent electric shock accidents from electrical equipment under high voltage.

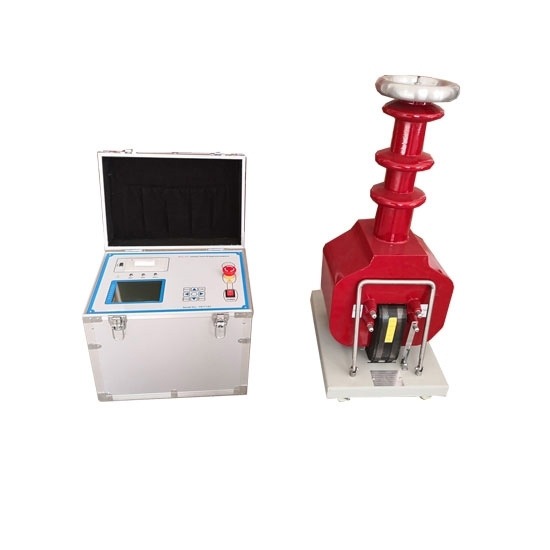

Electronic component testing: The automatic hipot tester can test the insulation performance of electronic components to ensure that electric shock or other failures will not occur when the components are working normally.

Equipment insulation testing: Hipot testers are mainly used to test the insulation performance of electrical equipment. By applying high-voltage voltage, the device is tested for breakdown or flashover to evaluate the electrical strength and insulation performance of the device. This is crucial to ensure the safe operation of equipment under normal operating voltage and abnormal overvoltage.
Material insulation testing: Hipot tester can be used to test the electrical strength and voltage resistance performance of various insulating materials. The insulating properties of the material are evaluated by applying gradually increasing voltages to the material and observing whether breakdown or flashover occurs. This is of great significance in determining whether the material meets the specified insulation standards and ensuring the safe operation of the equipment.
High-voltage equipment acceptance: After the high-voltage equipment is installed, use a hipot tester to perform an acceptance test to ensure that the equipment meets the specified insulation standards before being put into use.
Safety performance evaluation: The hipot tester can perform safety performance evaluation on various electrical equipment to determine whether the equipment can ensure safety under abnormal conditions. This is important for assessing the reliability and safety of the device.
Motor and power supply testing: The hipot tester can be used to test the insulation performance of the motor and power supply to ensure the normal operation of the motor and power supply.
Leakage protection function test: The hipot tester can simulate the situation of human electric shock and test the leakage protector to ensure that the leakage protector can respond in time and cut off the power supply to ensure personal safety.
Maintenance and repair: During the maintenance and repair process of equipment, the hipot tester can be used to detect the insulation performance of electrical connections and components. By testing the electrical strength of connecting parts and components, potential insulation faults and defects can be discovered in time, preventing electrical accidents caused by insulation faults, and ensuring the safe operation of equipment.
Scientific research: Hipot testers are also widely used in the field of scientific research. Scientific researchers can use hipot testers to conduct in-depth electrical performance research on new insulation materials, composite materials, etc. By applying high voltage to the material and observing its breakdown and flashover phenomena, we can gain an in-depth understanding of the material's electrical properties and voltage resistance characteristics, providing strong support for the development and optimization of new materials.
Quality Control: Quality control is a very important link in the manufacturing and production process. The hipot tester can be used to conduct fast and accurate withstand voltage tests on electrical equipment during the production process to ensure that the electrical strength and insulation performance of the product meets quality requirements and standards. This helps improve product reliability and safety and reduces the risk of production accidents caused by insulation failures.
Fault diagnosis: Hipot testers also play an important role in fault diagnosis. When electrical equipment fails, a hipot tester can be used to conduct a withstand voltage test on the equipment to determine the cause and location of the fault. By observing the breakdown and flashover phenomena of equipment, potential insulation faults and defects can be quickly located, providing a basis for equipment maintenance and recovery.
By using hipot testers, we can promptly discover potential insulation faults and defects, ensure the safety and reliability of equipment and products, and provide a strong guarantee for the safety of electricity in production and daily life.
