    22AWG Hook-Up Wire, UL1430, 300V, 2000 ft

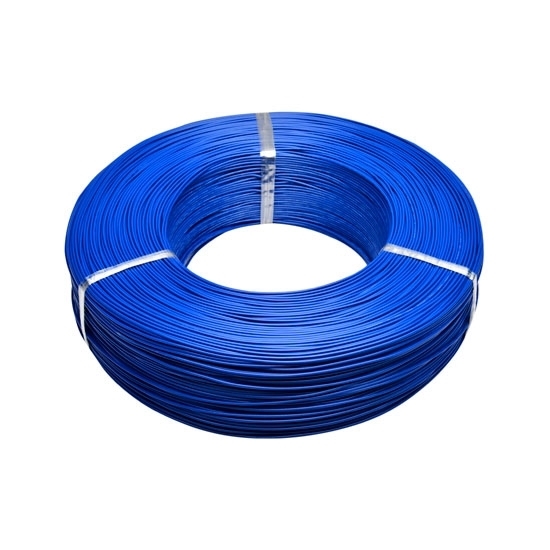

    Picture of 22AWG Hook-Up Wire, UL1430, 300V, 2000 ft
    Picture of 22AWG Hook-Up Wire, UL1430, 300V, 2000 ft

    22AWG Hook-Up Wire, UL1430, 300V, 2000 ft

    5 out of 5 based on 1 reviews | Write a review
    $161.69
    22AWG stranded hook-up wire meets UL 1043 standard for tinned copper wire, 300V rated voltage, 2000 ft. /roll. Available in different colors of PVC outer cover for insulation. Electrical wire is commonly used in commercial wiring applications.
    *
    SKU: ATO-UL1430-22
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Hook up wire provides good electrical connection and PVC insulation keeps wires from abrasion, chemical and solvents. The insulated wire is widely used for industrial, electronics and automotive applications.

    Specification

    Model ATO-UL1430-22
    UL Style 1430
    Size 22 AWG
    Rated Voltage 600V
    Color (Optional) White, Black, Red, Yellow, Green, Brown, Gray, Blue, Orange, Purple
    Rated Temperature 105 ℃
    Conductor Tinned/ Bare Copper
    Conductor Type Stranded
    Conductor Size (±0.005） NO. 17/ 0.16mm
    Conductor Resistance 20℃ 59.40 Ω/Km
    Conductor Diameter 0.76mm
    Insulation PVC
    Insulation Thickness Nom. 0.38mm
    Min. 0.33mm
    Overall Diameter Average 1.52mm
    Tolerance ±0.10mm
    Package 2000 ft/roll
    Weight 3.5kg

    Details

    Details of UL1430 22AWG Isulated Copper Wire

    Existing reviews of 22AWG Hook-Up Wire, UL1430, 300V, 2000 ft
    Good hook-up wire at a good price.
    This 22AWG UL1430 electrical hook-up wire is standard wire. High quality, very flexible wire, with very fine strands of tinned copper wire. Good wire at a good price. Worked perfect for my needs.
    From: Mesnard | Date: 28/06/2022
    Was this review helpful? Yes No (0/0)
    Load more reviews...
    Write your review for 22AWG Hook-Up Wire, UL1430, 300V, 2000 ft
    • Only registered users can write reviews
    • Bad
    • Excellent
