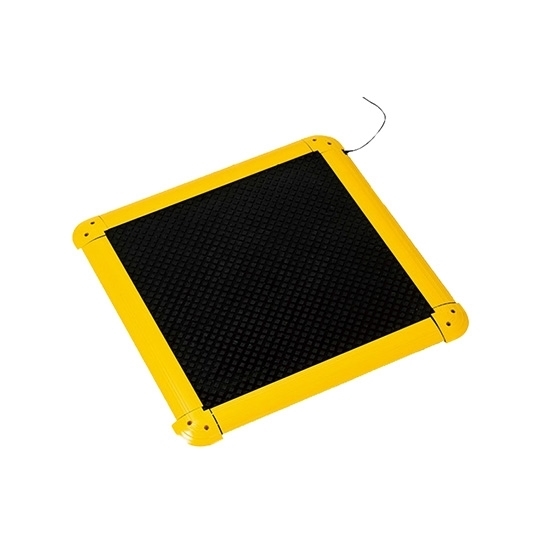

Pressure Sensitive Safety Mat, Anti-static/Flame-retardant, 12mm

The flame-retardant grade of the flame-retardant version of the pressure sensitive safety mat is V-0, and the anti-static grade of the anti-static version is level three anti-static 10^11Ω.

Features

• The safety mat has excellent corrosion resistance to various acids, alkalis, salts and other chemicals.
• The mat has worked more than millions of times, ensuring long-term use.
• It uses special load-bearing rubber EPM/EPDM material with high tensile and tear properties and excellent wear resistance.
• Pressure sensitive safety mat generates a switch signal after detecting sufficient pressure to achieve safety protection of the area.
• The mat is widely used in automatic induction doors, welding robots, rubber and plastic machinery, assembly machinery, material handling, packaging machinery, stamping machinery and other fields.
• The safety mat is used in conjunction with a dedicated controller to detect the working status of the safety mat, thereby forming a safer protection system.

Specification

Note: The output signal of the safety mat is NO by default. If you want to select normally closed (NC), you need to add a safety relay for safety mat to achieve it.

Dimension (mm)

Note: 1. The above dimensions are regular dimensions, other dimensions can be customized.

2. Safety mat dimensions can be customized within the range of 2000mmX1000mm.

Product composition

Installation example display

Applications

Tips: What are industrial pressure-sensitive safety mats?

Industrial pressure-sensitive safety mats are a type of safety protection product designed for industrial environments. They are mainly used to provide electrical isolation, shock absorption, anti-skid and other functions to ensure the safety of the work area. It usually uses durable materials such as rubber or polyurethane, which can effectively reduce the risks of slips, falls and electric shocks, and is widely used in areas that need protection, such as electrical equipment operation areas, production lines and warehouses. Many industrial safety mats also have anti-static or flame-retardant functions, which can effectively isolate ground currents and prevent electric shock accidents.

In addition, industrial safety mats can trigger switch signals when sufficient pressure is detected, and are triggered by stepping on them. They have high sensitivity and achieve regional safety protection. Industrial safety mats are widely used in automatic induction doors, welding robots, packaging machinery, stamping machinery and other fields. They are important equipment to ensure worker safety and avoid mechanical failures and accidents.
