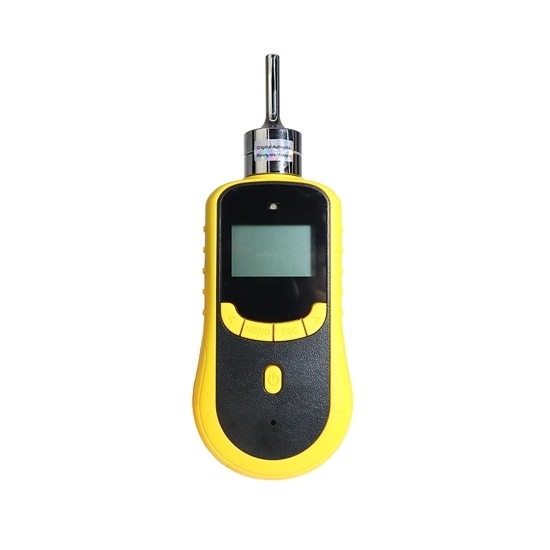

Portable Chlorine (Cl2) Gas Detector, 0 to 10/50/100 ppm

5 out of 5 based on 10 reviews | Write a review

$846.15

Portable Chlorine (Cl2) gas detector with built-in micro pump has measuring ranges of 0 to 10ppm / 20ppm / 50ppm / 100ppm for your selection, and give alarms with sound, light and vibration. Chlorine gas monitor uses high precision sensor, easy operation, high reliability and low price.

Measuring Range *

Charger Plug *

Extension Probe *

Function

Data Logging [+$152.48]

Accessories

Calibration kit [+$538.46]

SKU: GD200-Cl2

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Features

LCD dot matrix display, direct readout of gas type, unit, concentration, local time, etc.
Support English/Chinese operation, easy to shift.
Gas concentration unit PPM and mg/m³can be shift quickly.
Built-in micro-sampling pump, 10 grades of suction are available.
Explosion-proof certification

Gas Detector Functions

With self-calibration and zero calibration functions, makes the detection more accurate and reliable.
One key to restore factory setting, free from maloperation.
With temperature and pressure compensation, able to realize the compensation for the gas concentration under different temperature and pressure environments.
Two-stage alarm with sound and light, and alarm point is settable.
Rechargeable lithiumpolymer battery with large capacity.
High-strength special engineering plastic housing, with anti-slip, waterproof, dustproof and explosion-proof

Specification

Model	GD200-Cl2
Sampling Method	Pump type, flow rate can be up to 750ml/min
Detection Principle	Electrochemistry
Gas	Chlorine (Cl2)
Range (Optional)*	0 to 5ppm, 0 to 10ppm, 0 to 20ppm, 0 to 50ppm, 0 to 100ppm or 0 to 200ppm
Resolution	0.001ppm (0-5ppm), 0.01ppm (0-10/20/50ppm) or 0.1ppm (0-100/200ppm)
Accuracy	≤±3% F.S.
Response Time	≤10s
Repeatability	≤±1%
Recovery Time	≤10s
Linearity Error	≤±1%
Zero Shift	≤±1% (F.S./year)
Data Logging (Optional Function)	High speed data transmission by USB, available for data downloading and printing (The built-in IC card has about 2G memory, which can record 100,000 sets of data.)
Alarms	Sound, light and vibration
Display	LCD dot matrix display
Language	Chinese/English
Battery	3.7V rechargeable lithium battery, 3.7 Watt (Charger included: Input AC 100-240V 50/60Hz with optional USA, Europe or UK plug)
Operating Time	100h (Pump off)
Communication	Mini USB interface supports standard MODBUS communication protocol
Explosion-proof Grade	Ⅱ 2G Ex ia Ⅱ CT4 Ga
Case Material	ABS+PC
Protection Grade	IP66
Certification	CE, ATEX (Standard: EN IEC 60079-0:2018, EN 60079-1:2014)
Operating Temperature	-20℃~50℃
Operating Humidity	0~95%RH (non-condensing)
Operating Pressure	0.8~1.2bar
Dimension	2057532mm
Weight	300g
Warranty	12 months
Extension Probe	About 480mm (Total Length), About 300mm (Probe Head)
Accessories (Optional)	Calibration kit - gas pressure regulator (calibration gas cylinder NOT included) • Body Material: Stainless steel • Input Range of Pressure Gauge: 0-25MPa • Output Range of Pressure Gauge: 0-0.6Mpa • Gauge Class: 2.5 • Input Pressure: ≤15MPa • Output Pressure: ≤0.45MPa • Rated Flow: 0.6 m³/h • Connection: Inlet: W21.8-14 teeth/inch (levorotation, dextrorotation) ; Outlet: Ф6 flexible tube

Note:
* If you need a Cl2 gas detector with other measuring ranges unlisted in above table, please contact us to inform your operating environment, so as to help you choose an appropriate one for your application.
* We also provide other common gas detectors, and you can refer to ATO Gas Detector Catalog to get the specific gas type and measurement range. If you have any questions, please feel free to contact us.

*** Other Common Gases and Ranges Available for Portable Gas Detectors

Gas Type	Measure Range	Resolution
Ammonia (NH3)	0-10/20/50/100/200/500/1000/2000/5000ppm	0.01ppm/0.1ppm/1ppm
Benzene (C6H6)	0-1/5/10/20/50/100/200/500/1000/2000/5000/10000ppm	0.001ppm/0.01ppm/0.1ppm/1ppm
Carbon Dioxide (CO2)	0-1000/2000/5000/10000/20000/50000ppm, 0-10%/20%/30%/50%/100% VOL	1ppm, 0.01% VOL
Carbon Monoxide (CO)	0-10/20/50/100/500/1000/2000ppm	0.001ppm/0.01ppm/1ppm
Chlorine (Cl2)	0-5/10/20/50/100/200ppm	0.001ppm/0.01ppm/0.1ppm
Chlorine Dioxide (ClO2)	0-1/5/10/20/50/100ppm	0.001ppm/0.01ppm/0.1ppm
Ethylene (C2H4)	0-10/20/50/100/500/1000/2000ppm	0.001ppm/0.01ppm/0.1ppm/1ppm
Flammable	0-100% LEL	1% LEL
Formaldehyde (CH2O)	0-10/20/50/100/500/1000ppm	0.01ppm/0.1ppm/1ppm
Hydrocarbons (HC)	0-100% LEL	1% LEL
Hydrogen (H2)	0-10/20/100/500/1000/2000/3000/5000/10000/20000/40000ppm, 0-4% VOL	0.001ppm/0.01ppm/0.1ppm/1ppm, 0.001% VOL
Hydrogen Chloride (HCl)	0-10/20/50/100/200/500/1000/2000ppm	0.01ppm/0.1ppm/1ppm
Hydrogen Cyanide (HCN)	0-10/20/50/100ppm	0.01ppm/0.1ppm
Hydrogen Fluoride (HF)	0-1/5/10/50ppm	0.001ppm/0.01ppm
Hydrogen Sulfide (H2S)	0-5/10/20/50/100/200/500/1000/2000ppm	0.001ppm/0.01ppm/0.1ppm/1ppm
Methane (CH4)	0-100% LEL, 0-50%/100% VOL	1% LEL, 0.01%VOL
Methyl Bromide (CH3Br)	0-50/100/200/500/1000/2000/3000ppm	0.1ppm/1ppm
Nitric Oxide (NO)	0-20/50/100/250/500/1000ppm	0.01ppm/0.1ppm/1ppm
Nitrogen (N2)	0-99.99%/100% VOL	0.01% VOL
Nitrogen Dioxide (NO2)	0-20/50/100/500/1000ppm	0.01ppm/0.1ppm/1ppm
Oxygen (O2)	0-25%/30%/100% VOL	0.01% VOL
Ozone (O3)	0-1/5/10/20/50/100/200/500/1000/2000ppm	0.001ppm/0.01ppm/0.1ppm/1ppm
Phosgene (COCl2)	0-1/5/10ppm	0.001ppm
Phosphine (PH3)	0-10/20/50/100/500/1000/2000/3000ppm	0.01ppm/0.1ppm/1ppm
Sulfur Dioxide (SO2)	0-20/50/100/500/1000ppm	0.01ppm/0.1ppm/1ppm
Sulfur Hexafluoride (SF6)	0-1000/2000/3000ppm	1ppm
Volatile Organic Compounds (VOC)	0-1/5/10/20/100ppm	0.01ppm/0.1ppm

Details

Applications

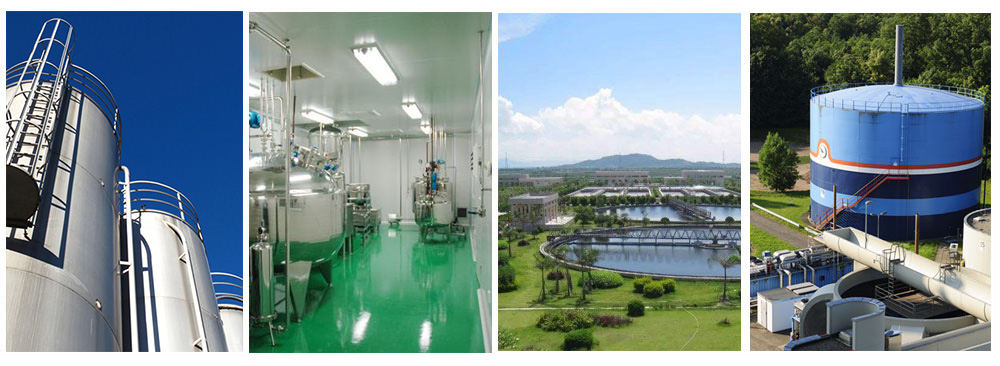

Portable Cl₂ gas detector, pumping type, is used to measures the Chlorine gas concentration in the areas like chemical, pharmaceutical, municipal, water treatment, telecommunications, archaeology, laboratories, cold storage, wine making and other places, so as to ensure the safety of humans and animals.

Tips: How to Select a Gas Detector?

1. Gas type and concentration

If the majority of gas components are methane and other less toxic alkanes, LEL detector is undoubtedly the most appropriate.
If there are toxic gases such as Chlorine (Cl₂), it is prior to select a specific gas detector, to ensure the safety of workers.
If the gas majorities are the organic, toxic and harmful gases, such as aromatic hydrocarbons, halogenated hydrocarbons, ammonia (amines), ethers, alcohols, lipids, a photoionization detector shall be selected.

2. Applications

The selection of gas detector differs from the industrial environments.

Fixed gas detector
Such a gas detector is mostly used in industrial devices and production processes. It can be installed on a specific detection point to detect specific gas leaks.
Portable gas detector
As the portable gas detector is easy to operate and compact, it can be carried to different production sites. In open occasion like open workshops for security alarm, a wearable diffusion-type gas detector is recommended because it can display the concentration of toxic and harmful gases continuously, real-time and accurately on site. If it’s used in a confined space, such as the reaction tank, storage tank or container, sewer or other underground pipe line, underground installations, cargo hold and tunnel, a multi gas detector with a built-in sampling pump is recommended.

Gas Detector Catalogue

ATO Gas Detector Catalog.pdf

Portable Gas Detector User Manual

ATO Gas Detector User Manual.pdf (Pumping Suction Type)

ATO Gas Detector Data Downloading Operation Instruction.pdf

ATO-GAS-S4 Gas Detector User Manual.pdf (Diffusion Type)

Communication Protocol

ATO Handheld Gas Detector Communication Protocol V1.0.pdf

Portable Gas Detector Calibration Accessories - Gas Pressure Regulator

ATO Single Stage Pressure Regulator User Manual

Gas Detector Software

ATO Portable Gas Detector DataExport Software

Basic Settings of Portable Gas Detector

This video will show you the basic settings of ATO portable gas detectors including high/low alarm setting, language setting and time setting.

Calibration of Portable Gas Detector

This video will show how to calibrate the ATO portable gas detectors.

Concentration Detection of Pesticides Gas

Methyl bromide is an organic compound with the chemical formula CH3Br, which is mainly used as a pesticide, fumigant, refrigerant and solvent, and can also be used in organic synthesis.This video will mainly use methyl bromide and CH3Br as examples to introduce the detection of their concentrations.

How to Detect Hydrogen Sulfide Concentration in the Toilet

Hydrogen sulfide is a flammable acidic gas that smells like rotten eggs at low concentrations and is very toxic. In actual operation, it is necessary to ensure that the detection equipment or method used can accurately measure the concentration of hydrogen sulfide, and pay attention to safety issues during operation to avoid hydrogen sulfide poisoning.

How much C2H4 (ethylene) do ripe bananas and apples produce?

We have various gas detectors such as: CO, O2, O3, H2, NH3, H2S, CH4, Cl2, CH2O, etc, from 0~10000ppm, Industrial or daily use.

How Does a Portable Detector Work?

This video explains how a portable detector works and uses it to measure the air around you.

Portable Single Gas Detector Parameter Settings

In this video, we show you the menu settings of the ATO portable detector. Five button operation makes it very simple to control and activate functions. This device provides two alarm types, high alarm point and low alarm point, which can be adjusted as needed. The speed of the pump is also allowed to be adjusted. Calibration options include zero calibration and span calibration, both of which should be performed by qualified professionals under strict operating conditions using necessary accessories and standard gases.

How to Calibrate a Portable Gas Detector?

This video shows how to calibrate a portable gas detector. The ATO portable gas detector is lithium battery powered, has data logging capabilities and is available with a calibration kit.

Gas Detector Detection Range Setting

This video demonstrates the detection range setting of a portable gas detector.

Portable Oxygen Gas Detector with PC Interface

The Smart Handheld Gas Detector from ATO is designed to detect oxygen in a range from 0% to 30%. In this video, ATO will show you that the detector uses a micro sampling pump to draw in the measured gas with the max flow rate up to 1L/min. The LED display provides simultaneous pickup of gas variety, density units, the maximum value, local time and atmospheric temperature, etc.

Existing reviews of Portable Chlorine (Cl2) Gas Detector, 0 to 10/50/100 ppm

Two questions

1. the unit you used for accuracy, please spell out the "F.S."
2. I have bought a ATO-SKY2000-Cl2, but without the capability of downloading data. Can this function be added?

From: Alian | Date: 29/07/2022
