    Nema 6 Micro Stepper Motor, 3V/ 5V, 2 Phase, Bipolar

    5 out of 5 based on 1 reviews | Write a review
    $35.69

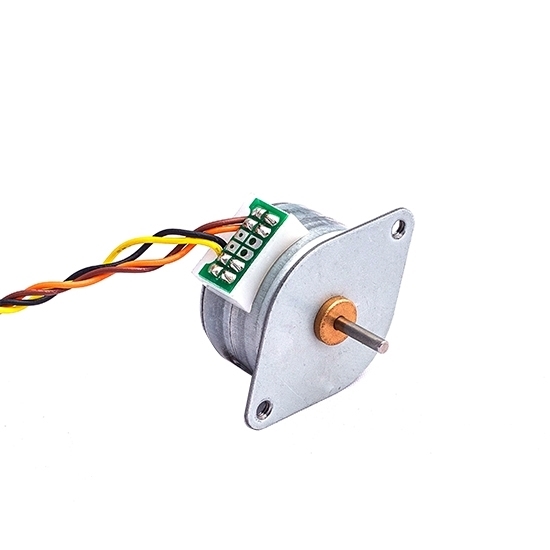

    Low price Nema 6 micro stepper motor for sale, with metal gear. Rated voltage 3V or 5V, current 0.16~0.5A for selection, stepping angle 18 degree, resistance 10Ω/15Ω, holding torque 1.4~2.6 mN-m. 2-phase miniature stepper motor, bipolar drive.
    *
    SKU: ATO-MGSTEP-6352
    This product has a minimum quantity of 3
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Micro stepper motor has size of Nema 6 (Ф15mm). Optional voltage DC 3V/5V, current 0.16~0.5Amp, resistance 10/15Ω, stepping angle 18°. 2 phase miniature bipolar stepper motor with metal gear, suitable for medical equipment, printer, scanner, automotive meter, gas range, sewing machine, security systems, optical fiber welding equipment, etc.

    Specification Datasheet

    Model ATO-SM1519 ATO-SM1566 ATO-SM1568
    Rated Voltage 3V 5V 5V
    Rated Current 0.2A 0.16A 0.5A
    Resistance 15Ω 15Ω 10Ω
    Phase 2 Phase 2 Phase 2 Phase
    Stepping Angle 18° 18° 18
    Excitation Method 2 2 2
    Pull-in Torque 0.5 mN-m (200 pps) 1.0 mN-m (500 pps) 1.3 mN-m (300 pps)
    Pull-out Torque 0.6 mN-m (200 pps) 1.4 mN-m (500 pps) 1.6 mN-m (300 pps)
    Holding Torque 1.4 mN-m (0 pps) 2.3 mN-m (0 pps) 2.6 mN-m (0 pps)
    Max. Continuous Response Frequency 560 pps 1100 pps 1500 pps
    Max. Starting Frequency 500 pps 900 pps 1000 pps
    Drive Mode Bipolar Drive
    Ambient Temperature 0℃~55℃
    Insulation Resistance 500VDC 100MΩ min
    Insulation Grade E

    Phase Sequence Excitation & Dimensions Diagram (Unit: mm)

    • 3V 0.2A Micro Stepper Motor (ATO-SM1519)
    Connector PIN Location
    PIN No. Color CCW←→CW
    (Seen from flange side)
    Phase
    1 Red ON - - ON A
    2 Blue - - ON ON B
    3 Yellow - ON ON - A
    4 Black ON ON - - B

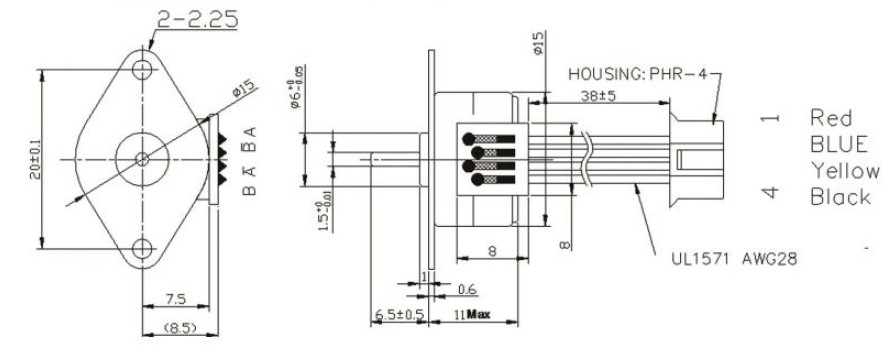

    Dimensions of Nema 6 Micro Geared Stepper Motor, 3V, 0.2A, 2 Phase

    • 5V 0.16A Micro Stepper Motor (ATO-SM1566)
    Connector PIN Location
    PIN No. Color CCW←→CW
    (Seen from flange side)
    Phase
    1 Brown - ON ON - A
    2 Black ON - - ON A
    3 White - - ON ON B
    4 Red ON ON - - B

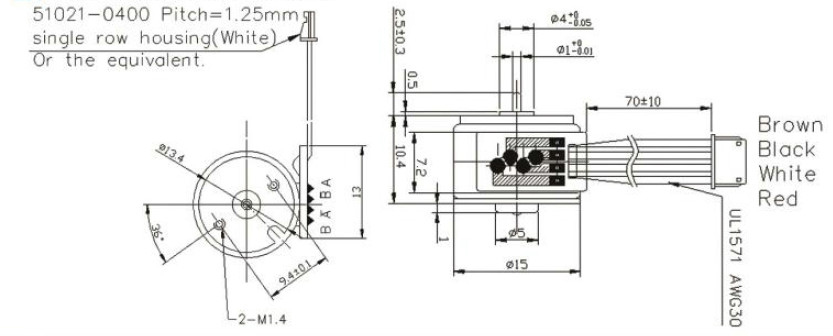

    Dimensions of Nema 6 Micro Geared Stepper Motor, 5V, 0.16A, 2 Phase

    • 5V 0.5A Micro Stepper Motor (ATO-SM1568)
    Connector PIN Location
    PIN No. Color CCW←→CW
    (Seen from flange side)
    Phase
    1 - ON - - ON A
    2 - - - ON ON B
    3 - - ON ON - A
    4 - ON ON - - B

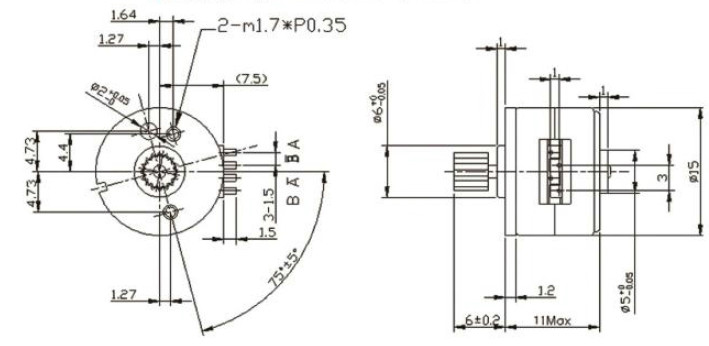

    Dimensions of Nema 6 Micro Geared Stepper Motor, 5V, 0.5A, 2 Phase



    Details

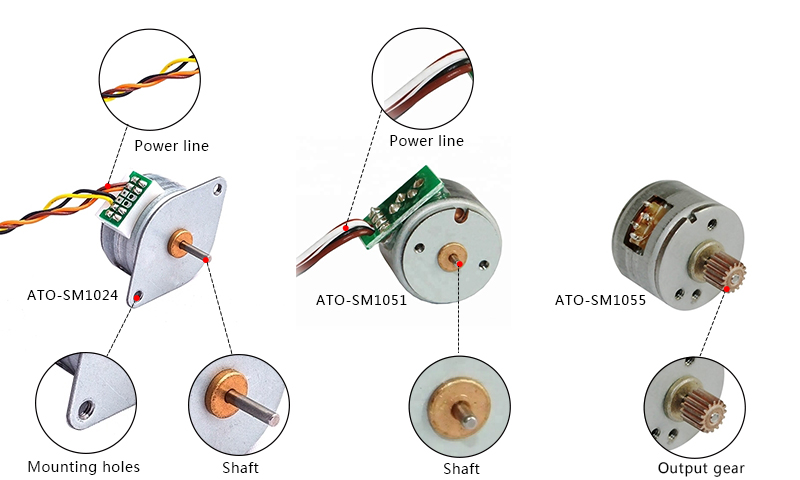

    Nema 6 Micro Stepper Motor Details

    Tips: How to install Nema 6 micro stepper correctly?

    1. Wire distribution of the Nema 6 micro stepper needs to be straightened and not bent, otherwise it will cause problems such as poor electrical conductivity inside the motor.
    2. In the process of installing Nema 6 micro stepper, pay attention to protect the DC motor from impact. When installing structural parts on the output shaft of DC motor, it is not allowed to directly hit or press on the output shaft.
    3. Do not forcefully rotate the gear from the shaft end of Nema 6 micro stepper, otherwise the gear will be damaged. When fixing the transmission structure with adhesive on the reducer output shaft, the bearing of reducer cannot be adhered.
