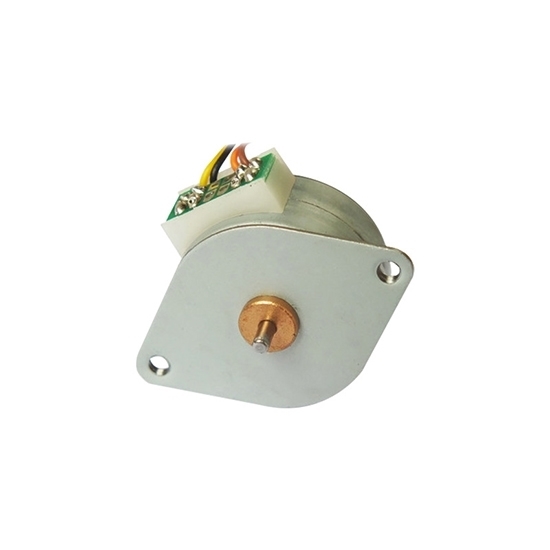

    Nema 10 Micro Stepper Motor, 6V/ 24V, 15 Degree, Bipolar

    $49.85
    Buy 2 phase micro stepper motor at affordable price. Stepping angle 7.5 degree or 15 degree. Rated voltage 6V or 24V for selection, corresponding current 0.2A/0.35A, resistance 10Ω/16Ω, holding torque 13/26 mN-m. Nema 10 miniature stepper motor with metal gear, bipolar drive.
    *
    SKU: ATO-MGSTEP-10624
    This product has a minimum quantity of 2
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Nema 10 micro stepper motor works at 2-phase DC 6V/ 24V. Rated current 0.2Amp/0.35Amp, resistance 10~18Ω, optional stepping angle 7.5°/15°. Miniature stepper motor for sale, with metal gear and bipolar drive, factory price.

    Specification Datasheet

    Model ATO-SM2501 ATO-SM2502
    Rated Voltage 6V 24V
    Rated Current 0.2A 0.35A
    Resistance 10Ω 16Ω
    Phase 2 Phase 2 Phase
    Stepping Angle 7.5° 15°
    Excitation Method 2 2
    Pull-in Torque 6.0 mN-m (200 pps) 12.5 mN-m (500 pps)
    Pull-out Torque 6.5 mN-m (700 pps) 16 mN-m (500 pps)
    Holding Torque 13.0 mN-m (0 pps) 26.0 mN-m (0 pps)
    Max. Continuous Response Frequency 650 pps 1300 pps
    Max. Starting Frequency 600 pps 650 pps
    Drive Mode Bipolar Drive
    Ambient Temperature 0℃~55℃
    Insulation Resistance 500VDC 100MΩ min
    Insulation Grade E

    Phase Sequence Excitation & Dimensions Diagram (Unit: mm)

    • 6V 0.2A Micro Stepper Motor (ATO-SM2501)
    Connector PIN Location
    PIN No. Color CCW←→CW
    (Seen from flange side)
    Phase
    1 Orange ON ON - - B
    2 Yellow - - ON ON B
    3 Brown - ON ON - A
    4 Black ON - - ON A

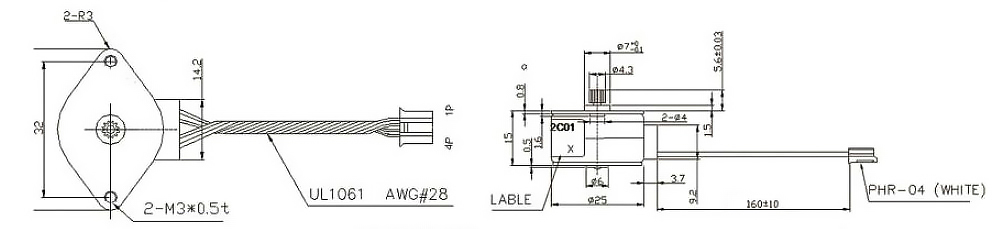

    Dimensions of Nema 10 Micro Geared Stepper Motor, 6V, 0.2A, 15 Degree

    • 24V 0.35A Micro Stepper Motor (ATO-SM2502)
    Connector PIN Location
    PIN No. Color CCW←→CW
    (Seen from flange side)
    Phase
    1 Orange ON ON - - B
    2 Yellow - - ON ON B
    3 Brown - ON ON - A
    4 Black ON - - ON A

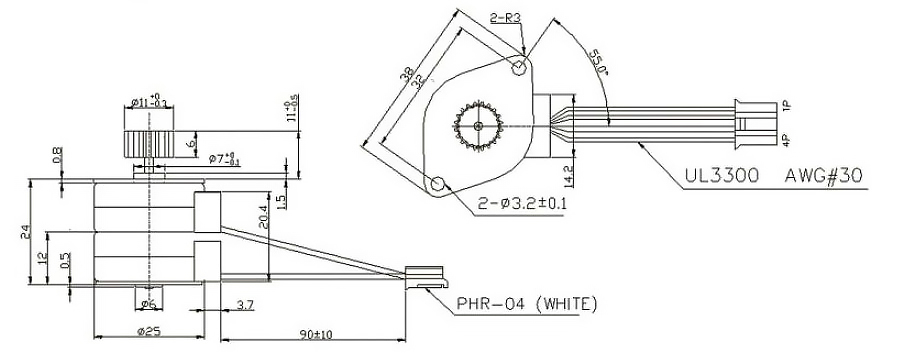

    Dimensions of Nema 10 Micro Geared Stepper Motor, 24V, 0.35A, 15 Degree

    Details

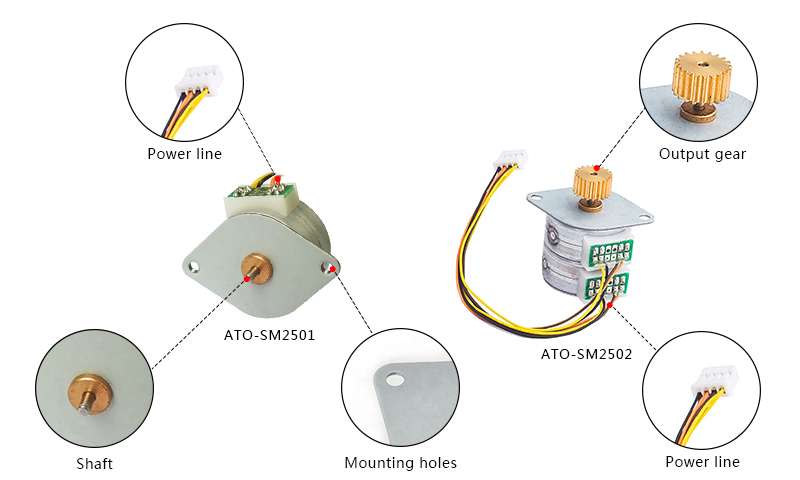

    Nema 10 Micro Stepper Motor Details

    Tips: The noise source of Nema 10 micro stepper motor.

    1. The noise caused by the internal electromagnetic of Nema 10 micro stepper motor. Tooth harmonic noise is caused by improper cooperation between stator, rotor eccentricity and slot, as well as rotor imbalance.
    2. Mechanical noise is a kind of frictional sound produced by mechanical parts of Nema 10 micro stepper motor such as bearings and bores.
    3. The noise and whistle noise caused by the air duct. Fan rotation causes the gas to pulsate periodically. The air current hits the solid object and makes a monotonous sound. When the fan blades roll, the surrounding air emits a kind of vortex sound, and its frequency spectrum is relatively wide.
