    Nema 23 Closed Loop Stepper Motor, 2 Phase, 4.2A, 1.2N·m
    Picture of Nema 23 Closed Loop Stepper Motor, 2 Phase, 4.2A, 1.2N·m
    Picture of Nema 23 Closed Loop Stepper Motor, 2 Phase, 4.2A, 1.2N·m
    Picture of Nema 23 Closed Loop Stepper Motor, 2 Phase, 4.2A, 1.2N·m
    Picture of Nema 23 Closed Loop Stepper Motor, 2 Phase, 4.2A, 1.2N·m
    Picture of Nema 23 Closed Loop Stepper Motor, 2 Phase, 4.2A, 1.2N·m

    Nema 23 Closed Loop Stepper Motor, 2 Phase, 4.2A, 1.2N·m

    5 out of 5 based on 4 reviews | Write a review
    $116.56

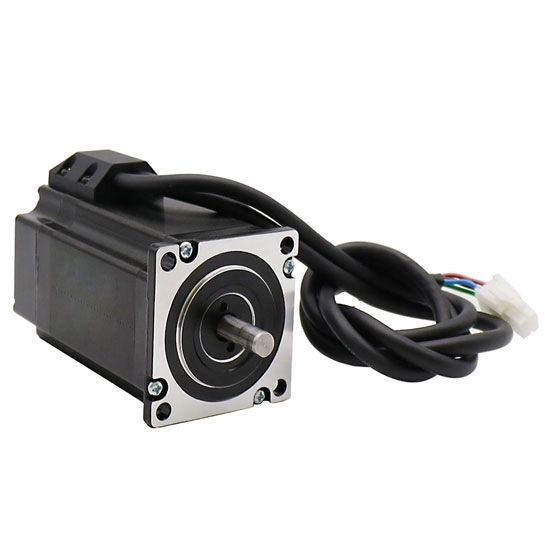

    High torque Nema 23 closed loop stepper motor with encoder, 2 phase 4 wire, 4.2 A, holding torque at 1.2N·m, step angle 1.8 degree, motor length 76mm, shaft diameter 8mm. Low price hybrid stepper motor is used for 3D printer, robot arm, CNC machine, drawing equipment and sewing machine.
    SKU: ATO-STEP-23M420
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Low cost bipolar closed loop stepper motor for sale, two phase, wire colors of blue, red, green and black, no lost step, low noise, high torque and high efficiency.

    Physical Specification

    • Model Number: ATO-FY56EM420BC1
    • Matched the Driver Model: ATO-FYDB506T
    • Flanged Size: 57 x 57mm (Nema 23)
    • Motor Length: 76mm
    • Shaft Diameter: 8mm
    • Number of Leads: 4 wire
    • Weight: 1kg

    Electrical Specification

    • Motor Type: Bipolar Closed Loop Stepper
    • Step Angle: 1.8°
    • Rated Current: 4.2A
    • Holding Torque: 1.2 N·m (120 N·cm, 170 Oz.in)
    • Phase Resistance: 0.44Ω
    • Phase Inductance: 1.4mH
    • Rotor Inertia: 280g·cm2

    Dimensions (Unit: mm)

    L=76mm

    Dimensions of Nema 23 2 Phase Closed Loop Stepper Motor

    Motor & Encoder Wiring Diagram

    Wiring Diagram of Nema 23 2 Phase Closed Loop Stepper Motor

    Speed-Torque Curve Diagram

    Speed Torque Curve Diagram of Nema 23 2 Phase Closed Loop Stepper Motor

    Details

    Details of Nema 23 closed loop stepper motor

    Tips: Precautions for cleaning stepper motors

    If the permanent magnet stepper motor adheres to a lot of dust, it may cause it to run inefficiently. Therefore, it is necessary to clean the stepper motor. The following are the issues that need to be paid attention to when cleaning the stepper motor.

    1. The cleaning must be carried out with the power supply cut off. Wrong cleaning will cause safety hazards to the best stepper motor, threatening the safety of the motor. Therefore, the power supply of the motor must be cut off before the cleaning can be performed.
    2. The stepper motor needs to be protected during cleaning. The purpose of cleaning the stepper motor is to restore its working state, but if there is a wrong operation during the cleaning, it will cause the motor to be damaged.
