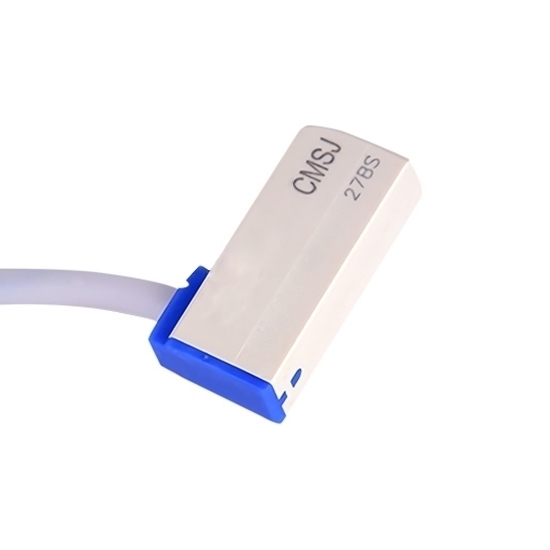

Magnetic Cylinder Sensor, 2-Wire

The cylinder sensor is mainly used to detect the position of the piston in the cylinder, and the user can directly install it in the cylinder to use. As a detection device, the sensor is the primary link to realize automatic control and  detection, and it can meet the various requirements of users for equipment information transmission, processing, storage, recording, display and control. Note: our minimum cart qty is 3.

Specification

Selection table

Dimension (Unit=mm)

Connection method

Tips: How does the magnetic switch automatically control the cylinder?
The 2-wire magnetic sensors of the cylinder, it only detects magnetic objects. The piston in the magnetic ring cylinder belongs to the belt. When the piston moves to the position of the reed switch, the magnetic field passes through the cylinder wall to make the switch close, so that the contact is turned on and the signal Pass to the control unit to realize the round-trip action.
