Joystick Switch, 4 way Self-locking

5 out of 5 based on 1 reviews | Write a review

$32.86

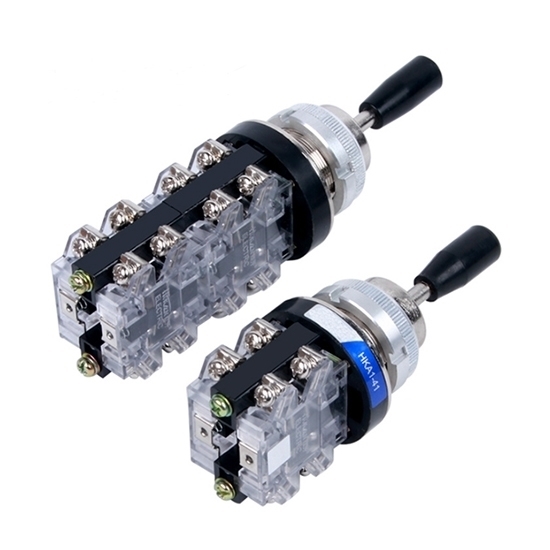

High quality joystick switch has 4NO/ 8NO self-locking two types can be chosen. The switch with 150V/ 250V/ 600V rated voltage, 15A/ 10A/ 4A rated current, 30mm hole diameter. Joystick switch is widely used in factory equipment, instrumentation, marine equipment, medical equipment, CNC lathes, and oil extraction.

Model *

SKU: ATO-JS-HKA1-42

This product has a minimum quantity of 3

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Low price joystick switch with 200Ω contact resistance, 10-15A operating current, 5-20N operating pressure.

Specification

Model	ATO-HKA1-42-1	ATO-HKA1-42-2
Type	4 way self-locking/ 4NO	4 way self-locking/ 8NO
Rated voltage	150V/ 250V/ 600V
Rated current	15A/ 10A/ 4A
Hole diameter	30mm
Operating current	10-15A
Contact	NO
Insulation voltage	600V
Insulation resistance	100MΩ
Operating pressure	5-20N
Contact resistance	200Ω
Operating temperature	0℃~85 ℃
Operation method	Emergency
Installation size	22mm
Panel thickness	2-5mm
Reset method	Manual control
Certificate	CCC
Warranty	12 months

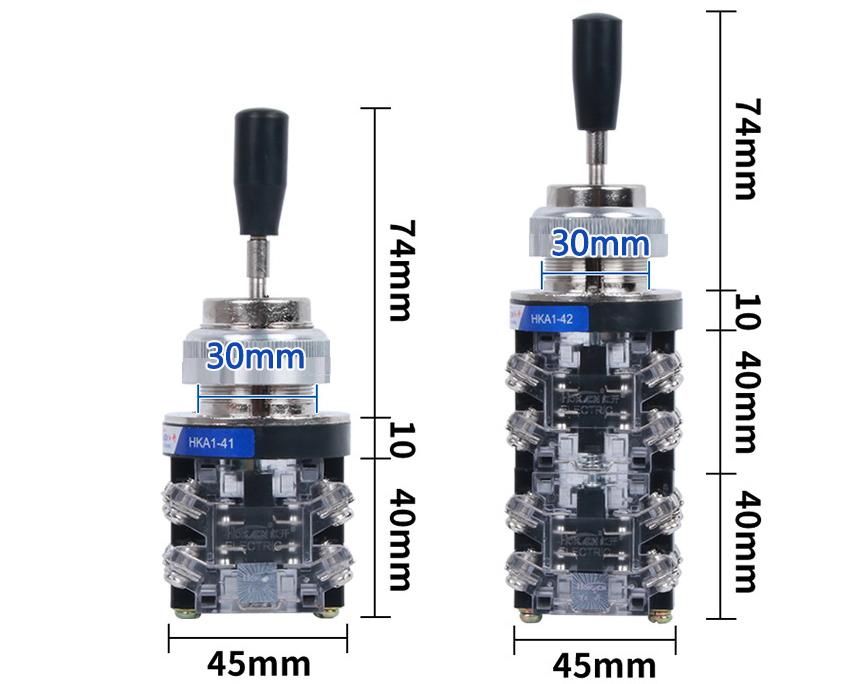

Dimension (mm)

Tips: Working Principle of Joystick Switch.

When the rocker potentiometer is used as a current regulator in a DC circuit, a current will flow through the sliding arm of the rocker potentiometer. At this time, the resistance value will increase abnormally due to anodization. In this case, it is recommended to connect the terminal connecting the resistor body to the negative pole and the sliding arm to the positive pole.

If the DC current directly passes through the rocker potentiometer, the anode of the rocker potentiometer will be oxidized and damaged, which will increase the impedance of the rocker potentiometer. Therefore, it is best to connect the negative electrode of the current to the terminal in contact with the carbon diaphragm. , the positive pole is connected to the terminal of the brush (contact piece of the rocker potentiometer).
